Extreme Cooling
with Vortex A-RGB
Keep your components cool and running at peak performance with the 4 Vortex A-RGB fans. The optimized airflow, customizable A-RGB lighting, and wireless daisy-chainable design of the Vortex fans create a symphony of color and efficiency.

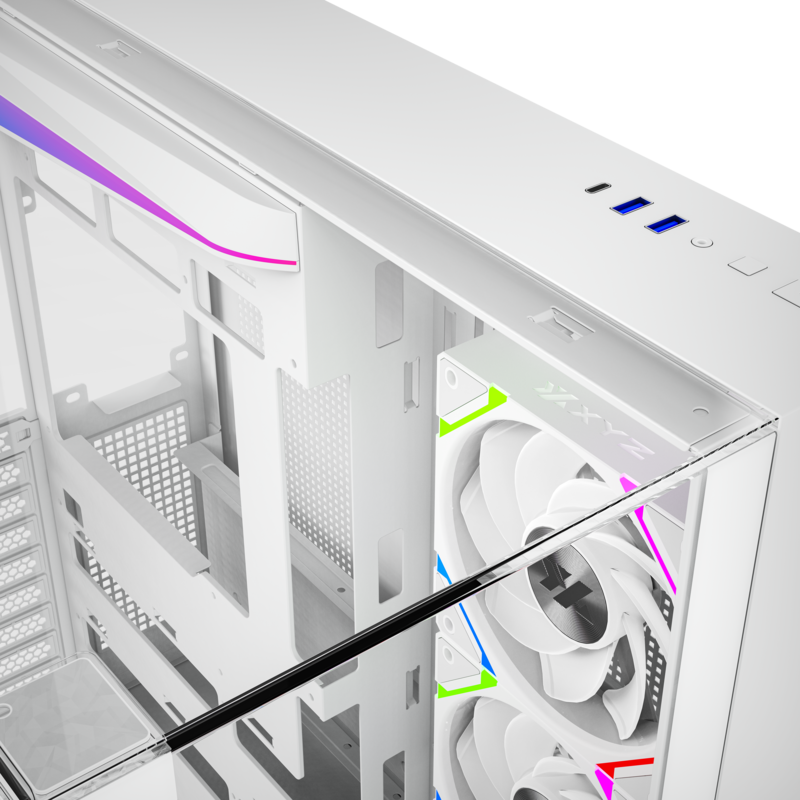

Panoramic Viewing Experience
Showcase your high-end components in all their glory with the Tesseract’s triple tempered glass panels on the front, side, and top. Enjoy an unobstructed view of your hardware and create a stunning centerpiece for your gaming setup.
USB Type-C Gen 2 Connectivity
Access your high-speed devices with ease thanks to the conveniently located USB Type-C port on the top I/O panel.
Back free routed MB compatible
Tesseract is designed to be compatible with the latest motherboards without front cables, simplifying the mounting process and reducing cable clutter.
Technical Specifications

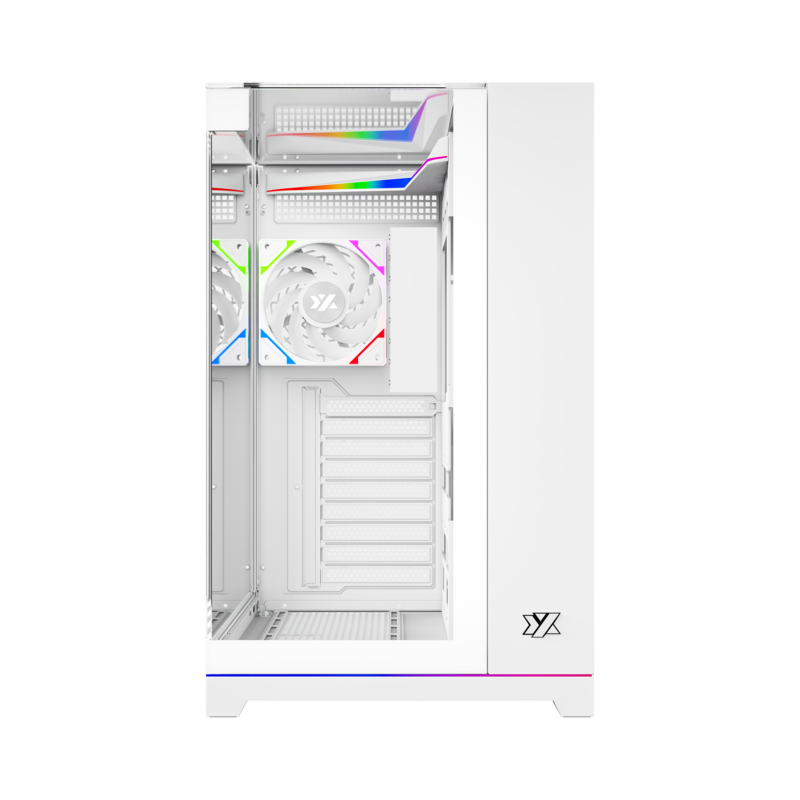

XYZ TESSERACT
I/O: 2 x USB 3.0 + USB Type-C GEN 2 (top) + HD Audio
Left Side Panel: Tempered glass with clip
Right Side Panel: Metal with ventilation holes
Material: SPCC 0.7 mm | 0.8 mm , End Finish
PSU Position & Type: Bottom, ATX

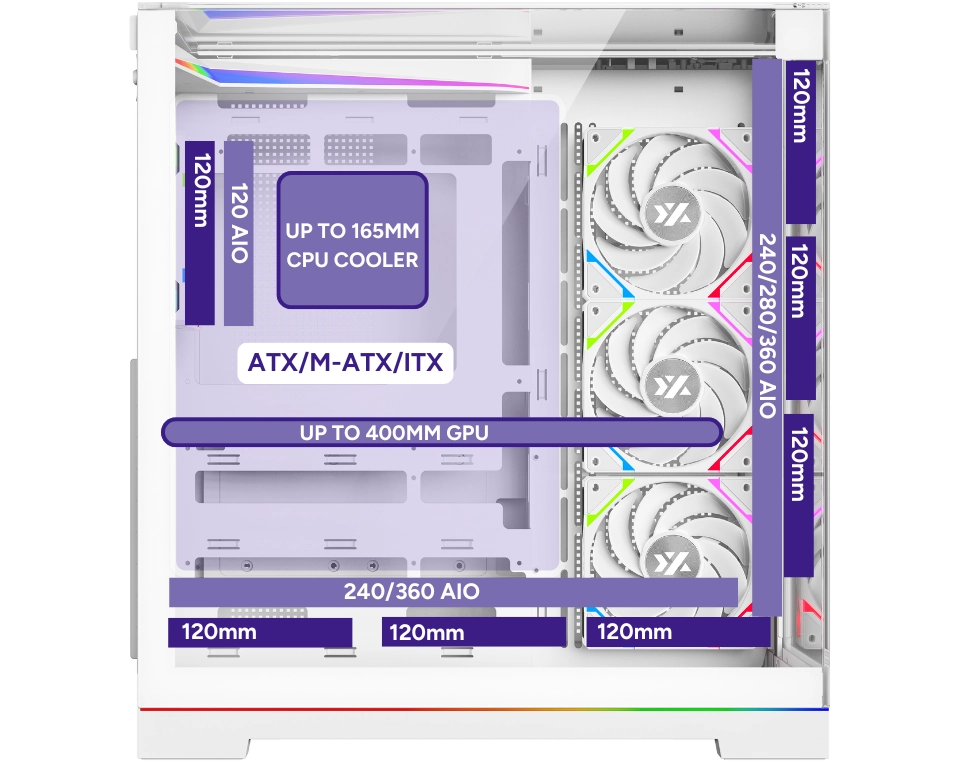

Motherboard Support: ATX / M-ATX / ITX (with rear plug support)
Fan Support:
3 x 120mm on motherboard bracket
1 x 120mm rear
3 x 120mm bottom
Fans Included: 4 x XYZ VORTEX A-RGB (3 reverse airflow (PRO), 1 regular airflow)
Integrated ARGB Controller: YES
Water Cooling Support:
360/280/240mm on motherboard bracket
360/240mm bottom
120mm rear
Drive Bays:
1 x 3.5″ HDD
2 x 2.5″ SSD
PCI Expansion Slots: 9
Max GPU Length: 400mm
Max CPU Cooler Height: 165mm
Magnetic Dust Filter: Bottom
Dimensions: 424 x 285 x 455mm
Avaliable colors:
White
SKU: X-CS-TESSERACT-W
EAN: 6978262010904
Black
SKU: X-CS-TESSERACT-B
EAN: 6978262010898
VORTEX A-RGB FANS
Bearing: FDB
Voltage: 12V (rated), 10.8-13.2V (operating), 5V (startup)
Current: 0.20A (rated), 0.21A (stall)
Power Consumption: 1.80W
Speed: 600-2000 RPM
Airflow: 62.7 CFM
Static Pressure: 2.68 mm-H₂O
Noise: 18.5-32.0 dB(A)
Lifespan: 60,000hrs (25°C)
Blades: 9
Poles: 4
