XYZ AIRWAVE X

Affordable Performance and Style

The XYZ AIRWAVE X is a high-end solution designed for enthusiasts who prioritize customization and performance. With its elegant design and robust build, this case offers the perfect balance of aesthetics and functionality. Equipped with tempered glass panels and customizable RGB lighting, the AIRWAVE X is both powerful and visually stunning.

Outstanding Design and Efficient Ventilation
The AIRWAVE X combines a minimalist design with high-quality tempered glass panels, offering a panoramic view of your internal components. Its mesh front chassis ensures optimal airflow, keeping your components at ideal temperatures even during intense gaming sessions.
Customizable RGB Lighting
Featuring 120mm Pulsar fans with RGB lighting, you can personalize your system’s aesthetics to your preference. A wide range of lighting effects and synchronization with other compatible RGB components create an immersive and visually striking atmosphere.
Unmatched Performance
Designed for enthusiasts, the AIRWAVE X provides a spacious interior to build a high-performance system with cutting-edge components. It supports long graphics cards and large CPU coolers, offering the flexibility needed to achieve peak performance.
Compact Size & Ample Compatibility
The AIRWAVE X supports a wide range of motherboards, from ATX to Mini-ITX. It also provides multiple mounting locations for SSDs and HDDs, as well as support for liquid cooling radiators in the top and rear sections.
Versatile Connectivity
Easily connect all your devices via the front panel, which includes high-speed data ports and HD audio connectors for seamless external device integration.

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

Outstanding Design and Efficient Ventilation

The AIRWAVE X combines a minimalist design with high-quality tempered glass panels, offering a panoramic view of your internal components.

Its mesh front chassis ensures optimal airflow, keeping your components at ideal temperatures even during the most intense gaming sessions.

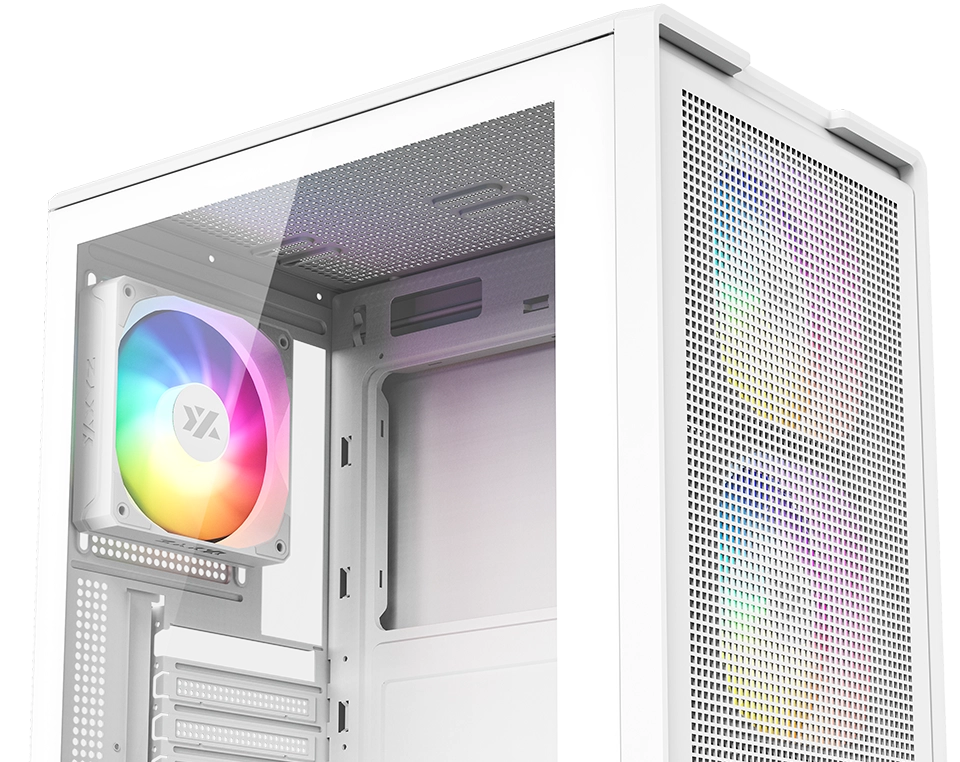

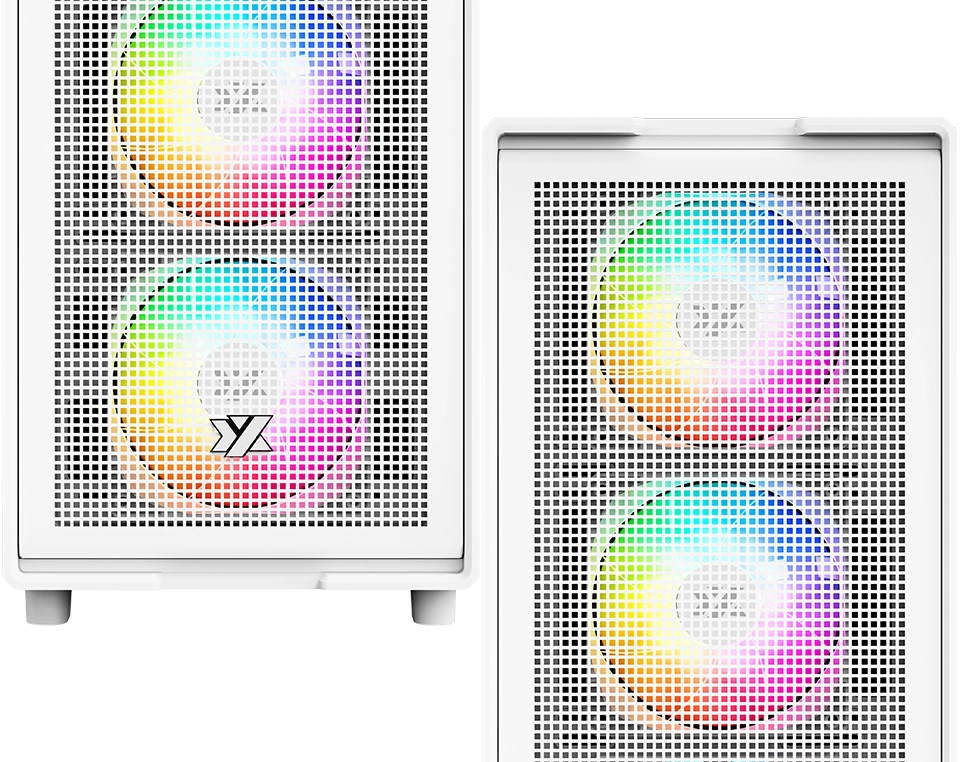

Customizable RGB Lighting



Featuring four 120mm Pulsar fans with RGB lighting, you can personalize your system’s aesthetics to your liking. The wide range of lighting effects and synchronization with other compatible RGB components create an immersive and visually striking atmosphere.

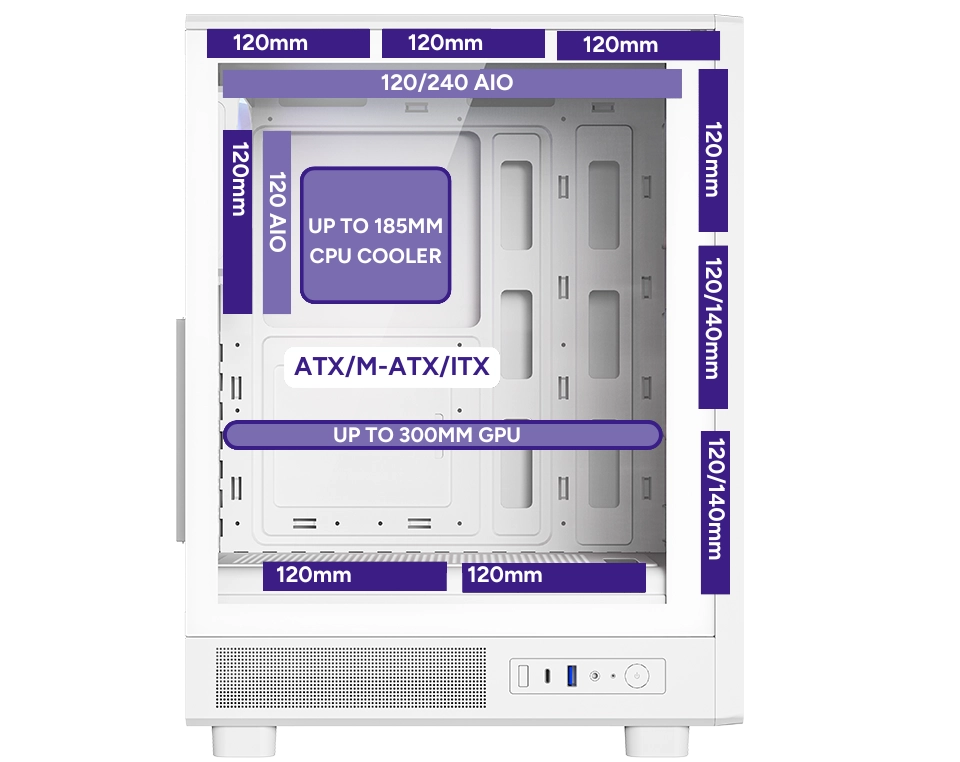

Compact size & ample compatibility

The Airwave X supports a wide range of motherboards, from ATX to Mini-ITX. It also offers different places for SSD & HDD plus up to a 240 liquid coolers in the top and 120 in the rear part.

Unmatched Performance

Designed for enthusiasts, the AIRWAVE X provides a spacious interior to build a high-performance system with cutting-edge components. It supports graphics cards up to 300mm and CPU coolers up to 185mm, offering the flexibility you need to achieve peak performance.

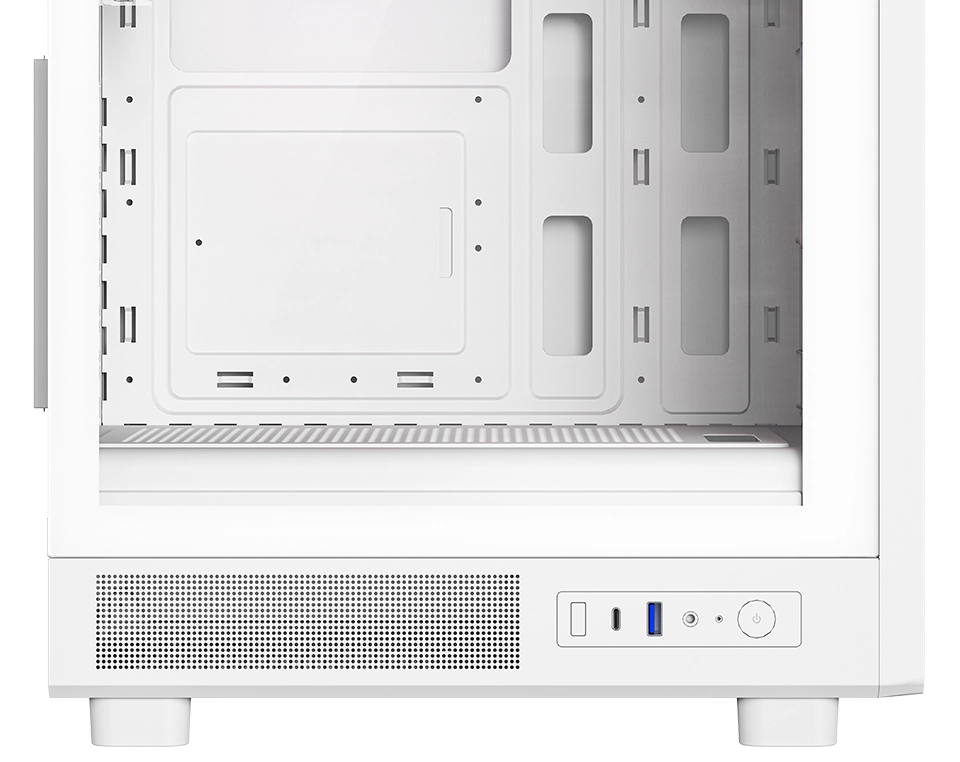

Versatile Connectivity

Easily connect all your devices with the front panel, which includes a high-speed USB Type-C port, two USB 3.0 ports, and HD audio connectors.

Technical Specifications

XYZ AIRWAVE X

Dimensions
Structure: 330 x 218 x 445 mm
Chassis: 352 x 218 x 465 mm
Packaging: 517 x 277 x 418 mm
Materials
Main Frame: 0.45mm SPCC steel.
Panels: Sliding tempered glass (left side) and metal panel (right side).
Weight
Net Weight: 3.5 kg
Gross Weight: 4.4 kg
Compatibility
Motherboards: ATX, Micro-ATX, Mini-ITX.
Graphics Card: Up to 300mm in length.
CPU Cooler: Up to 185mm in height.
Power Supply (PSU): Up to 200mm in length.
Expansion Slots: 7

Cooling System
Pre-installed Fans: 4 x 120mm Pulsar fans with A-RGB PWM lighting.
Fan Support:
Front: Supports 3 x 120mm or 2 x 140mm fans.
Top: 3 x 120mm fans.
Rear: 1 x 120mm fan.
Bottom: 2 x 120mm fans.
Liquid Cooling:
Top: Supports up to 240mm radiators.
Rear: Supports 120mm radiators.
Storage
Drive Bays:
2 x 3.5-inch HDD bays.
1 x 2.5-inch SSD bay.
Dust Filters
Location: Bottom of the chassis.
I/O Panel
Ports:
1 x USB 3.0
Type-C Gen 2
HD audio connectors (input and output)
Reset/RGB control button

Avaliable colors:
White
SKU| X-CS-AIRWAVEX-W
EAN| 6978262011321
Black
SKU| X-CS-AIRWAVEX-B
EAN| 6978262011314

PULSAR A-RGB FANS

Dimensions: 120 x 120 x 25 mm
Bearing Type: Rifle Bearing
Voltage:
Nominal: DC 12V
Operating: 10.8 ~ 13.2V
Starting: DC 5V MAX
Current:
Rated: 0.28A ±10% MAX
Tag: 0.28A ±10% MAX
Blocking: 0.30A ±10% MAX
Power Consumption: 3.36W ±10% MAX
Rotation Speed: 600-1800 ±10% RPM
Maximum Air Flow: 78.64 CFM (ft³/min)
Max. Static Pressure: 1.78mm-H₂O
Max. Noise Level: 36dB(A)
Min. Noise Level: 18.5dB(A)
Service Life: 50,000 hours at 25°C
Number of Blades: 9
Number of Poles: 4
