XYZ THERMAL ZWIE M100L

MAX COOLING, MAX PERFORMANCE
— LIQUID METAL THERMAL ZWIE, DESIGNED FOR GAMERS, BUILT FOR PERFORMANCE

THERMAL ZWIE Liquid Metal is a pure‑metal thermal interface material for hardcore overclocking enthusiasts. Unlike conventional thermal paste, it will not dry out or degrade under sustained high temperatures. It helps your processor hold peak performance and mitigate thermal throttling.

⚠️ NOTICE: Liquid metal is electrically conductive and corrodes aluminum. Keep it away from circuit boards. Strictly control application amount to avoid leakage and short‑circuit damage to hardware.

•Max thermal conductivity
Pure liquid‑metal alloy

•Zero thermal throttling
Helps avoid thermal performance drop

•Sustained peak output
Stable performance under heavy load

• Pump‑out resistant
No drying, no degradation

•Extreme overclocking
Built for hardware enthusiasts

VIEW SPECIFICATIONS FIND RETAILER

Max Thermal Conductivity



Pure liquid‑metal alloy thermal interface material
Helps minimize thermal‑induced performance throttling

Built for Extreme Overclocking

Stable thermal performance under heavy‑load conditions
Engineered for hardcore performance enthusiasts

Steps 1

Clean the CPU surface of dust and debris.
Install the needle applicator tip onto the syringe.

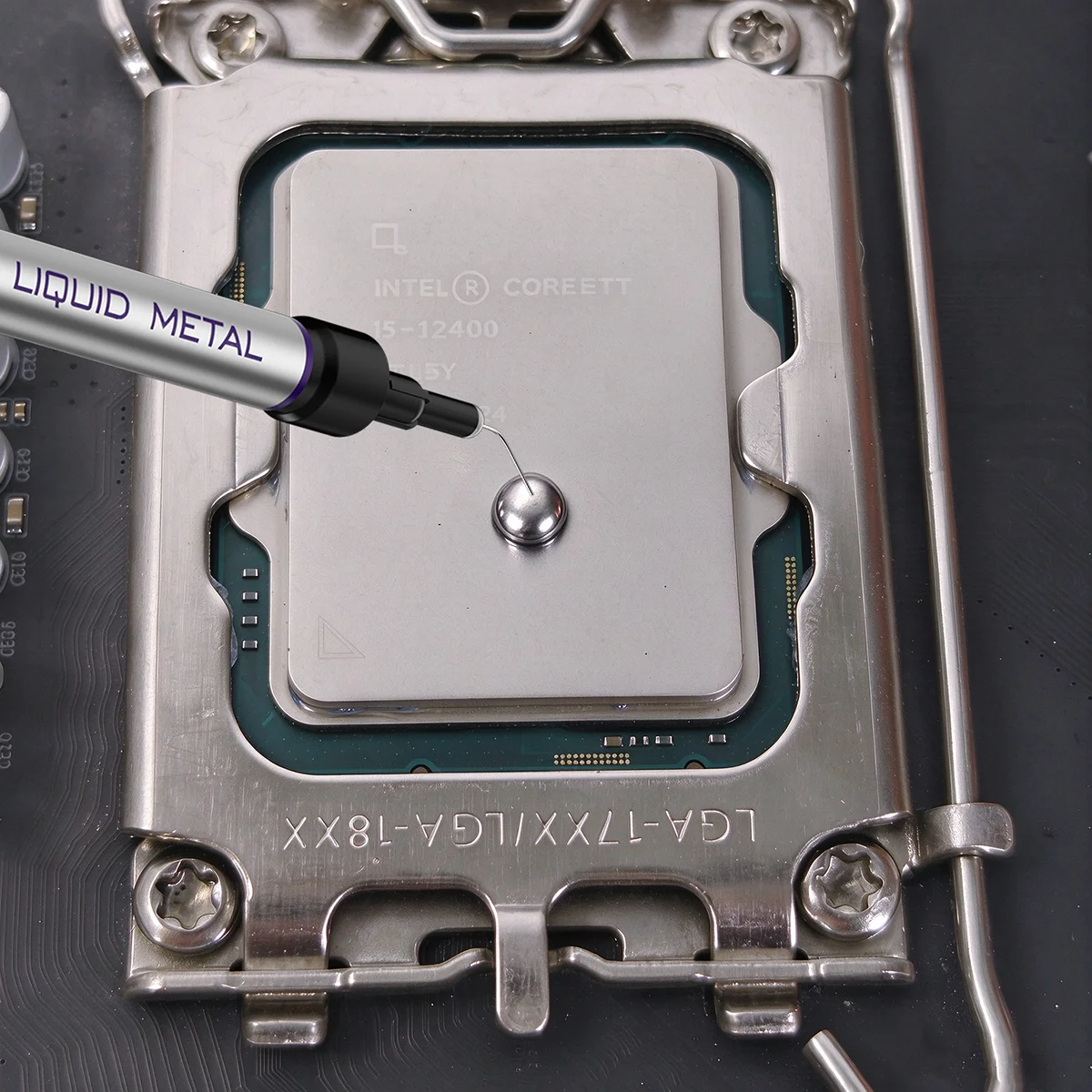

Dispense one pinhead-sized droplet on CPU IHS.
Do NOT over-apply to avoid leakage.

Steps 2

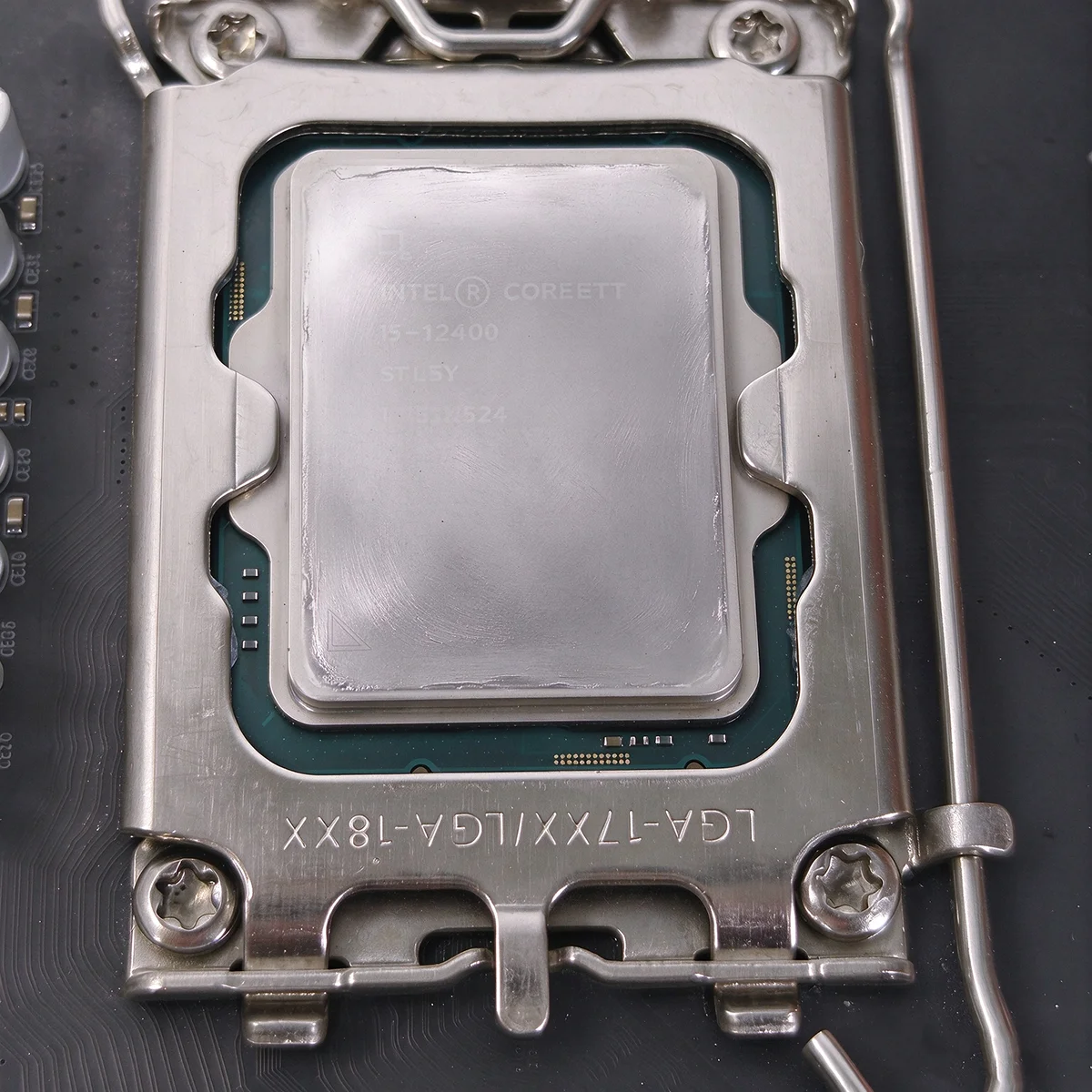

Use the included brush to spread the liquid metal evenly.
Use the swab to wipe away any excess liquid metal.

Install the cooler:
Do NOT twist or slide the cooler base sideways.
Cross-tighten mounting screws evenly.

Keep liquid metal away from PCB and electronic components to prevent short circuit.

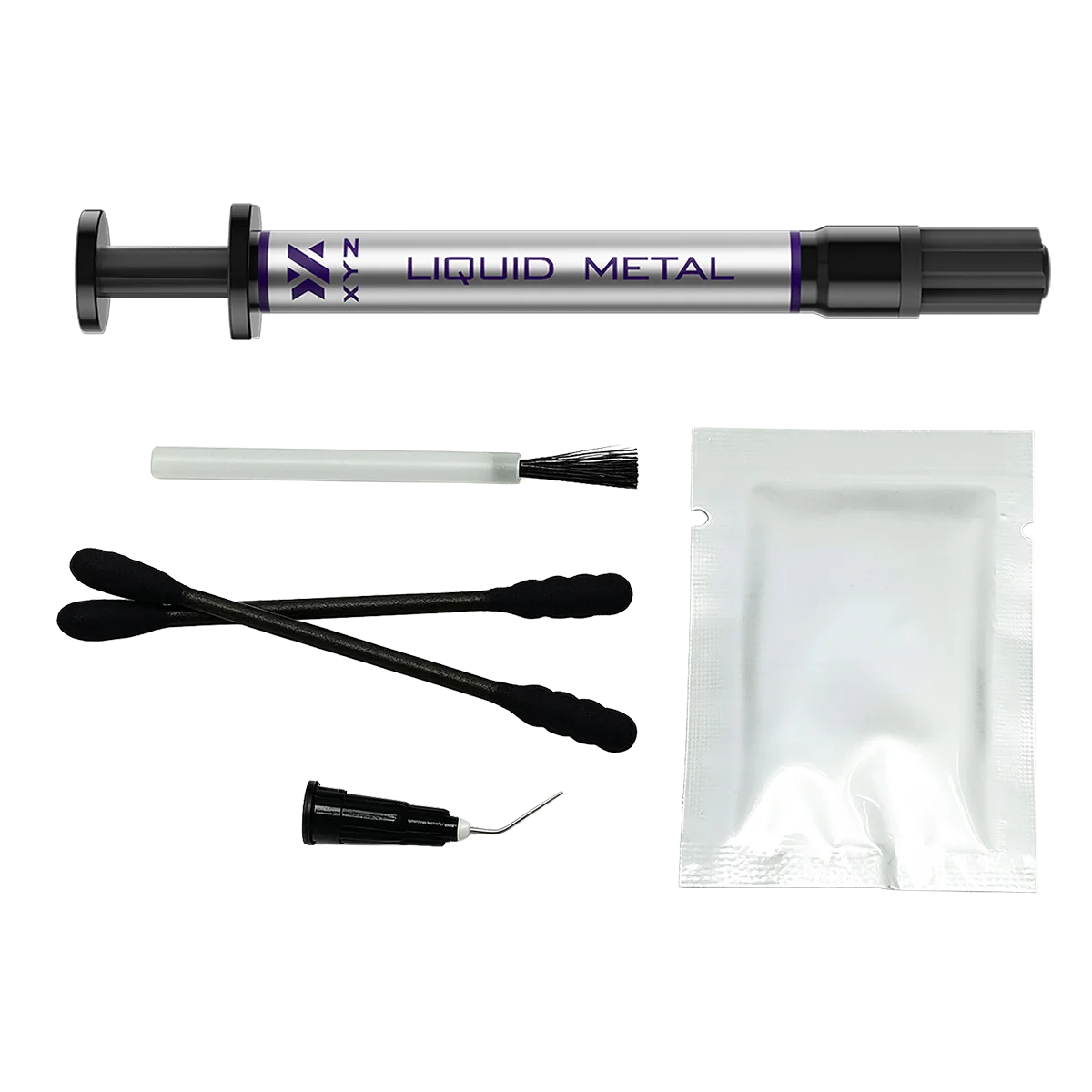

WHAT’S INCLUDED IN THE BOX

Accessories Included:

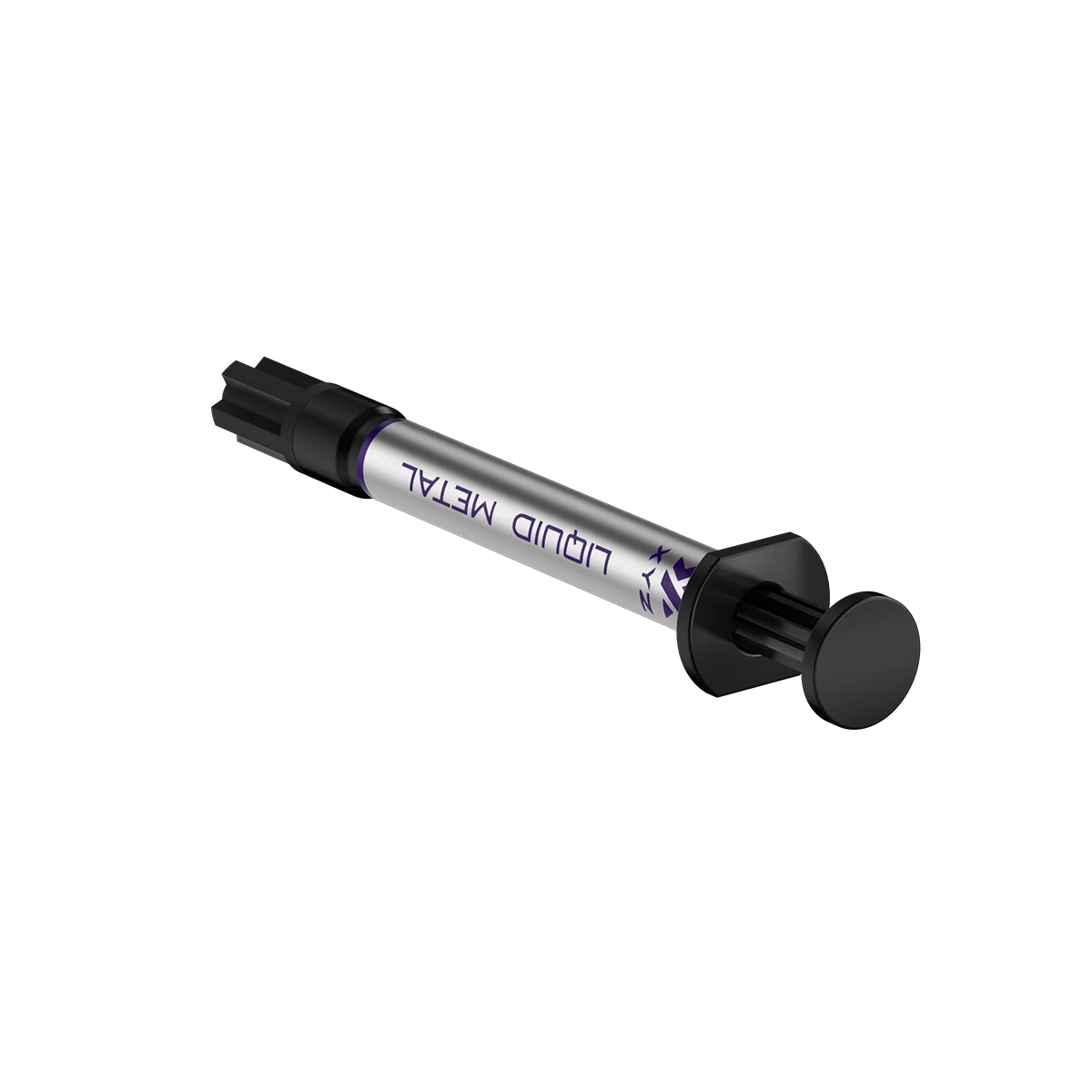

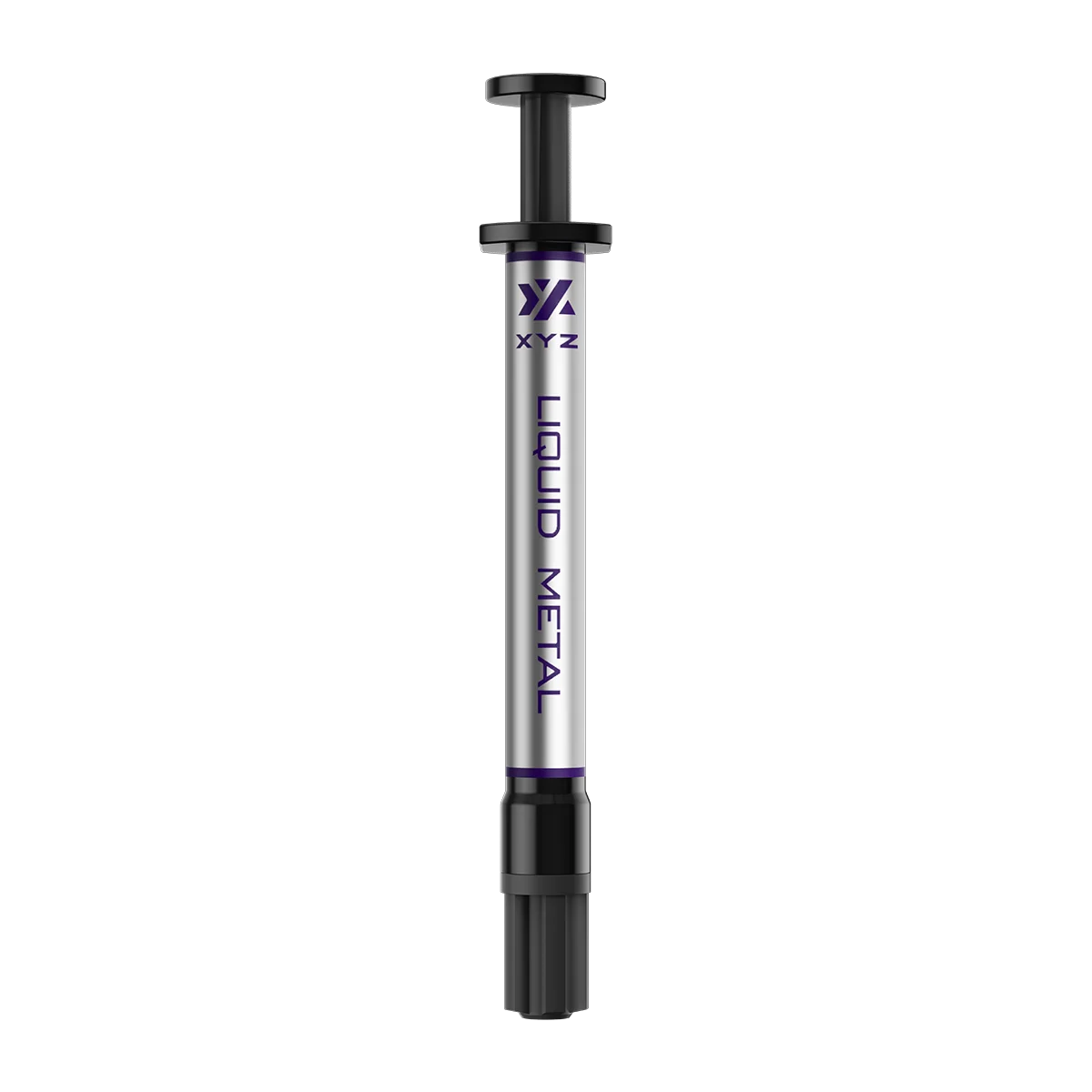

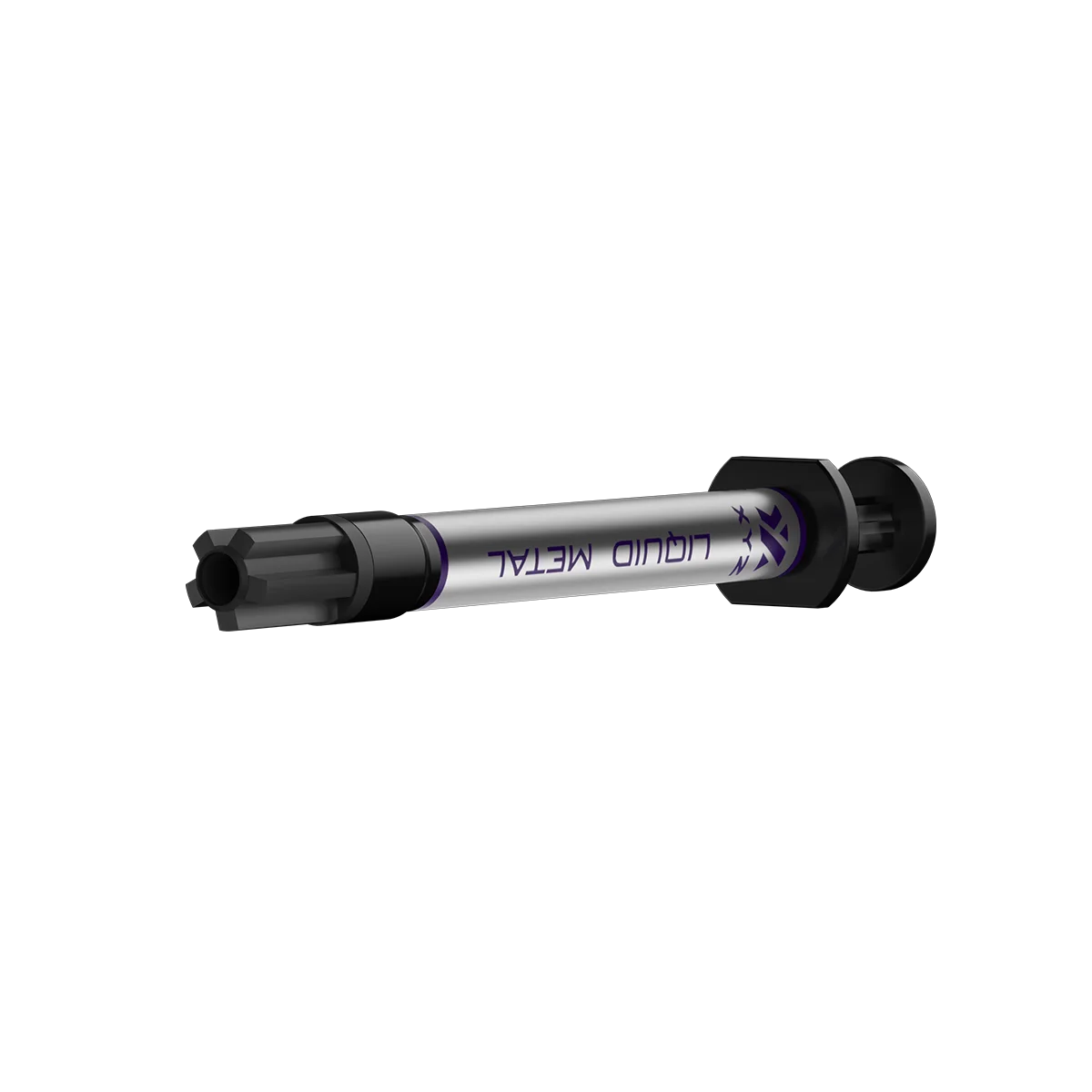

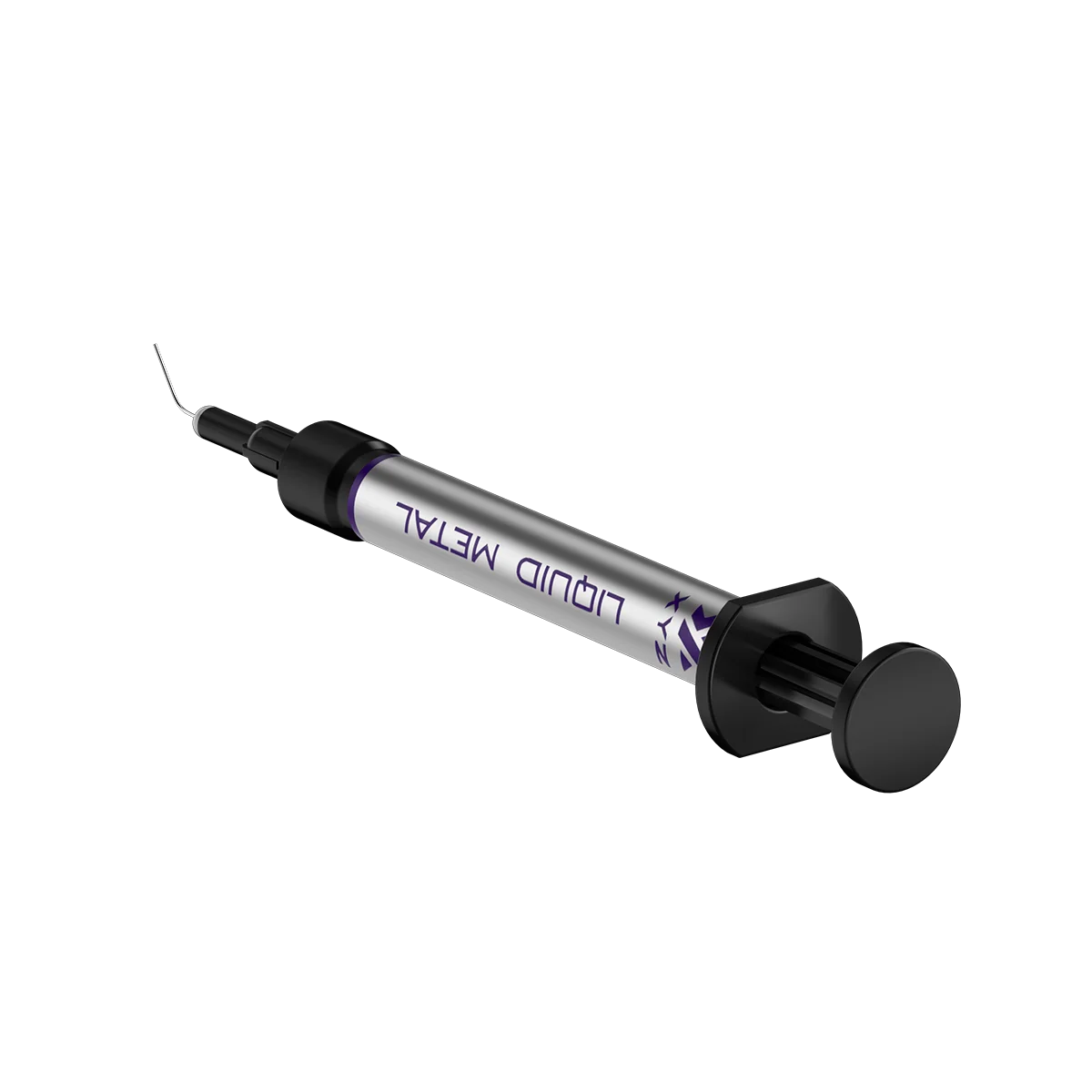

Liquid Metal Syringe,

Needle, Brush,

Swab,

Alcohol Pad,

User Manual.

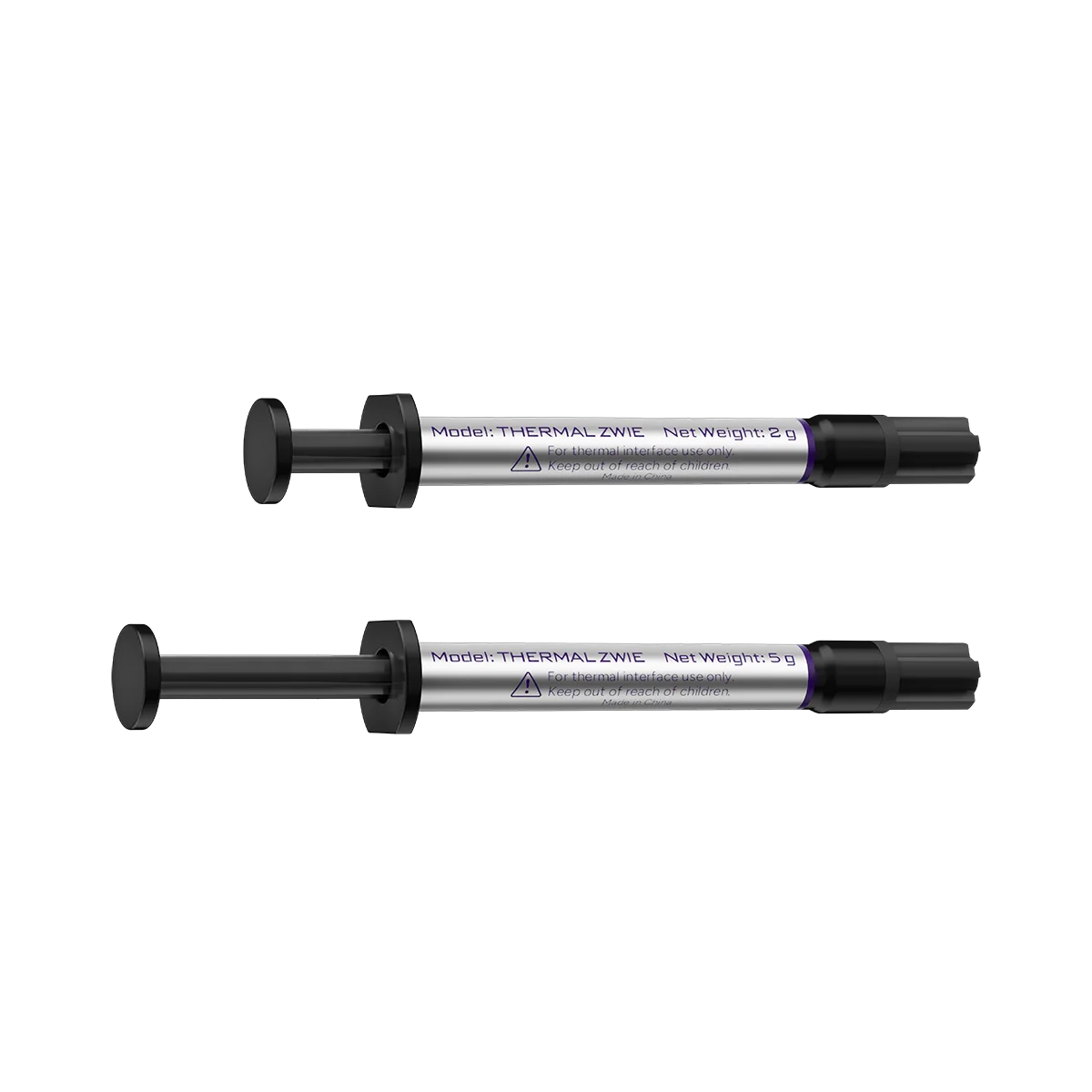

TWO WEIGHT OPTIONS AVAILABLE

Choose between 2g and 5g syringes to match your overclocking & PC build needs.
• X-Thermal Zwie-M100L 2g: Ideal for single CPU/GPU installation, compact & portable
• X-Thermal Zwie-M100L 5g: Suitable for multiple builds or large heat spreader applications
⚠️ Liquid metal requires minimal dosage for each installation.

Technical Specifications

XYZ THERMAL ZWIE M100L

XYZ Model: X‑Thermal Zwie‑M100L
Net Weight Option: 2 g, 5 g
Color: Bright Silver
Thermal Conductivity: 52 W/m·K (Test Standard: ASTM D5470)
Density @25 °C: 6.2 g/cm³ (Test Standard: ASTM D792)
Operating Temperature Range: 3 °C ~ 200 °C
Weight Loss @150 °C, 24 h: ＜0.01 %
Electrical Conductivity: 3.1 × 10⁶ ~ 3.4 × 10⁶ S/m
Resistivity @25 °C: 2.94 × 10⁻⁷ ~ 3.23 × 10⁻⁷ Ω·m
Specific Heat Capacity @25 °C: 0.29 ~ 0.31 J/(g·K)
Thermal Diffusivity @25 °C: 2.6 × 10⁻⁵ ~ 2.9 × 10⁻⁵ m²/s
Boiling Point: 1900 °C ~ 2100 °C
Volume Expansion Coefficient (-10 ~ 100 °C): 1.15 × 10⁻⁴ ~ 1.25 × 10⁻⁴ K⁻¹
Solubility: Insoluble in water and most organic solvents
Recommended Coating Thickness: 12 ~ 18 μm

TYPICAL APPLICATIONS
Gaming PCs & workstations, CPUs, GPUs, overclocking rigs, high‑performance servers, power electronics, LED modules, routers and networking hardware, AV electronics, other components requiring ultra‑high‑performance liquid‑metal thermal interface material.

APPLICATION GUIDANCE
Clean CPU / GPU IHS surface completely before application. Dispense only one pinhead‑size droplet of X‑Thermal Zwie‑M100L liquid metal. You may spread it thinly with the supplied brush. Keep coating within 12‑18 μm recommended thickness.
Do NOT over‑apply, avoid any leakage onto circuit boards.
NOT compatible with aluminum / aluminum‑alloy cooler bases. Only use with copper or nickel‑plated copper coolers.
Follow hardware manufacturer mounting procedure; cross‑tighten screws evenly. Do not twist or slide cooler base sideways during installation.

POSITIONING
Designed for gamers, built for extreme overclocking performance. Pure liquid‑metal alloy thermal interface material for advanced PC enthusiasts.

DISCLAIMER
All technical values are typical laboratory test results for X‑Thermal Zwie‑M100L. Real‑world performance varies with application thickness, mounting pressure, surface condition and operating environment.
This liquid‑metal alloy is electrically conductive and will corrode aluminum materials. End‑user shall assess product suitability and bear all risks of hardware damage caused by improper handling, overflow or leakage. Manufacturer accepts no liability for hardware damage.

Available Colors:

2 g
SKU | X-Thermal Zwie-M100L-2G
EAN | 6978262013097

5 g
SKU | X-Thermal Zwie-M100L-5G
EAN | 6978262013103

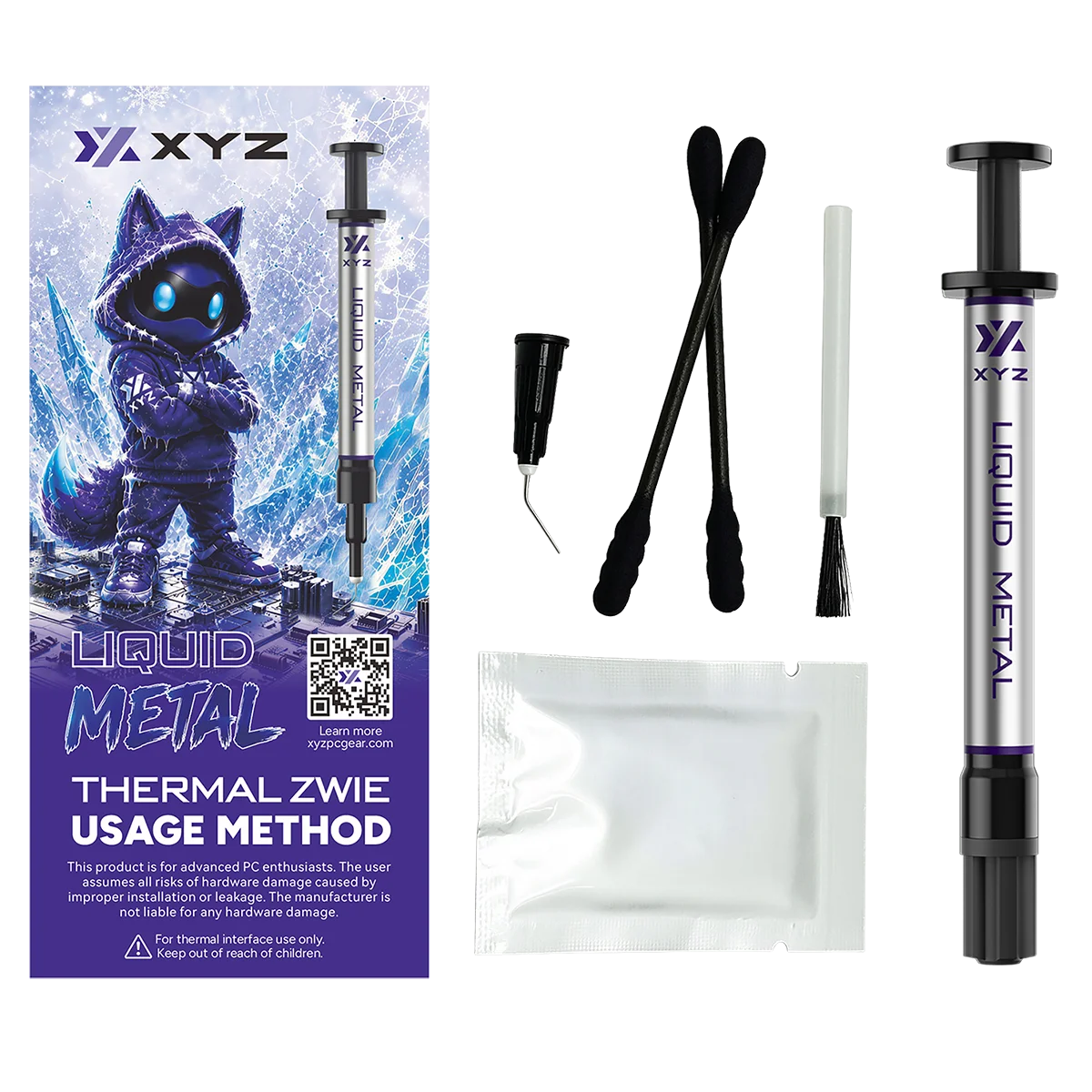

Package Contents

– Liquid Metal Syringe ×1
– Needle ×1
– Brush ×1
– Swab ×1
– Alcohol Pad ×1
– User Manual ×1
