XYZ RS GT

Flex Foldable Racing Simulator

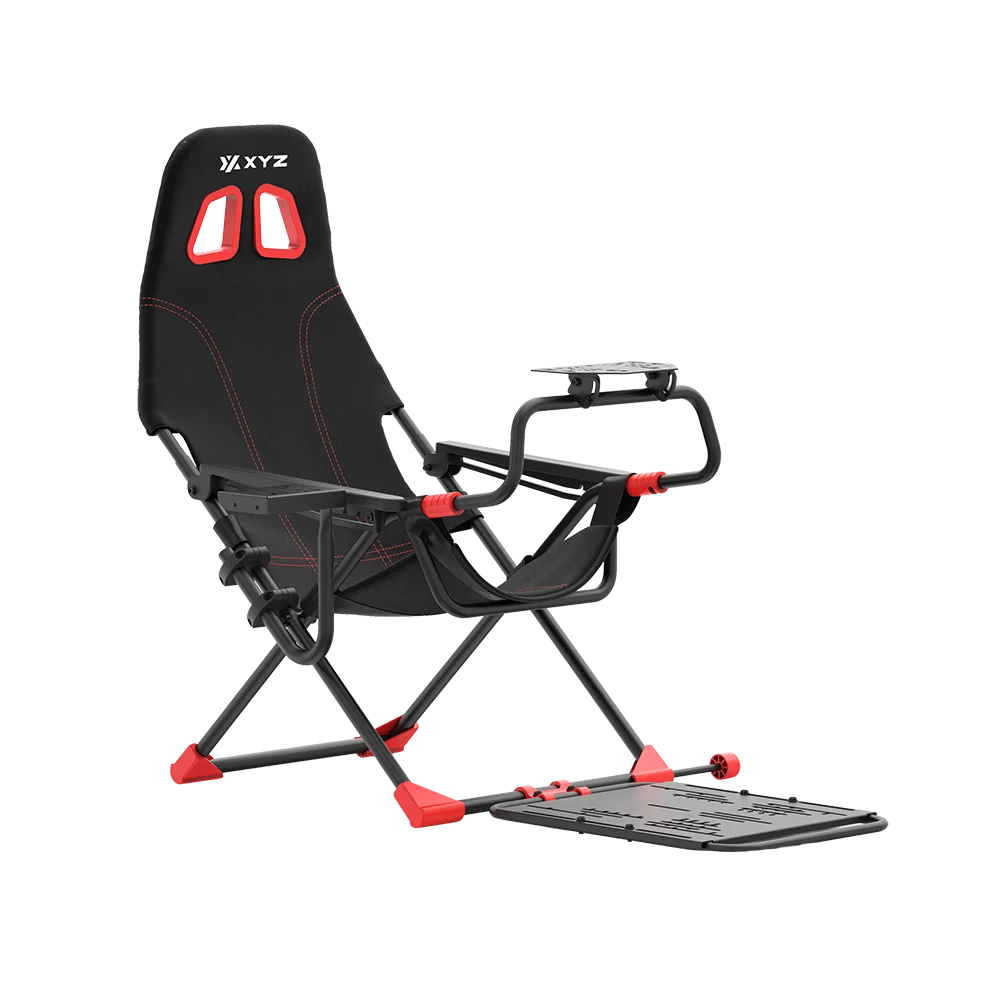

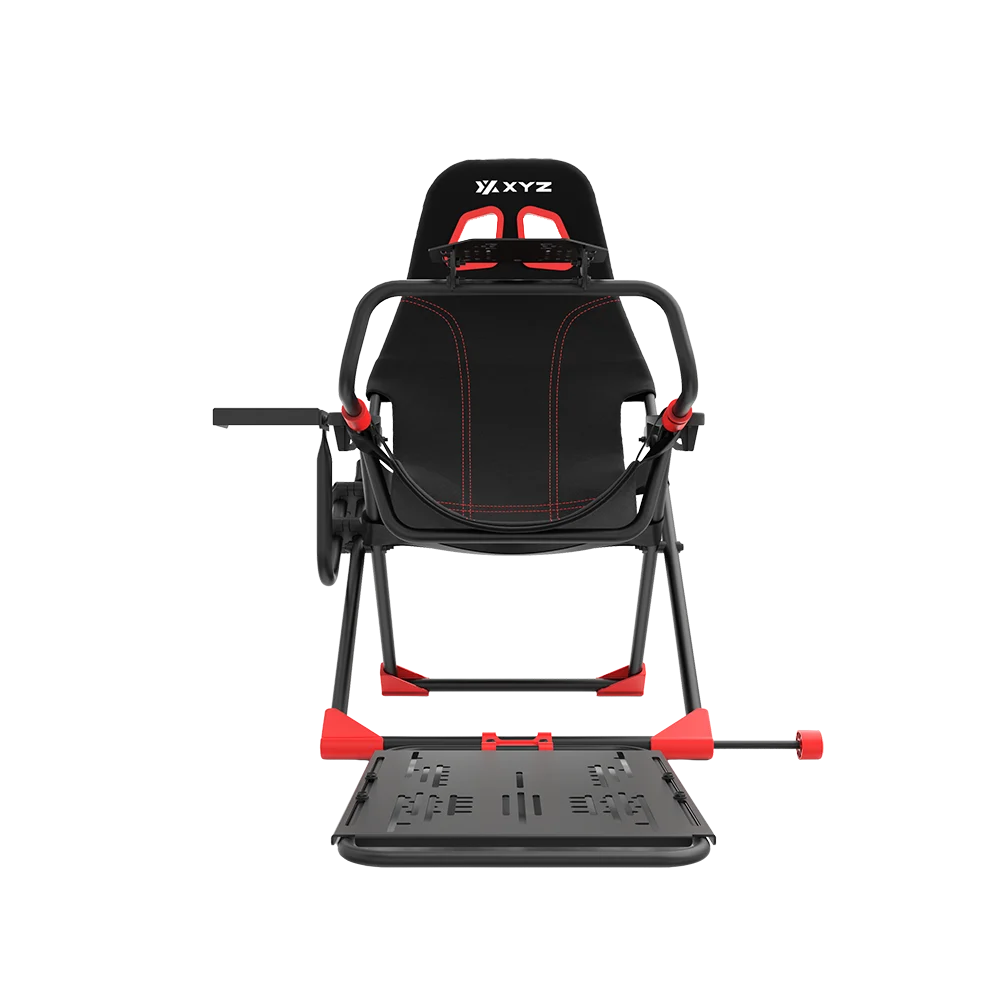

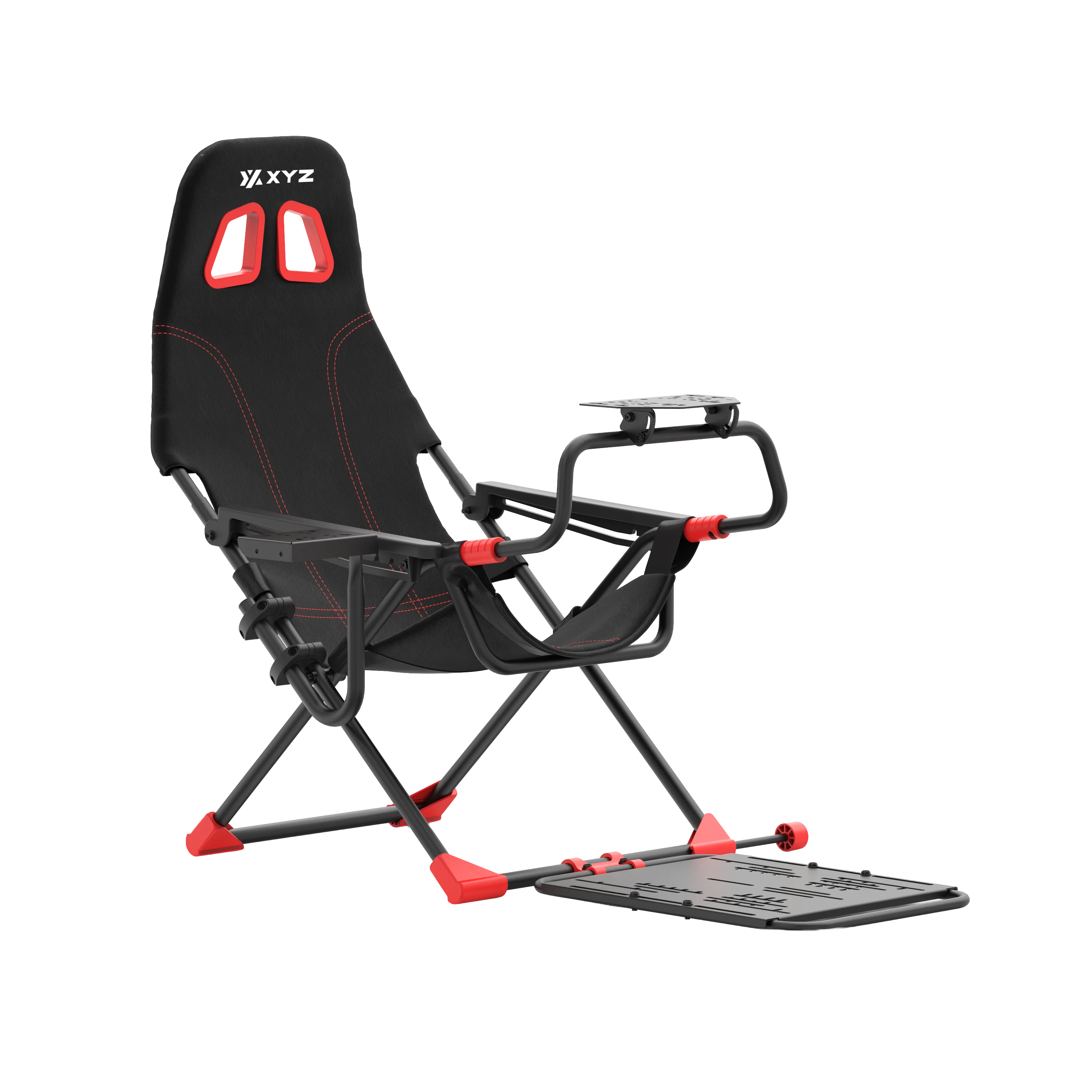

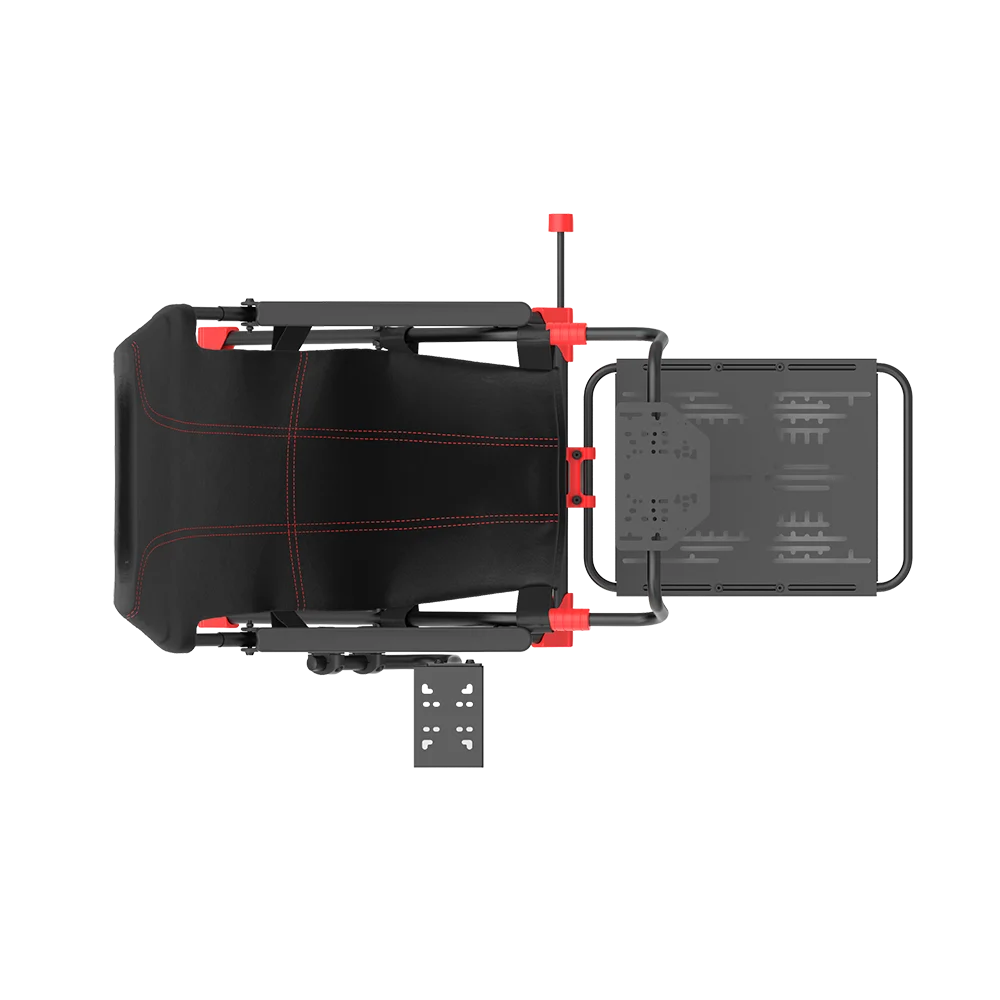

XYZ RS GT foldable racing simulator features a heavy-duty round-tube steel frame with an anti-tip stabilizer bar. The seat comes with an adjustable reclining backrest and ergonomic armrests. Multi-angle adjustment is available for the wheel mount, pedal bracket and built-in reversible shifter mount. Universally compatible with most mainstream sim-racing peripherals, this foldable cockpit delivers an immersive racing experience while saving space.

  • Foldable space-saving design — folds flat for easy storage
  • Heavy-duty steel frame — round-tube construction, 150 kg (331 lbs) rated
  • Anti-tip stabilizer bar — prevents lateral tipping and adds stability
  • Multi-position pedal bracket — adapts to different leg lengths
  • Tilt-adjustable wheel mount — 25° to 39° angle range
  • Reclining backrest & armrests — 105°–110° backrest; armrests 49–56 cm
  • Built-in reversible shifter mount — left or right, multi-angle, 165×125 mm
  • Black linen-blend upholstery — breathable, reinforced stitching
VIEW SPECIFICATIONS FIND RETAILER

HIGH LOAD CAPACITY FOR LONG SIM RACING SESSIONS



Max user load up to 150 kg (331 lbs); reinforced mounting plates for wheel (50 kg), pedal (80 kg) and shifter (20 kg) assemblies.

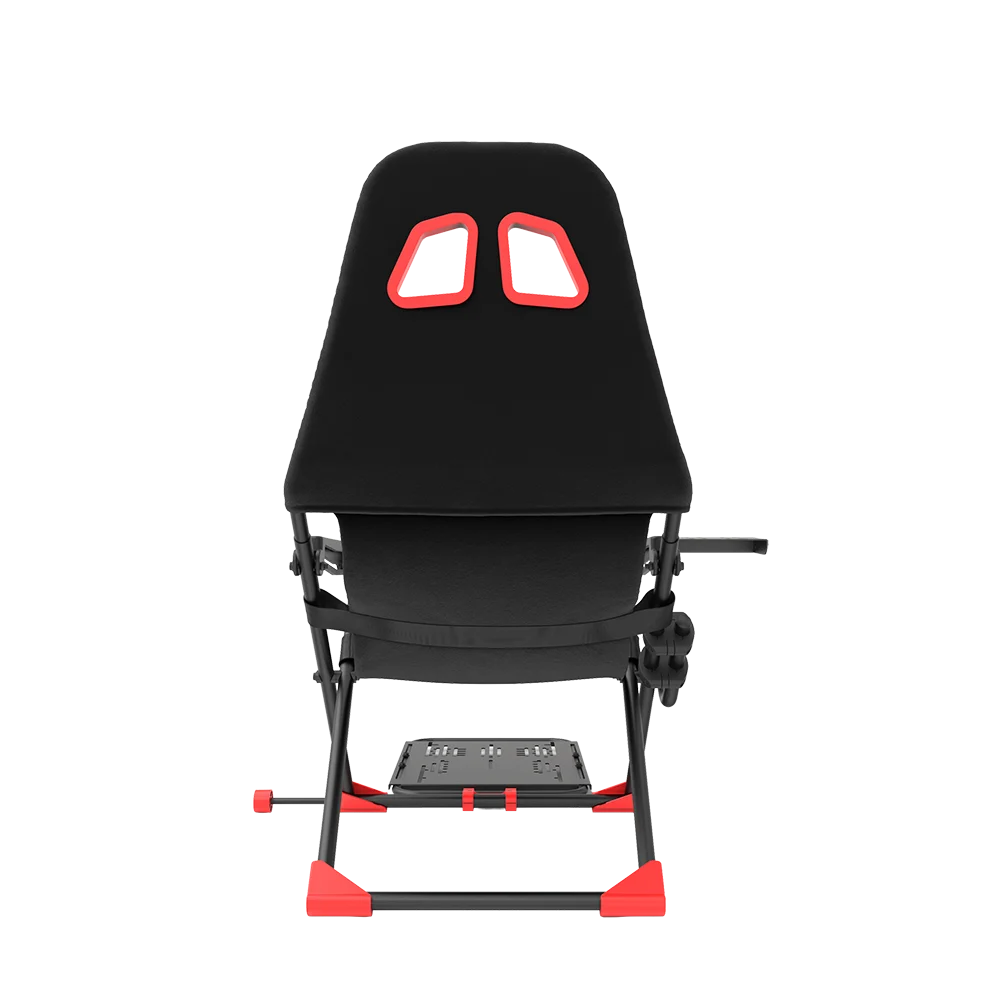

ERGONOMIC RACING SEAT

Contoured black linen-blend seat with reinforced stitching;
backrest reclines from 105° to 110° with ratchet locking for a focused driving posture.

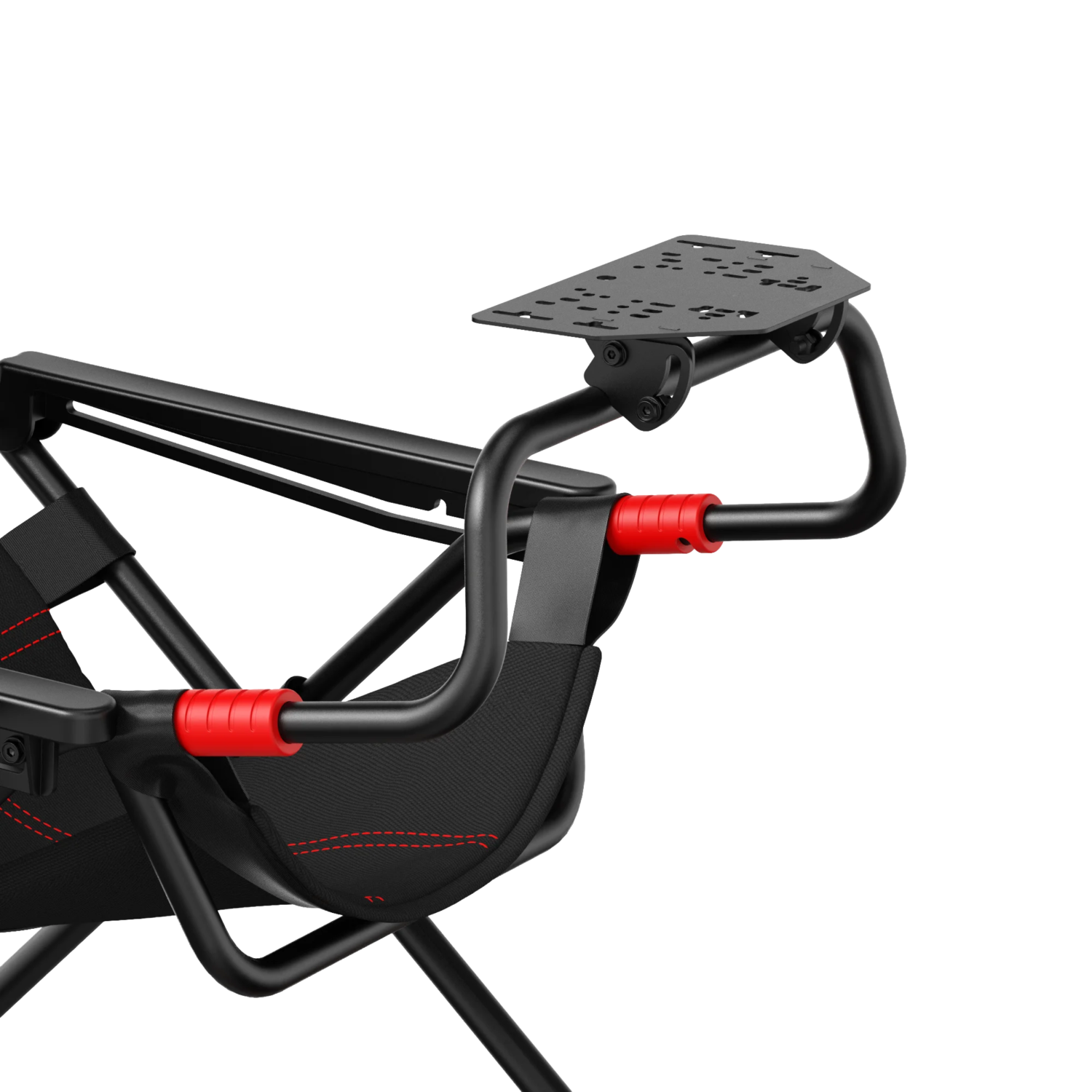

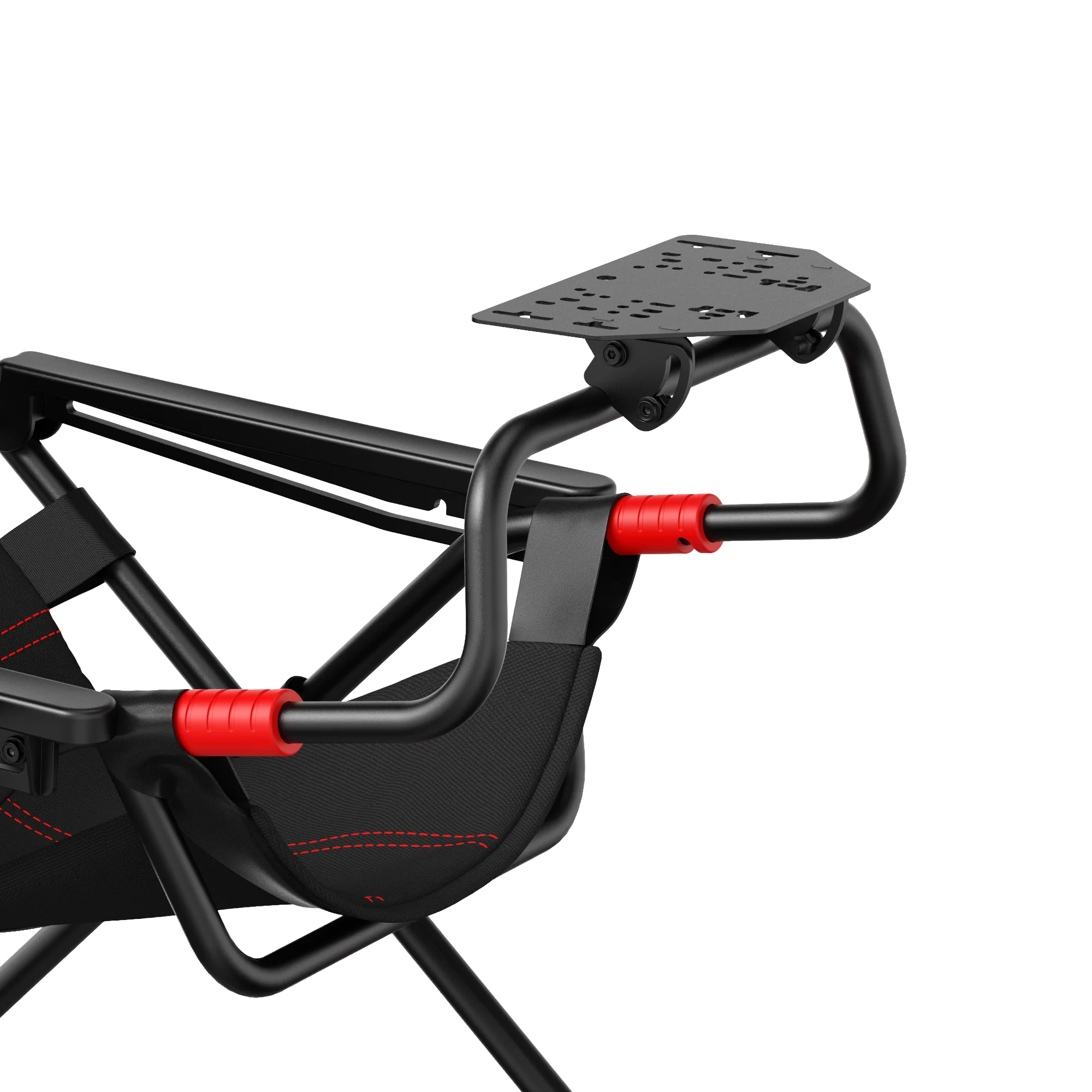

ADJUSTABLE STEERING WHEEL DECK

Tilt-adjustable wheel plate from 25° to 39°,
with pre-drilled universal mounting holes to match your preferred steering angle.

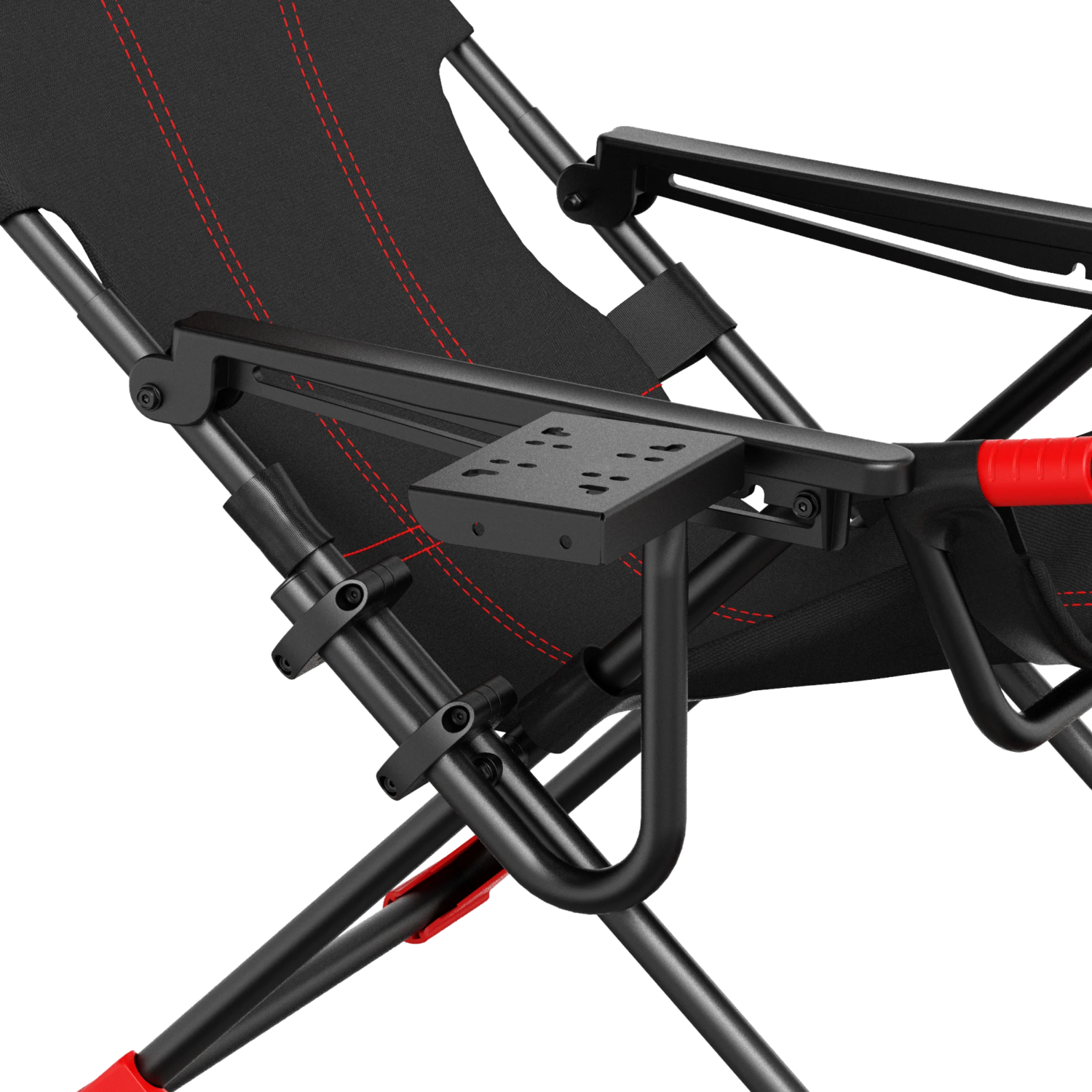

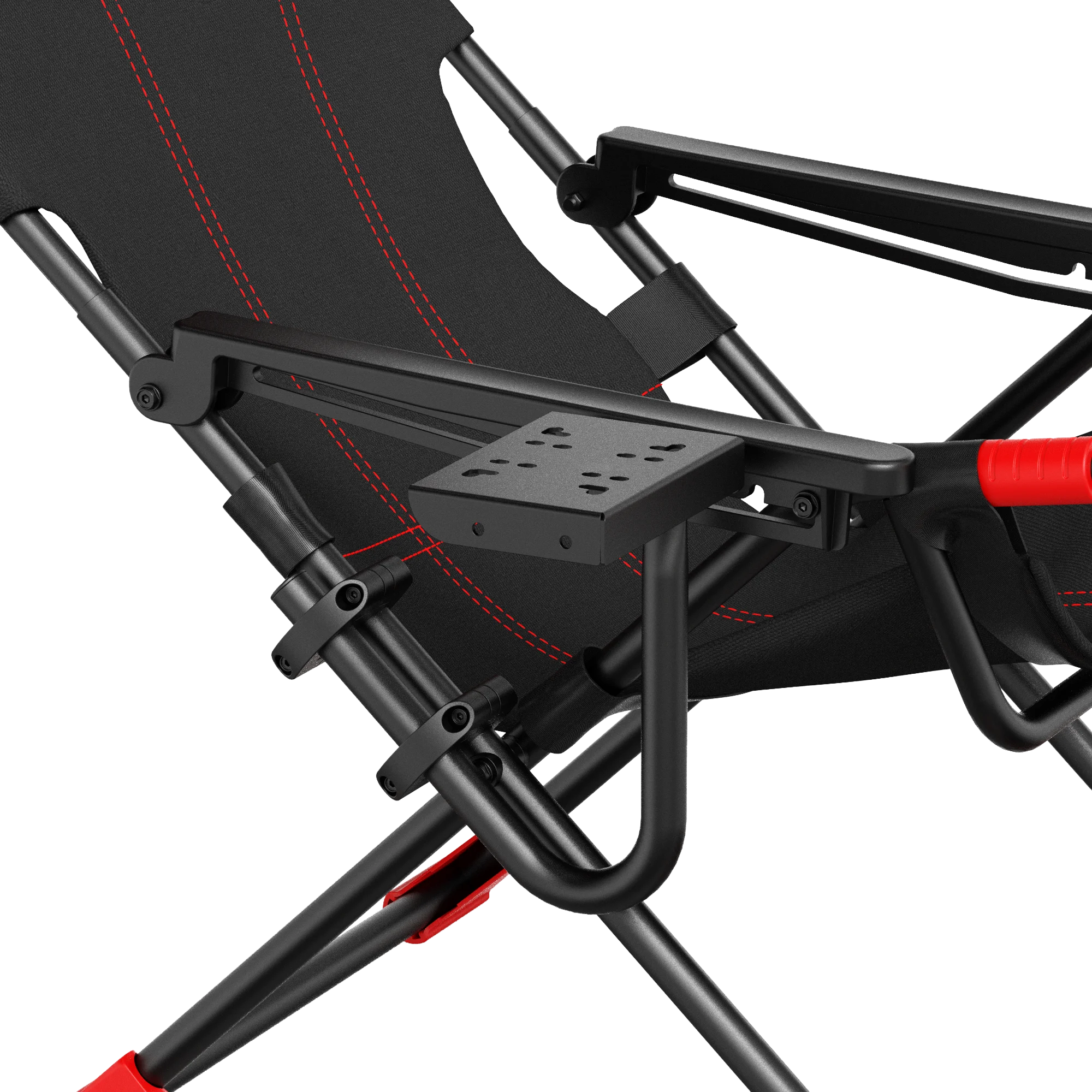

BUILT-IN REVERSIBLE SHIFTER MOUNT

Integrated shifter bracket, multi-angle configurable and reversible to mount on the left or right side;
165 × 125 mm universal hole pattern fits most commercial sim-racing shifters.

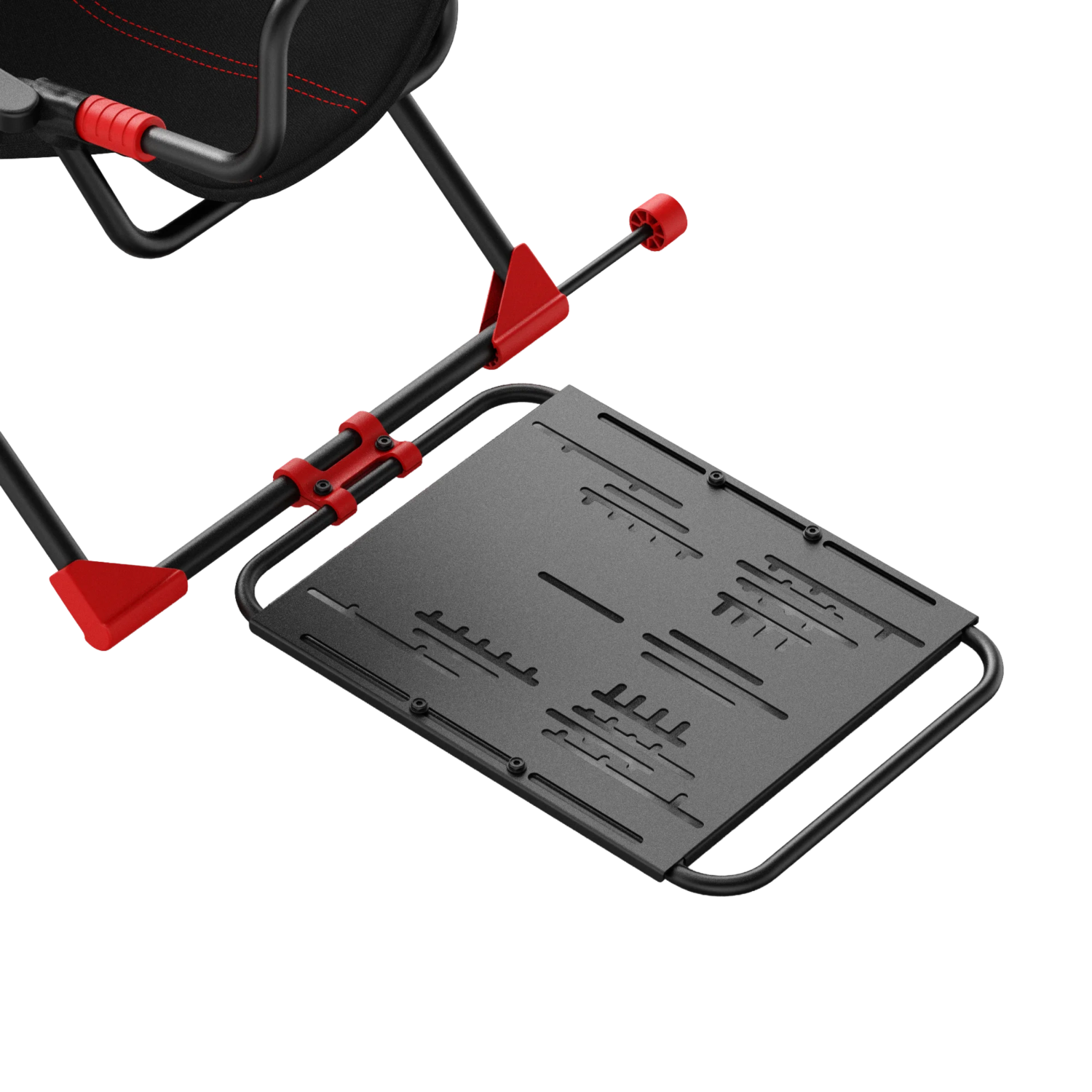

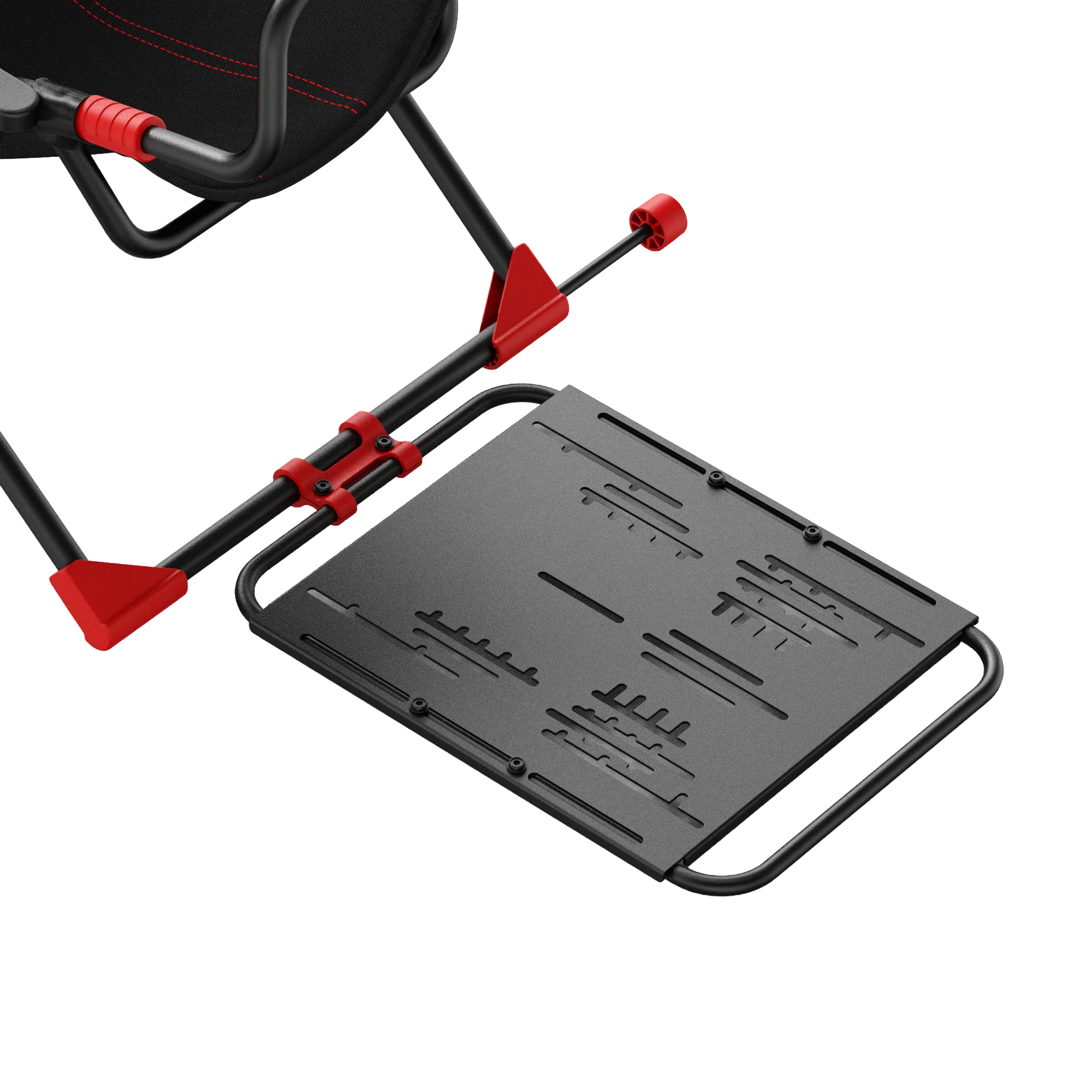

MULTI-POSITION PEDAL BASE

Pedal bracket adjusts to multiple positions to suit different leg lengths and braking styles.

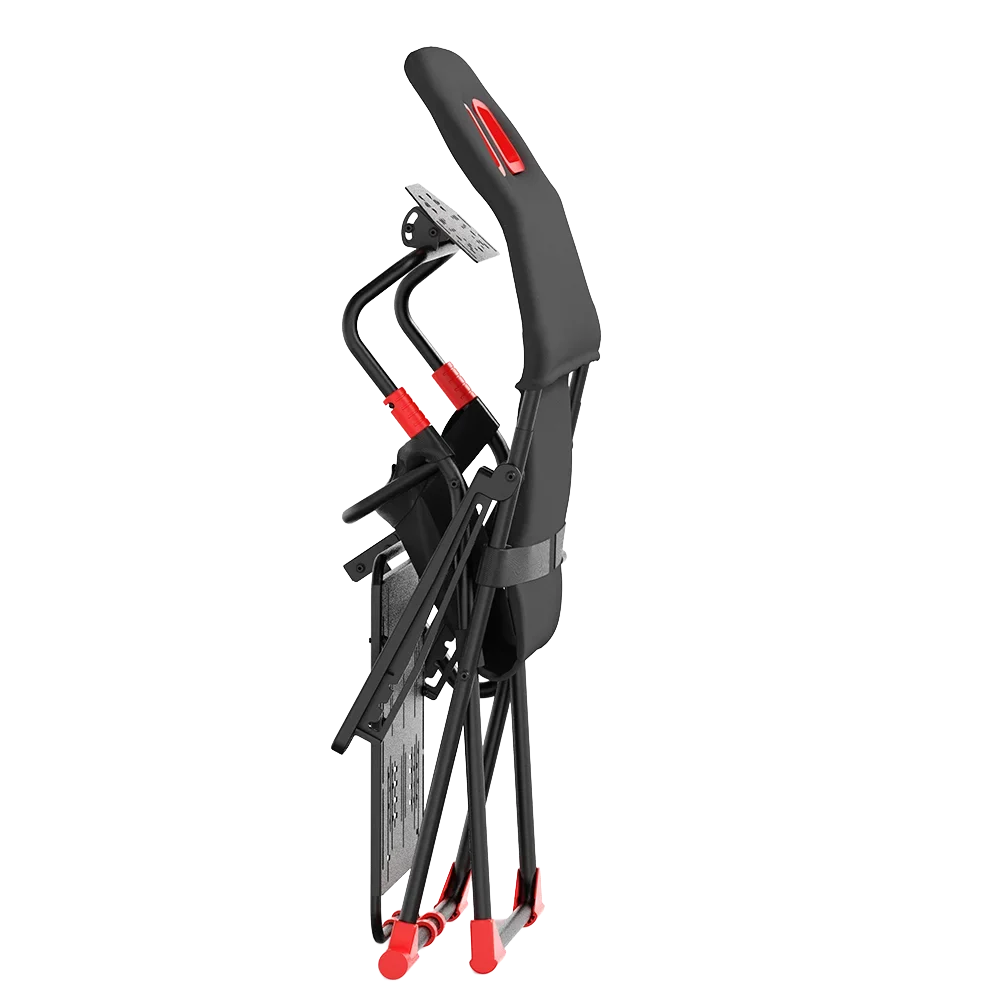

FOLD-FLAT, SPACE-SAVING DESIGN

The whole cockpit folds into a slim vertical profile for storage in a corner, under a bed or behind a door. It unfolds in seconds and locks into place — pack it away when you’re done racing.

UNIVERSAL MOUNTING HOLE PATTERNS, WIDE PERIPHERAL COMPATIBILITY

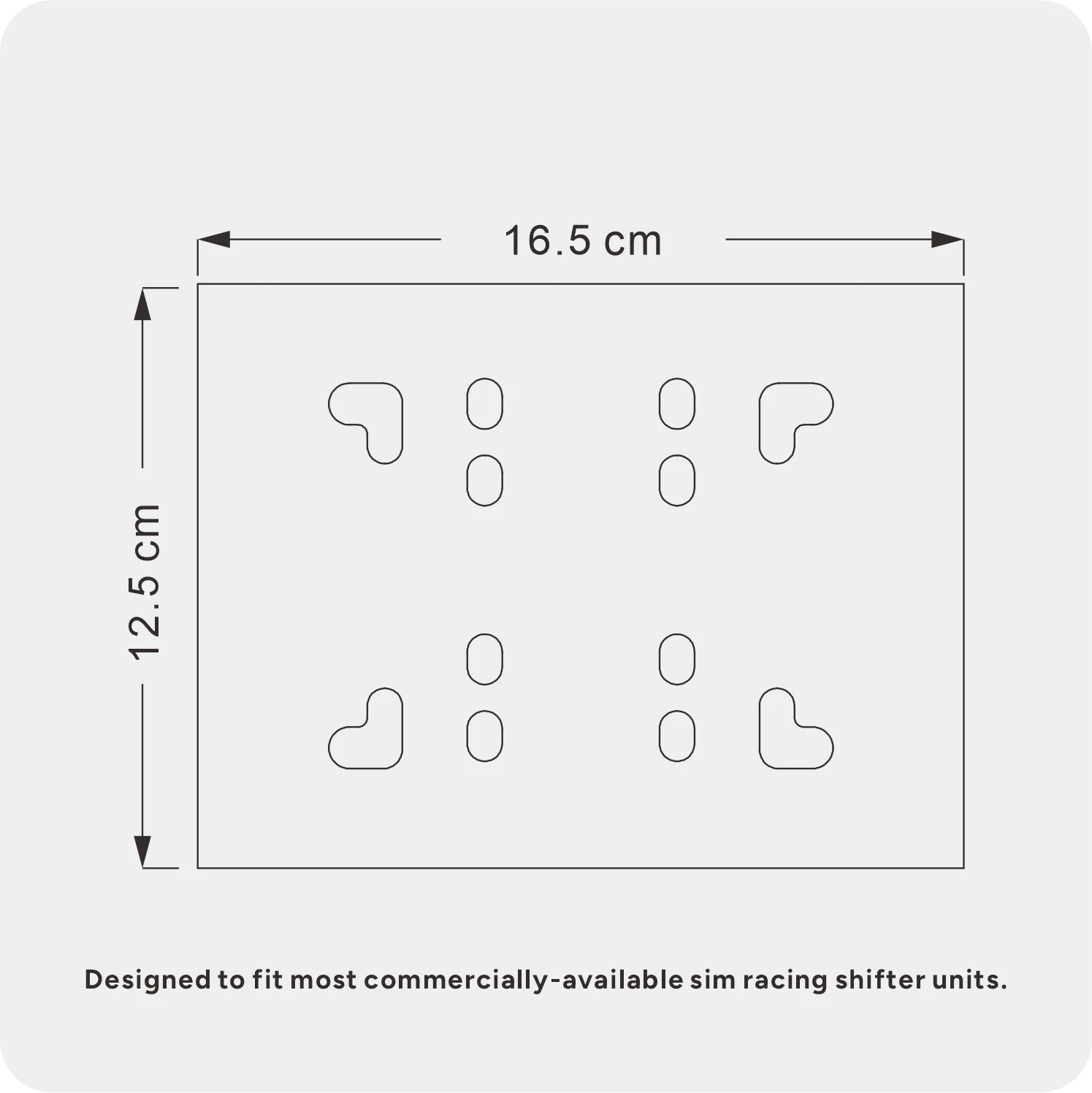

Shifter Bracket Universal Mounting Pattern

165 × 125 mm multi-hole plate,

compatible with most mainstream sim-racing shifters.

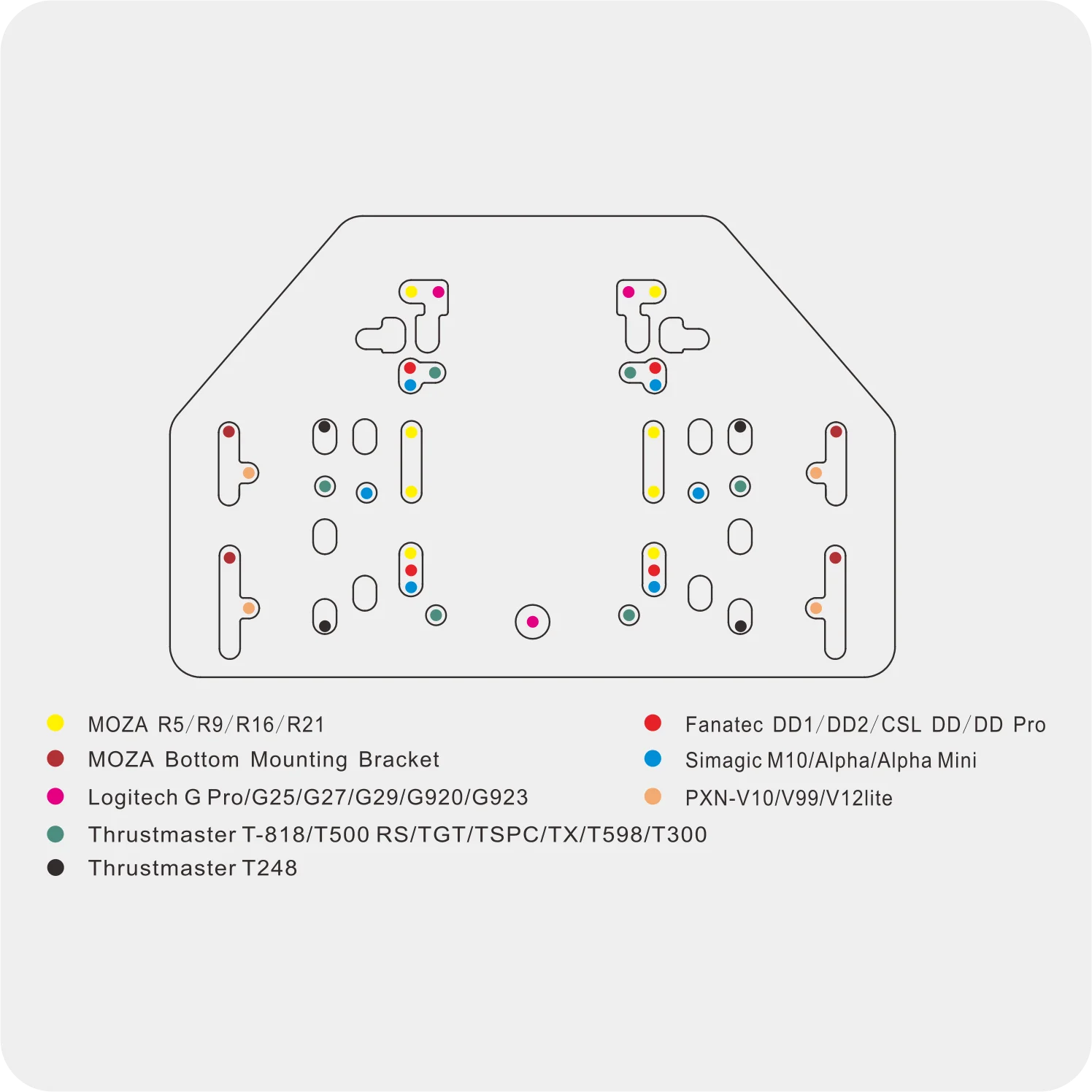

Wheel Plate Mount‑Pattern Compatibility Diagram

Pre-drilled universal hole pattern compatible with MOZA,
Logitech, Thrustmaster, Fanatec, Simagic and PXN wheel bases.

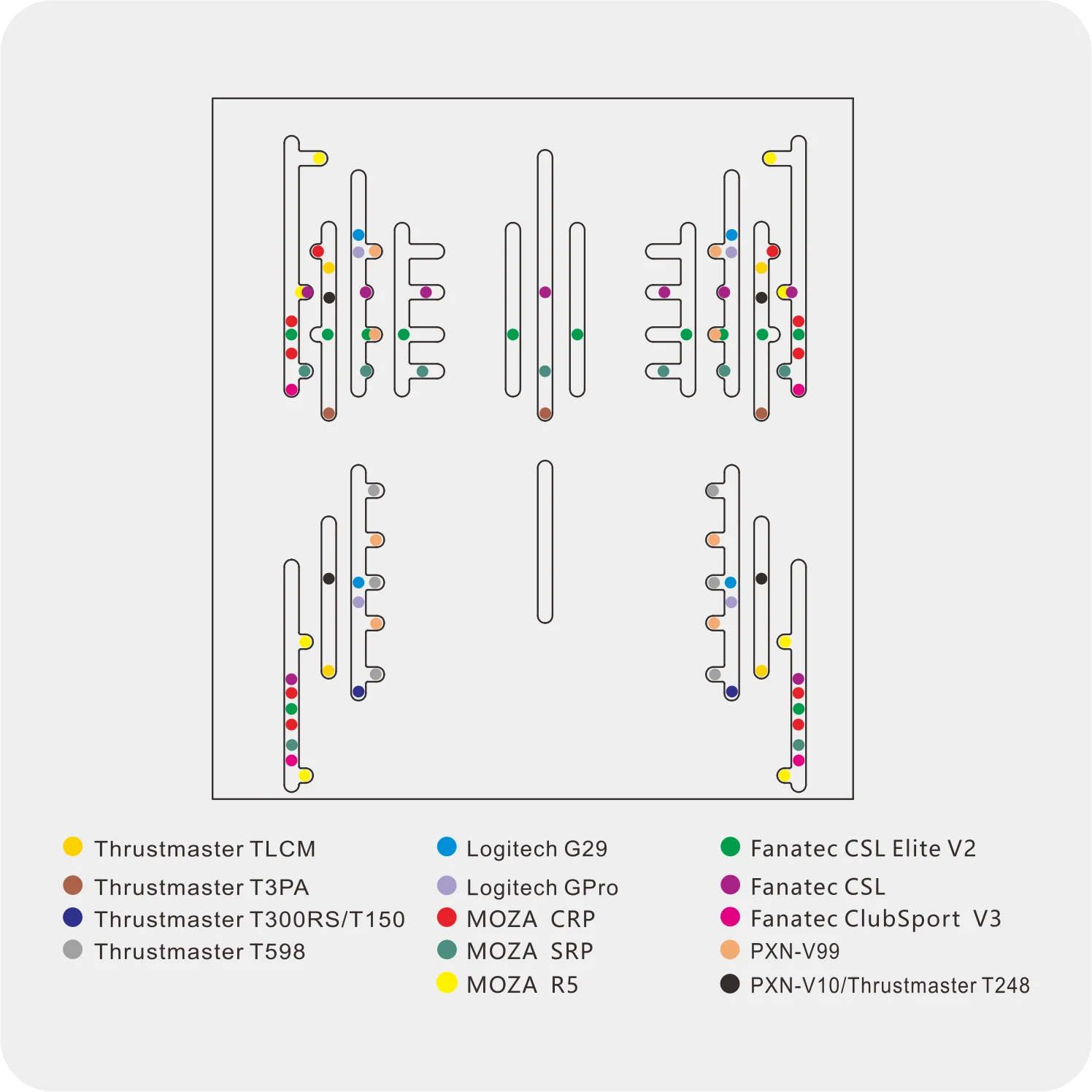

Pedal Plate Mount‑Pattern Compatibility Diagram

Multi-slot mounting holes fit Thrustmaster, Logitech, MOZA, Fanatec and PXN pedal sets.

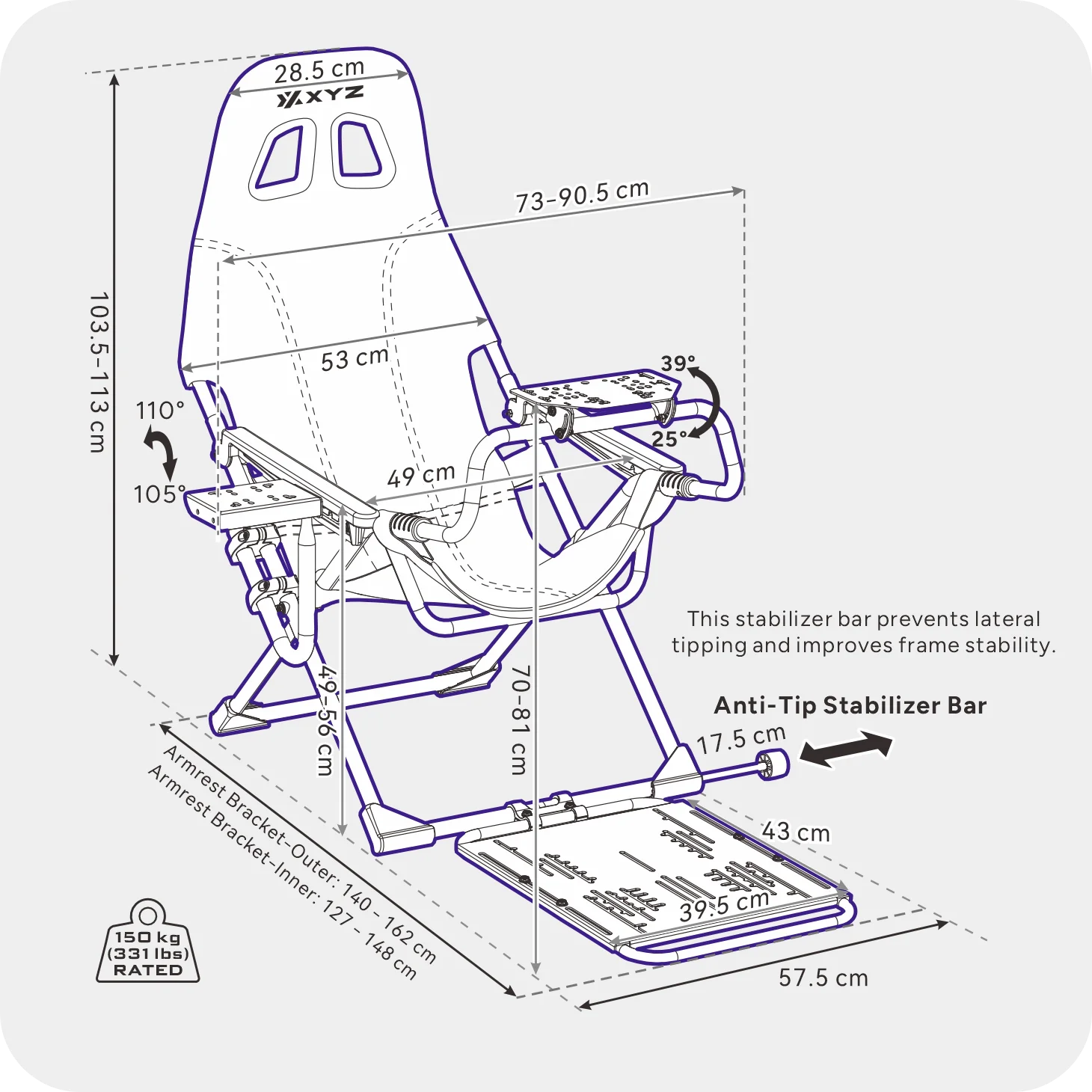

Adjustment Specs & Product Dimensions

Technical Specifications

XYZ RS GT

Model: X-RS-GT-B

Max User Load Capacity: 150 kg (331 lbs)

Main Frame: Heavy-duty round-tube steel frame

Seat Upholstery: Black composite linen-blend

Pedal Plate Adjustment: Multi-position

Steering Wheel Plate Angle: 25° – 39°

Shifter Bracket: Reversible, multi-angle configurable

Pedal Plate Max Load: 80 kg (176.4 lbs)

Steering Wheel Plate Max Load: 50 kg (110.2 lbs)

Shifter Bracket Max Load: 20 kg (44.1 lbs)

Overall Dimension (L × W × H): 1150–1240 × 575–740 × 1030–1130 mm

Seat Dimension (H × W × D): 1035 × 570 × 730–905 mm

Backrest Recline Angle: 105° – 110°

Armrest Height: 49 – 56 cm

Seat Movement: Fore-aft adjustable

Net Weight (Complete Set): 12.85 kg (28.3 lbs)

Shifter Mounting Plate: 165 × 125 mm

Compatibility: Universal mounting hole pattern, fits most commercial sim-racing shifters, wheels and pedals

TYPICAL APPLICATIONS

Sim racing enthusiasts, home racing simulation setup, gaming room, e-sports experience. Compatible with mainstream sim-racing peripherals.

APPLICATION GUIDANCE

Unfold the frame and lock the quick-release buckles. Adjust the backrest, wheel mount, pedal bracket and armrests to your preferred driving posture. Secure all bolts tightly before use and check fasteners periodically. Follow peripheral manufacturers’ instructions when mounting the wheel, pedals and shifter.

POSITIONING

Designed for sim racers. Built for immersive racing experience. Brand: XYZ. Product: Racing Simulator RS GT.

Supported Brands & Models

Wheel bases/wheels:

MOZA: R5, R9, R16, R21, Bottom Mounting Bracket

Logitech: G Pro, G25, G27, G29, G920, G923

Thrustmaster: T-818, T500 RS, TGT, TSPC, TX, T598, T300, T248

Fanatec: DD1, DD2, CSL DD, DD Pro

Simagic: M10, Alpha, Alpha Mini

PXN: V10, V99, V12 lite

Pedals:

Thrustmaster: TLCM, T3PA, T300RS, T150, T598, T248

Logitech: G29, G Pro

MOZA: CRP, SRP, R5

Fanatec: CSL Elite V2, CSL, ClubSport V3

PXN: V99, V10

DISCLAIMER

Technical data shown are based on the product information supplied for XYZ Racing Simulator RS GT and may represent typical laboratory values. Actual performance can vary with assembly method, mounting pressure, hardware and operating environment. The user is responsible for determining suitability for the intended application. Specifications are subject to final production confirmation.

Available Colors:
BLACK
SKU | X-RS-GT-B
EAN | 6978262012977

Package Contents

  • Main frame ×1
  • Seat assembly ×1
  • Steering wheel bracket ×1
  • Pedal plate ×1
  • Shifter mount ×1
  • Assembly hardware & tools ×1 set
