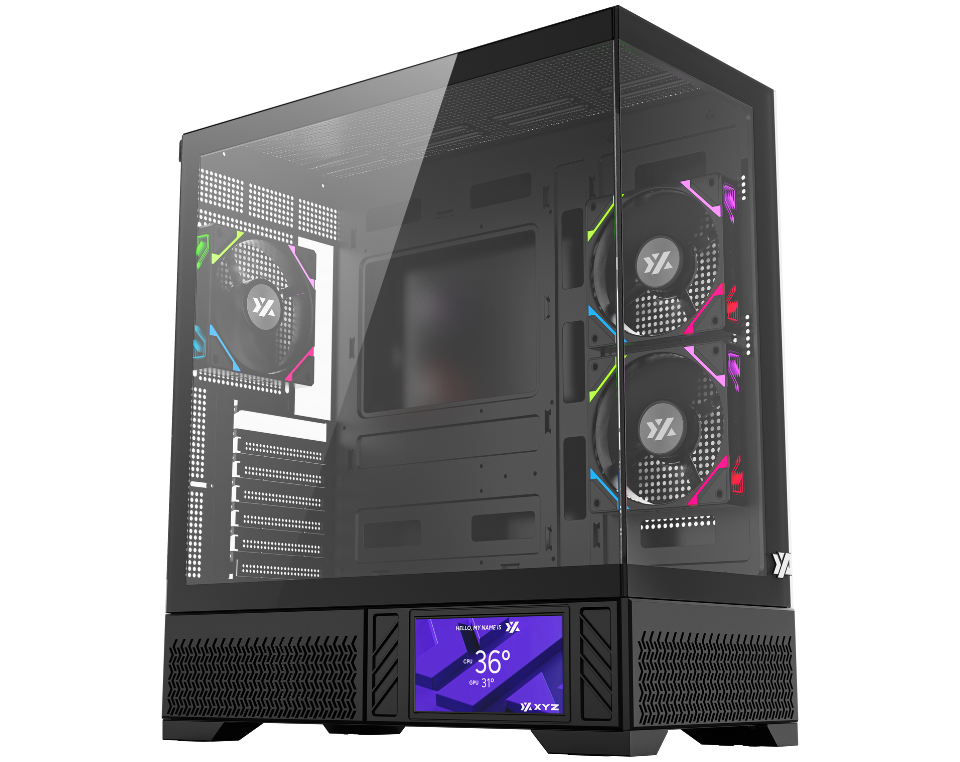

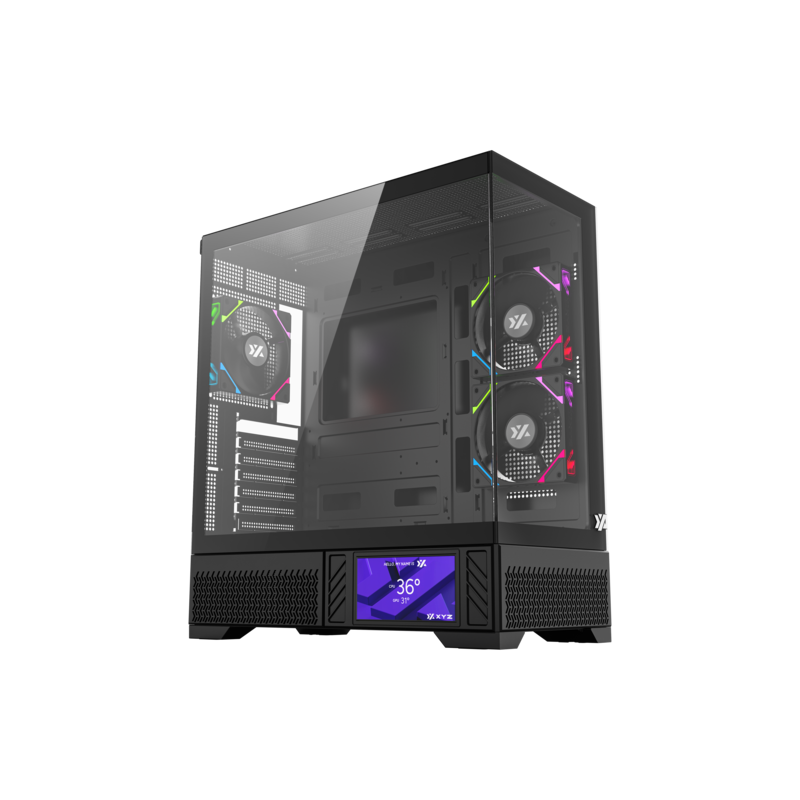

XYZ AURORAX 100 PRO

Panoramic Elegance, Airflow Performance, PRO Feeling

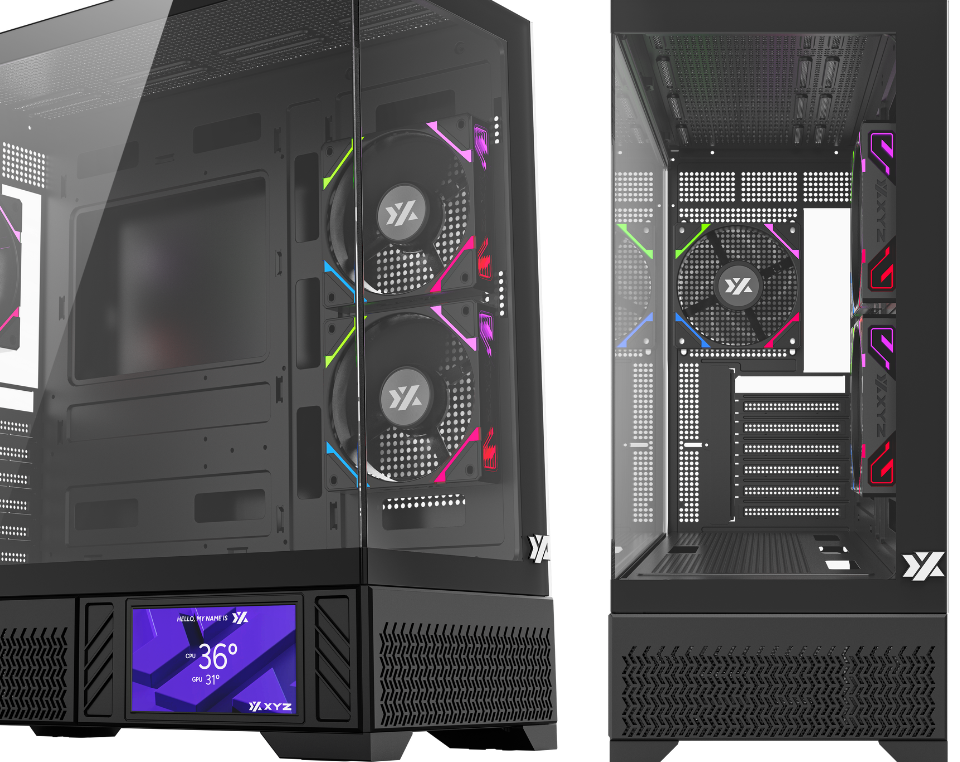

Take your setup to the next level with the XYZ AURORAX 100 PRO, the ultimate panoramic chassis that combines cutting-edge design, advanced cooling, and intelligent system monitoring. Featuring a full tempered glass side panel, an integrated 5.5” LCD display, XYZ Nexus management software, three pre-installed Pulsar A-RGB fans, and a USB Type-C port, the AURORAX 100 PRO is the perfect choice for creators, enthusiasts, and professional gamers seeking performance, style, and complete control.

5.5” Smart LCD Display: View critical system information in real-time, such as CPU and GPU temperatures and loads, or customize the screen with animations, logos, or performance metrics using XYZ Nexus software.
In addition, our AURORAX 100 PRO LCD screen is interchangeable, on the side or on the front, the choice of customization is yours.
Elegant Panoramic Tempered Glass Panel: Showcase your hardware and lighting effects with a full-size tempered glass panel featuring an innovative screw-free sliding system for easy access and a pristine aesthetic.
Three Pre-Installed VORTEX 120mm A-RGB PWM Fans: Achieve optimal cooling with vibrant lighting and silent PWM control, keeping your system cool and visually stunning.
Extreme Hardware Compatibility: Accommodates graphics cards up to 420mm (without fans on the motherboard bracket) or 380mm (with front fans) and CPU coolers up to 165mm tall.
High-End Liquid Cooling Ready: Supports radiators up to 360mm on top and 120mm at the rear, enabling advanced liquid cooling setups.
Bottom Mesh Ventilation for Improved Airflow: A stylish bottom mesh panel maximizes airflow intake to help maintain low temperatures even under heavy load.
Next-Generation Connectivity: Enjoy ultra-fast data transfers with a front panel featuring USB 3.0 and USB Type-C Gen 2 ports.

SKU | X-CS-AUROPRO-B
EAN | 6978262011550

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

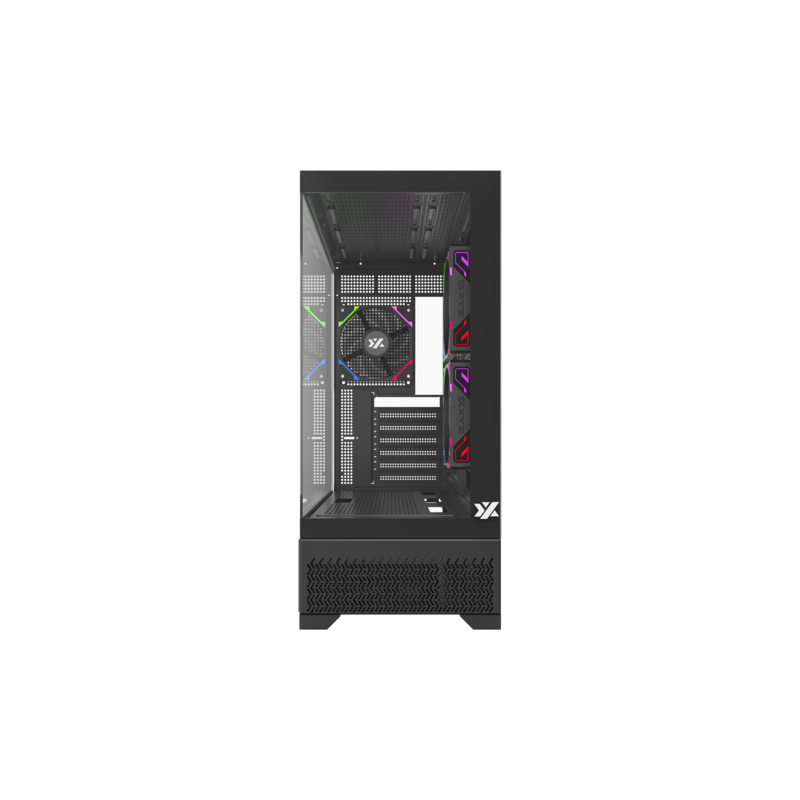

Elegant Panoramic Tempered Glass Panel

Showcase your hardware and lighting effects with a full-size tempered glass panel featuring an innovative screw-free sliding system for easy access and a pristine aesthetic

Three Pre-Installed

VORTEX 120mm A-RGB PWM Fans



Achieve optimal cooling with vibrant lighting and silent PWM control, keeping your system cool and visually stunning.

Massive Hardware Compatibility

Designed to house the latest hardware, the case supports graphics cards up to 420mm (without MB fans) or 380mm with front-mounted fans, and CPU coolers up to 165mm tall, offering maximum flexibility for extreme builds.

Ready for High-End Liquid Cooling

Supports radiators up to 360mm on the top and 120mm at the rear, enabling powerful custom or AIO liquid cooling configurations to maintain low temperatures under heavy loads.

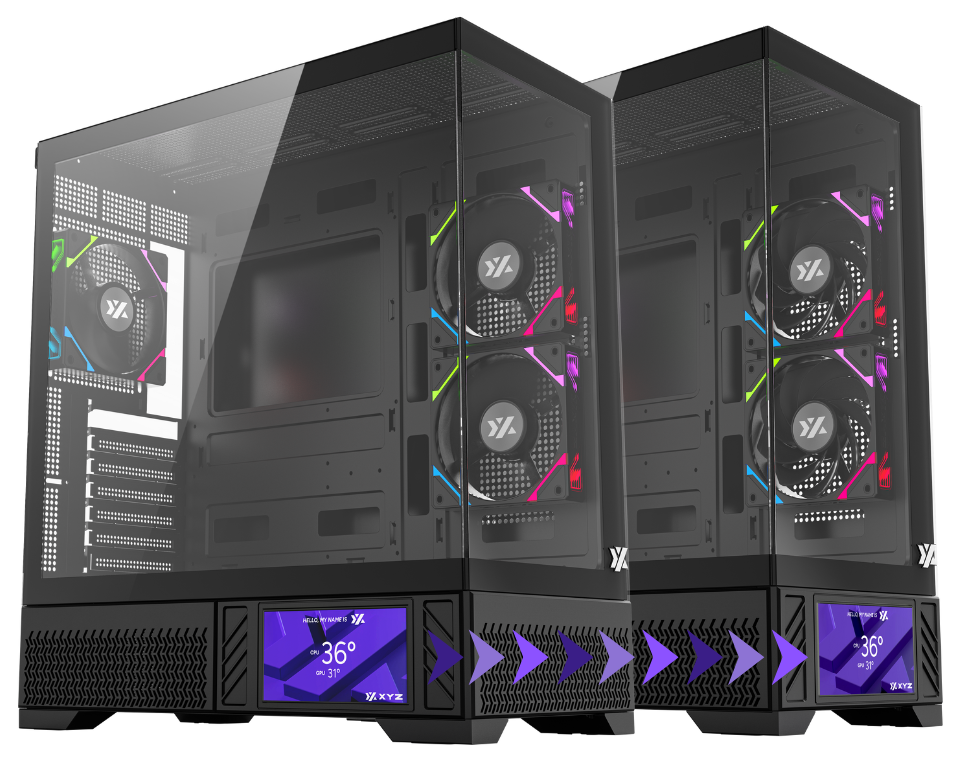

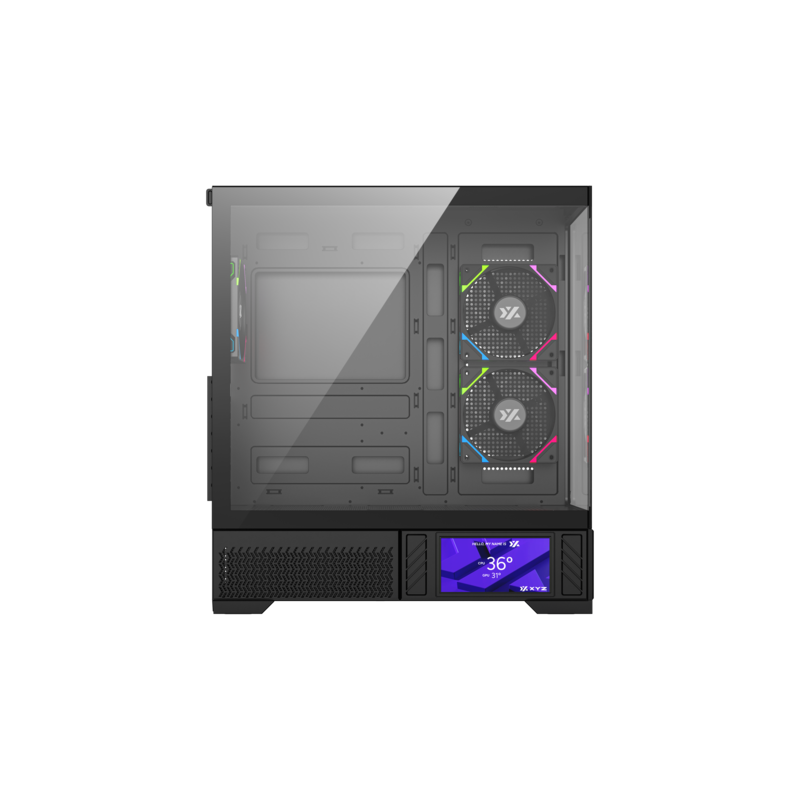

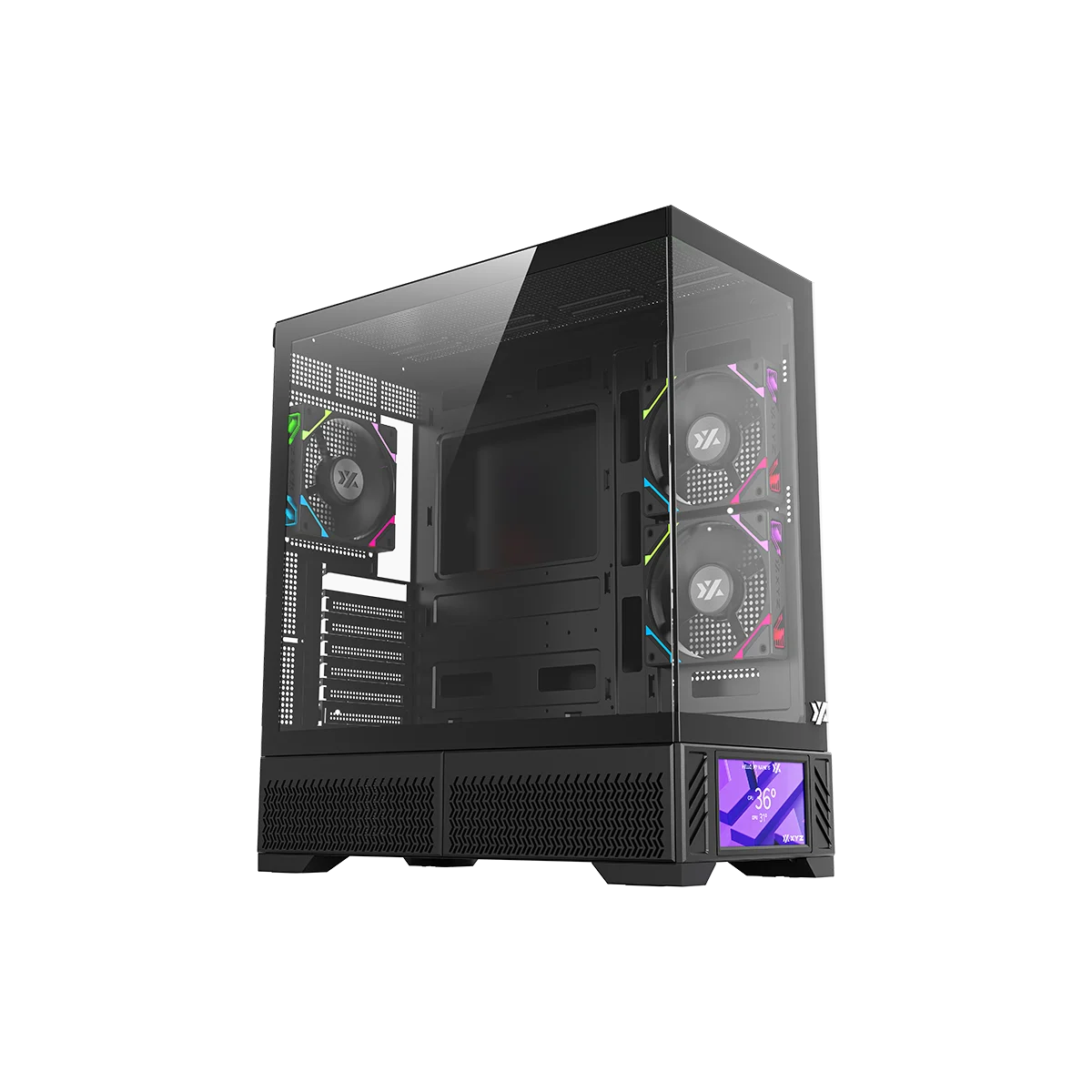

5.5” Modular LCD Display

View critical system information in real-time, such as CPU and GPU temperatures and loads, or customize the screen with animations, logos, or performance metrics using XYZ Nexus software.

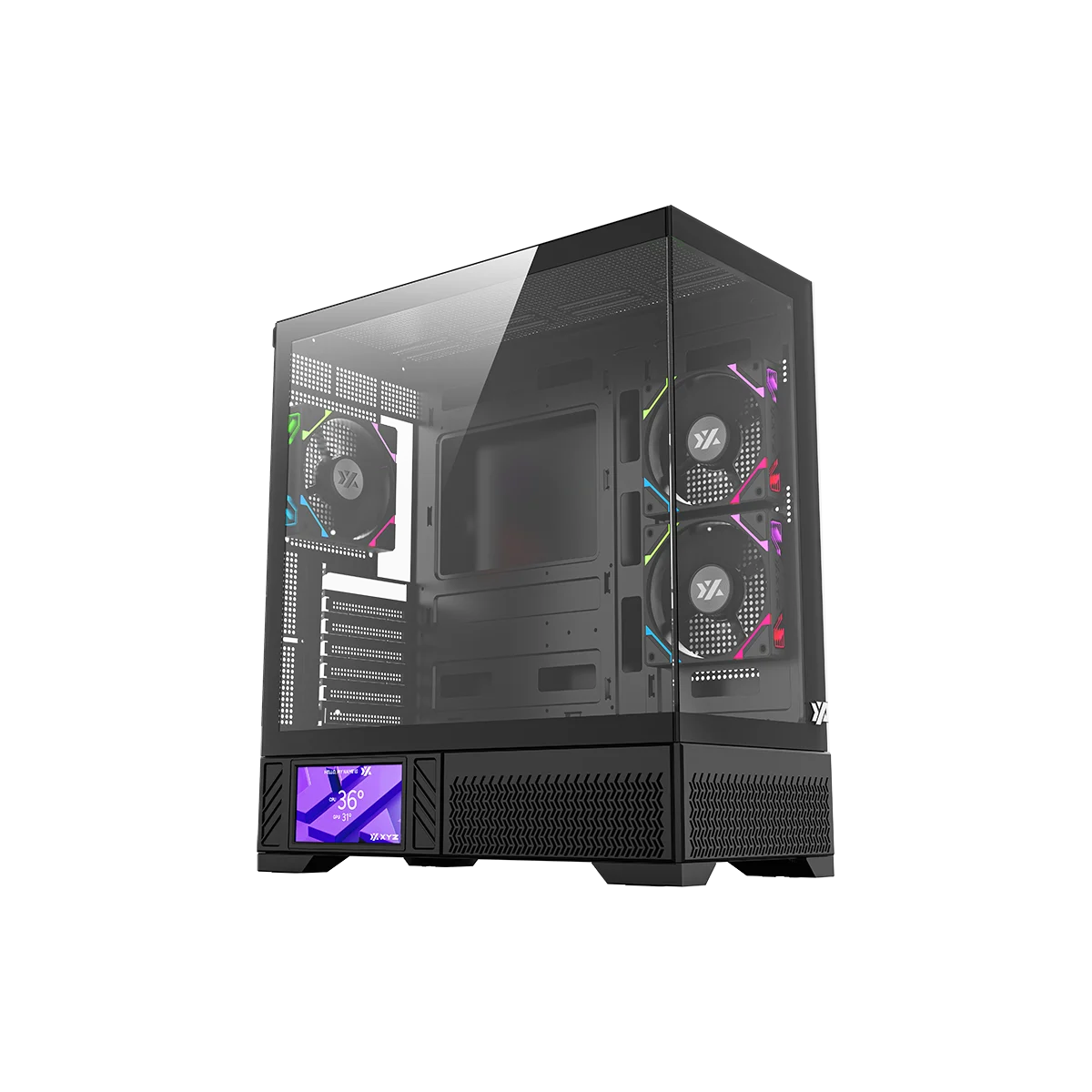

In addition, our AURORAX 100 PRO LCD screen is interchangeable, on the side or on the front, the choice of customization is yours.

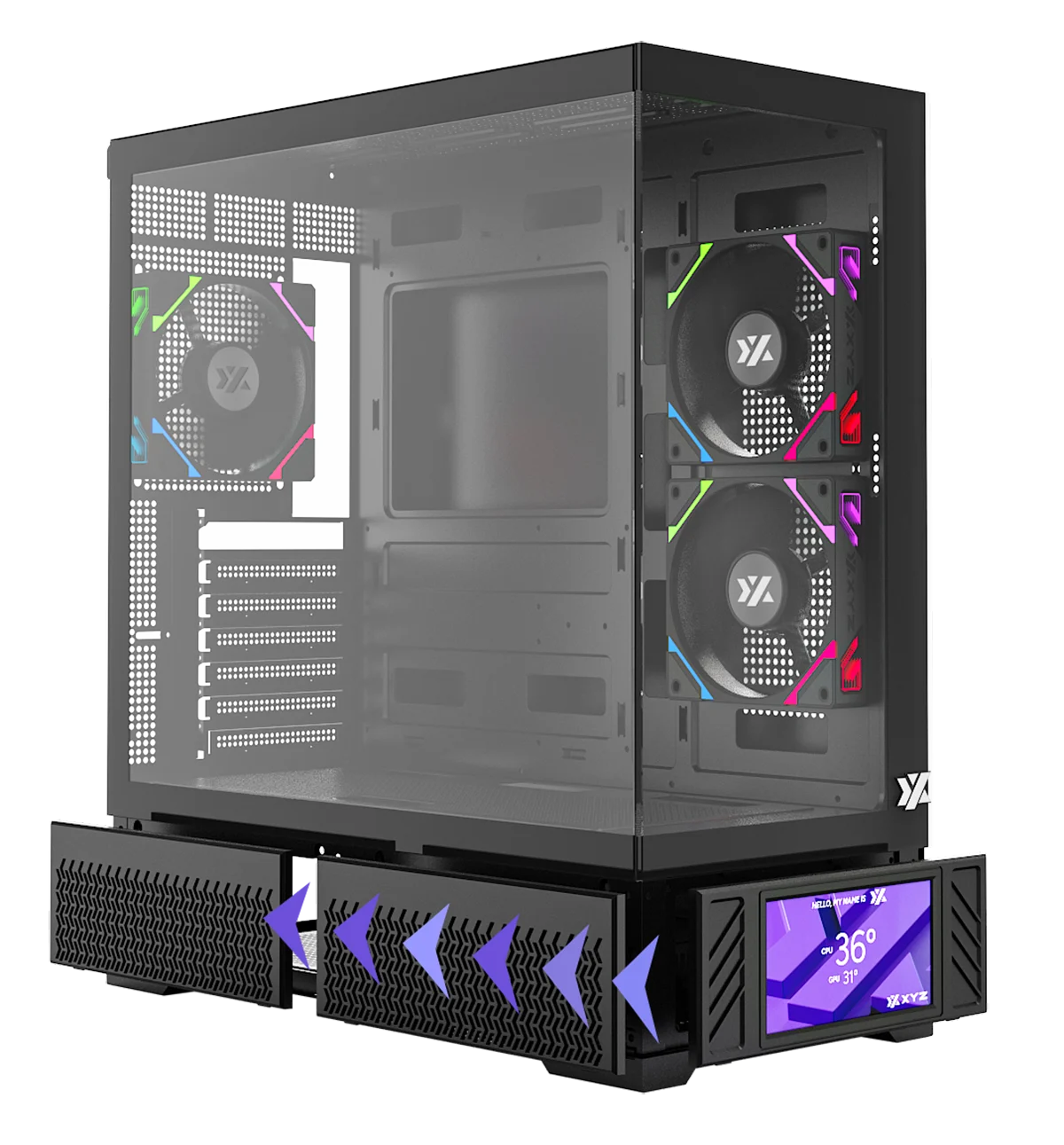

Bottom Mesh Ventilation for Enhanced Thermal Performance

The stylish bottom mesh panel promotes efficient airflow from beneath the case, helping to maintain cooler system temperatures even in compact builds.

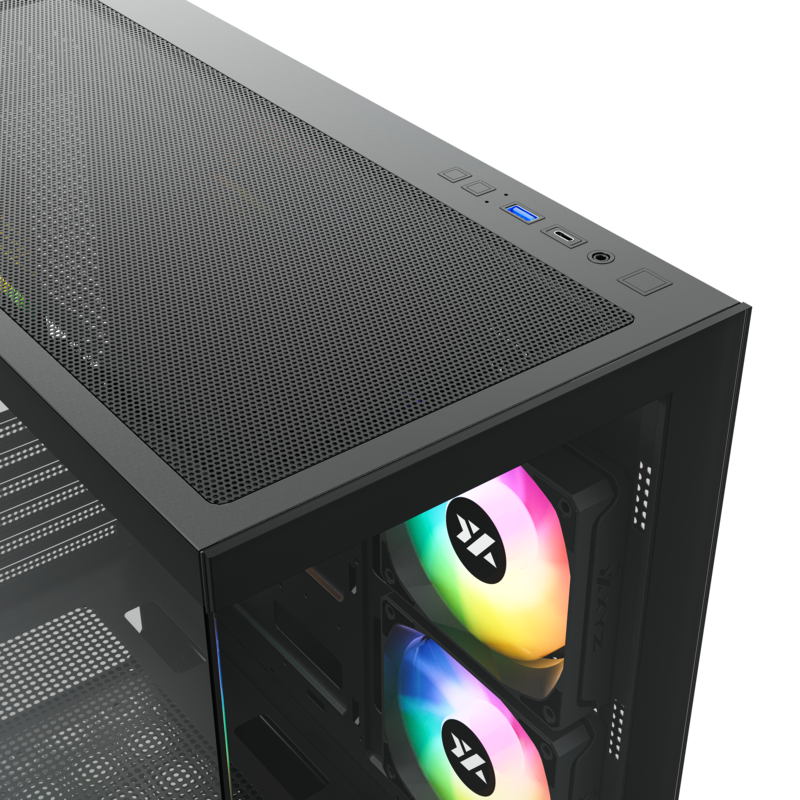

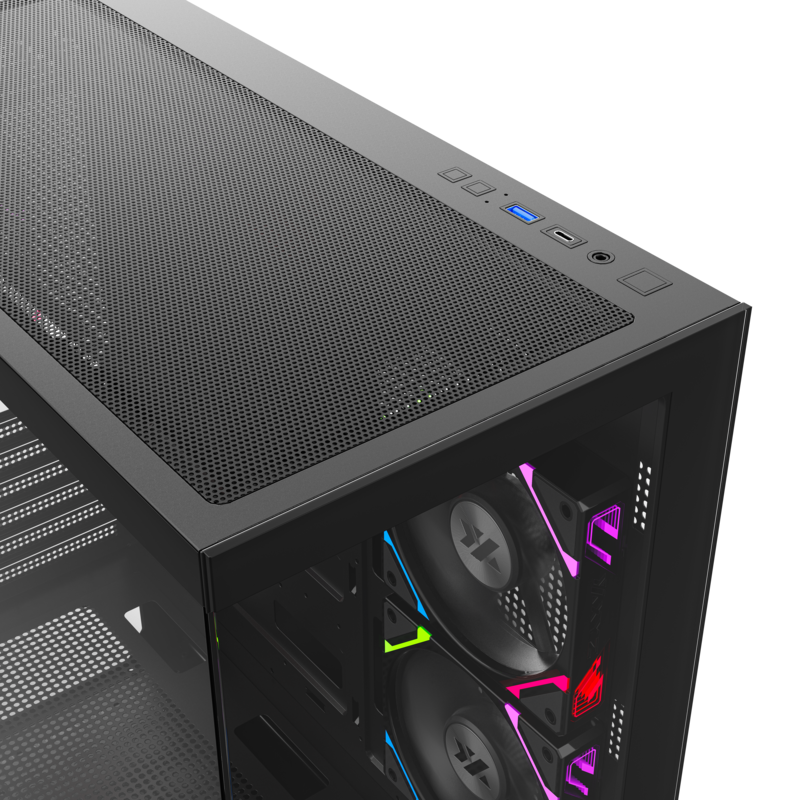

USB 3.0 and Type-C Gen 2 High-Speed Front Panel

Experience fast data transfers and modern connectivity with an integrated USB 3.0 port and a Type-C Gen 2 port, perfectly suited for new-generation peripherals and mobile devices.

Technical Specifications

XYZ AURORAX 100 PRO

Model: XYZ AURORAX 100 PRO
Integrated Screen: Yes
Panel: LCD
Size: 5,5″
Structure Size: 468 x 215 x 495 mm (L x W x H)
Case Size: 468 x 215 x 495 mm (L x W x H)
Box Size: 550 x 270 x 500 mm (L x W x H)
Material: Steel, Tempered Glass, Mesh
Thickness: SPCC 0.5 mm / 0.6 mm, End Finish
Side Panel: Left panel tempered glass with sliding mechanism, no screws on the front
Motherboard Compatibility: ATX / M-ATX / ITX
BTF Compatibility: No
Cable Management: XYZ Velcro organizer included
Pre-installed Fans: 3 x Pulsar 120mm A-RGB PWM fans
Controller: Included, PWM + ARGB, MB Sync supported
Fan Configuration:
Front MB: 2 x VORTEX 120mm A-RGB [REVERSED]
Rear: 1 x VORTEX 120mm A-RGB [REGULAR]
Additional Fan Support:
2 x 120mm (MB bracket)
3 x 120mm / 2 x 140mm (Top)
1 x 120mm (Rear)
3 x 120mm (Bottom)

Radiator Mounting:
Top: 240/280/360mm
Rear: 120mm
Filters: Top / Bottom
Drive Bays: 1 x 3.5” + 2 x 2.5”
Power Supply Support: Standard ATX, up to 200mm
Expansion Slots: 7
I/O Panel:
1 x USB 3.0
1 x USB 1.1
1 x USB Type-C Gen 2
1 x HD Audio In/Out
1 x Reset Button / 1 x LED Control Button
Max GPU Length: 380mm with fans, 420mm without fans
Max CPU Cooler Height: 165mm
Cable Management: Included
Packaging: K=K EPS Non-woven fabric bag

Avaliable colors:

Black:
SKU | X-CS-AUROPRO-B

White:
SKU | X-CS-AUROPRO-W


PULSAR A-RGB FANS

Bearing: FDB
Voltage: 12V (rated), 10.8-13.2V (operating), 5V (startup)
Current: 0.20A (rated), 0.21A (stall)
Power Consumption: 1.80W
Speed: 600-2000 RPM
Airflow: 62.7 CFM
Static Pressure: 2.68 mm-H₂O
Noise: 18.5-32.0 dB(A)
Lifespan: 60,000hrs (25°C)
Blades: 9
Poles: 4
