XYZ AIRWAVE 100 WHITE

XYZ AIRWAVE 100

Panoramic Elegance, Airflow Performance

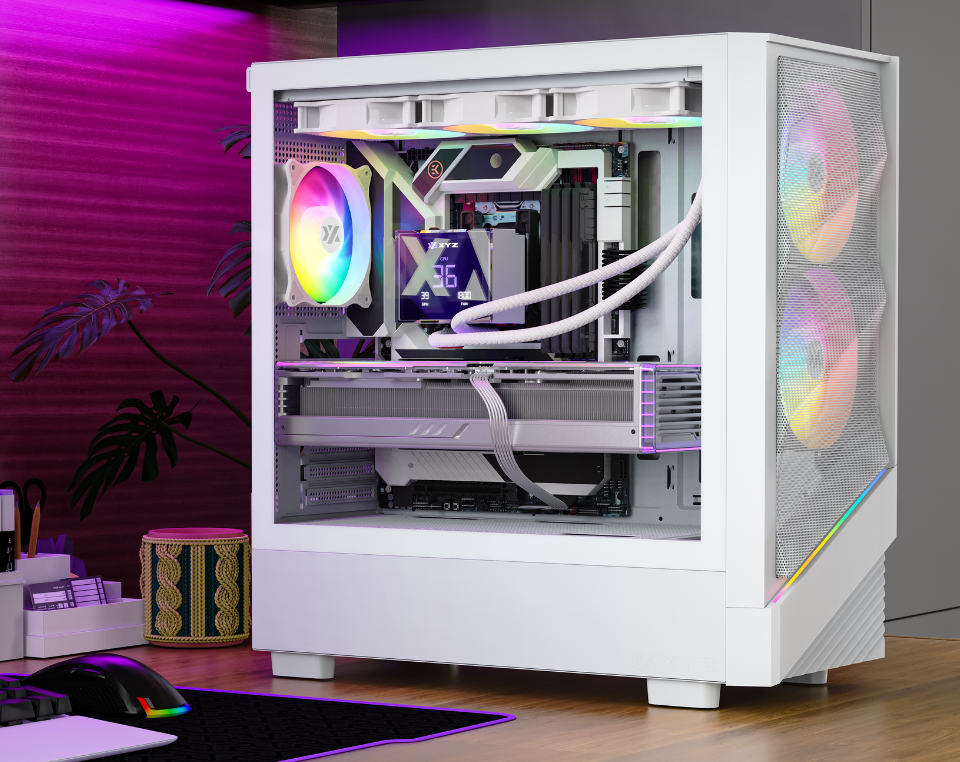

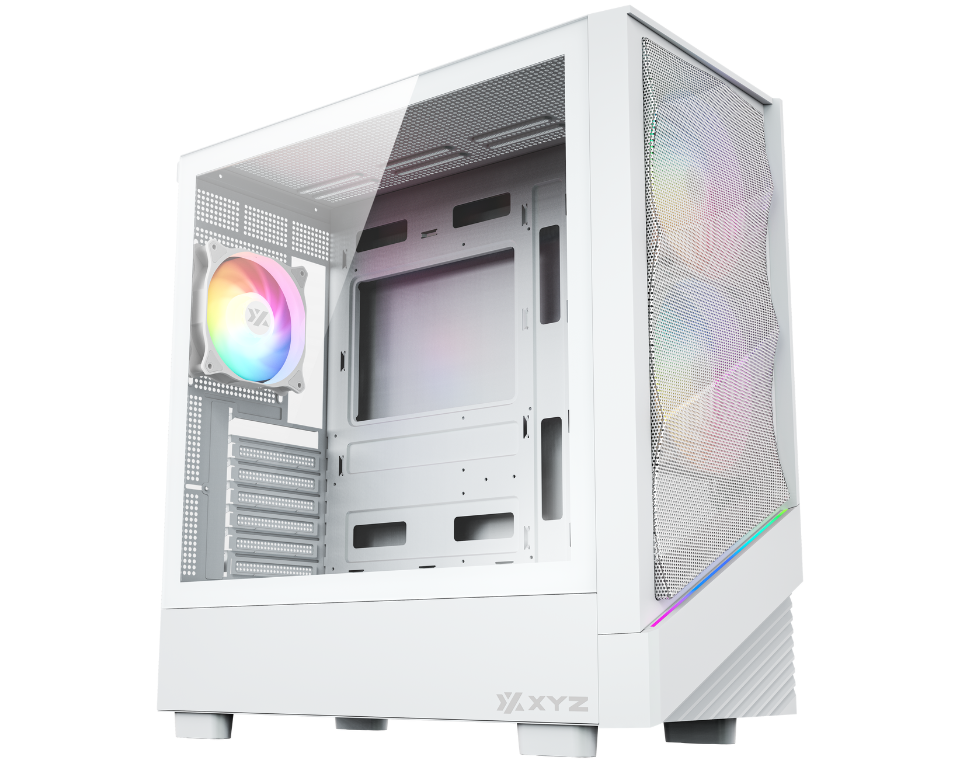

Designed for performance, cooling, and modern aesthetics, the XYZ AIRWAVE 100 combines a full mesh front panel, tempered glass side panel, and three pre-installed AIRPULSE A-RGB fans. Its clean airflow-focused design and USB Type-C connectivity make it the ideal choice for gamers and creators looking to build an efficient and visually impressive PC.

Max Airflow & Vibrant A-RGB Lighting
The full mesh front panel maximizes intake airflow for optimal thermal performance, while integrated A-RGB lighting delivers dynamic, eye-catching visual effects.
Premium Tempered Glass with Easy Access
The full-view tempered glass side panel showcases your build in stunning detail. Its smooth sliding, screwless design allows for quick, tool-free access to the interior.
Balanced Cooling & Synchronized Lighting
Pre-installed fans ensure consistent airflow and vibrant, motherboard-synced lighting. The case supports multiple cooling configurations for air or liquid cooling systems.
Next-Gen Connectivity
The front I/O panel features a USB Type-C Gen 2 port for ultra-fast data transfers, plus standard USB and audio ports for all your peripherals.
Expansive Interior for High-End Builds
The roomy interior is built to support large, premium components, including full-size graphics cards, tall CPU coolers, and standard ATX power supplies.

Variation

BLACK WHITE

VIEW SPECIFICATIONS FIND RETAILER

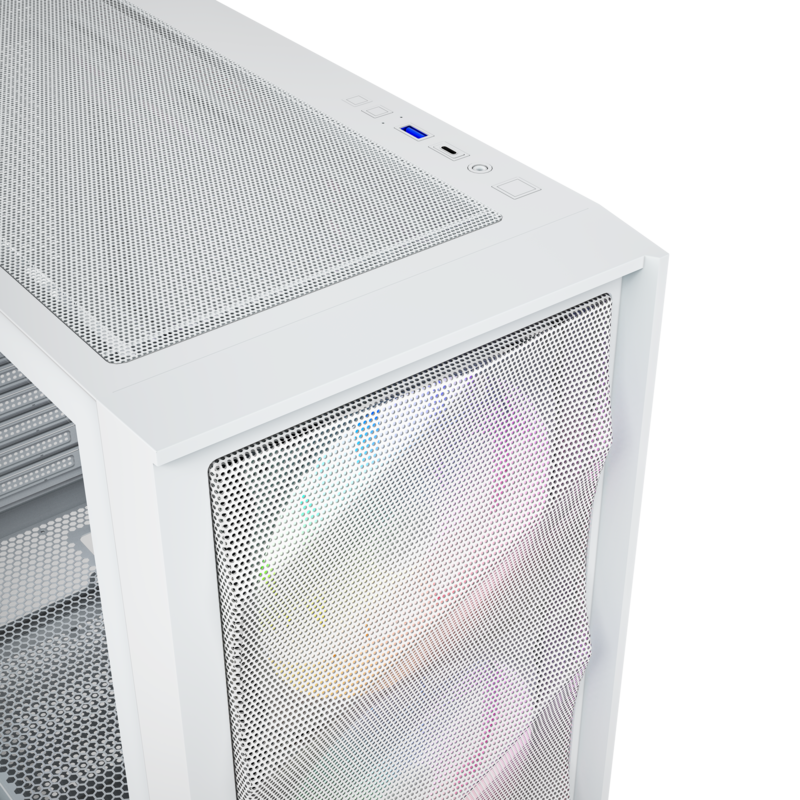

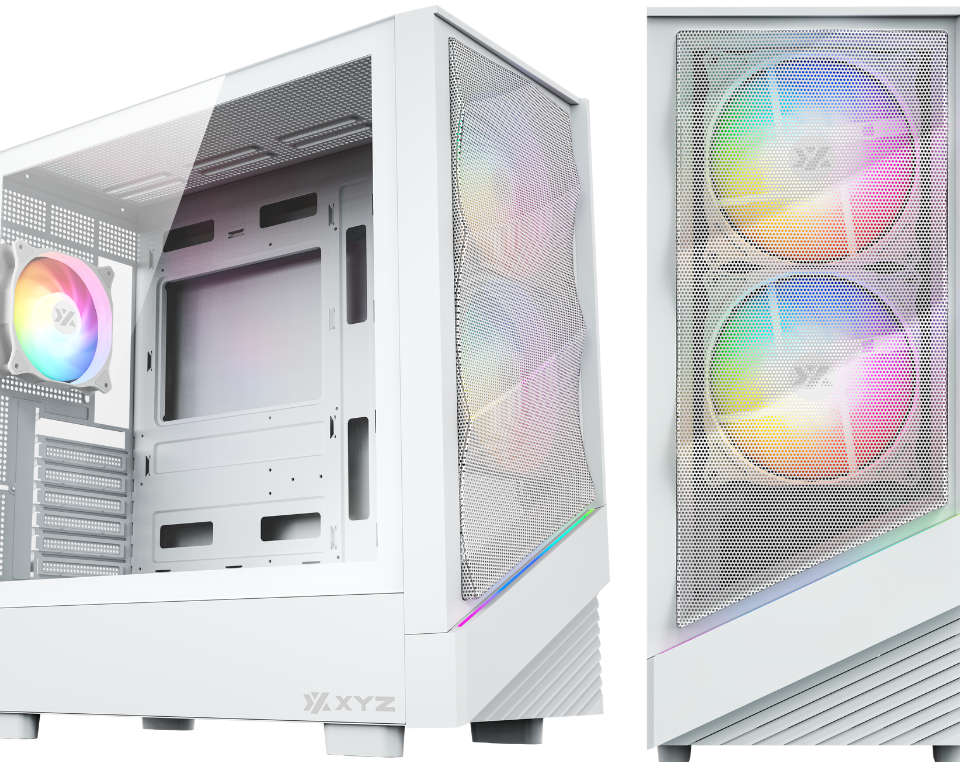

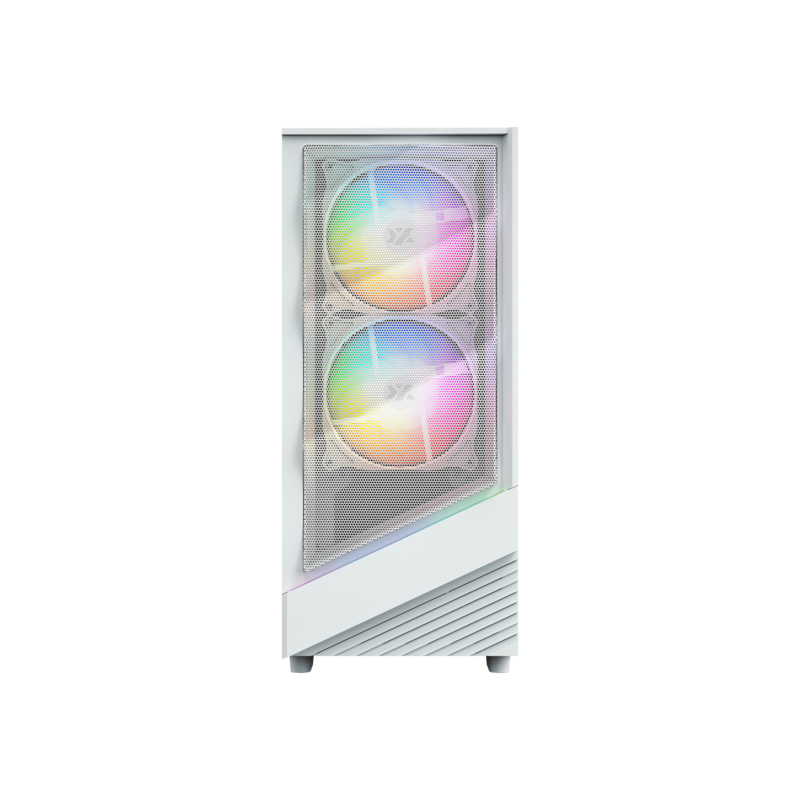

High-Airflow Mesh Front with A-RGB Illumination

The full mesh panel ensures superior intake airflow while showcasing vibrant lighting effects from the dual front 140mm AIRPULSE fans.

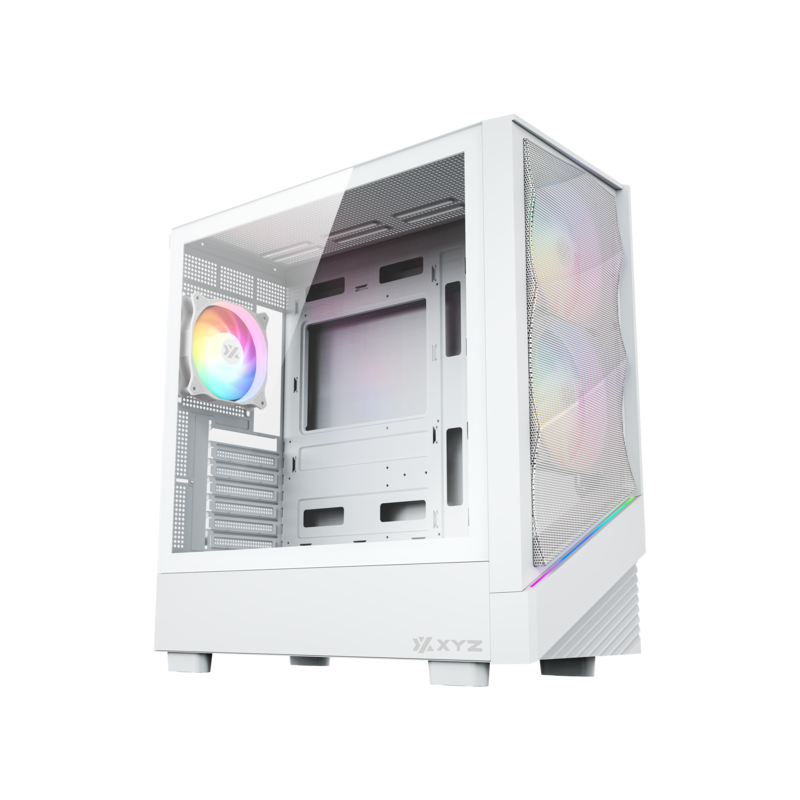

Tempered Glass Side Panel

with Sliding Design

A full-view side panel in tempered glass offers clear visibility of your components and lighting setup, with a smooth sliding mechanism and screwless front for quick access and refined presentation.

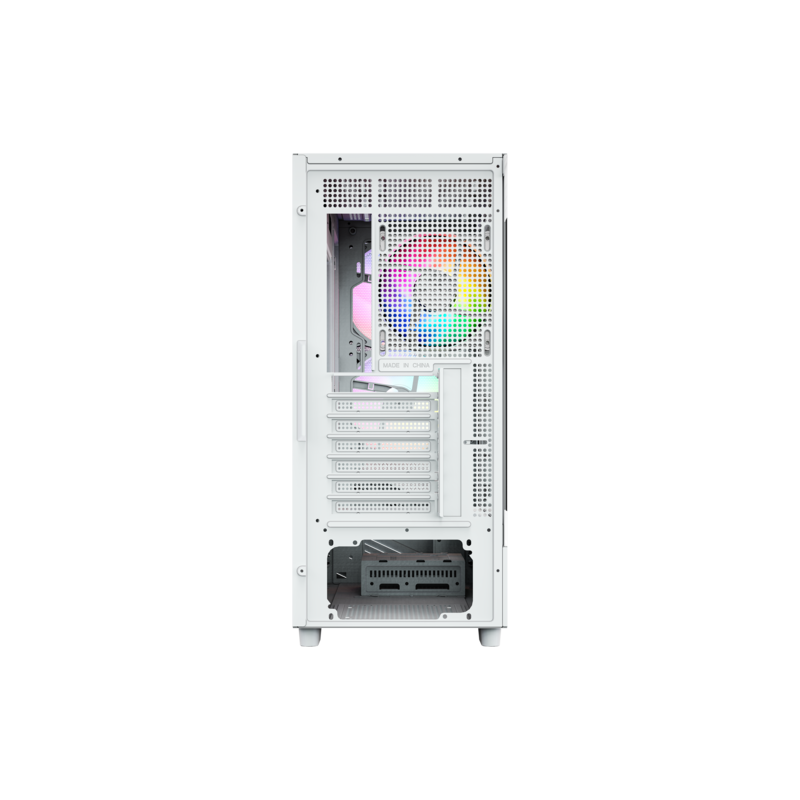

Triple A-RGB PWM FANS

Includes two 140mm front fans and one 120mm rear fan, delivering balanced airflow and vivid synchronized lighting with PWM and motherboard sync support (MB SYNC).

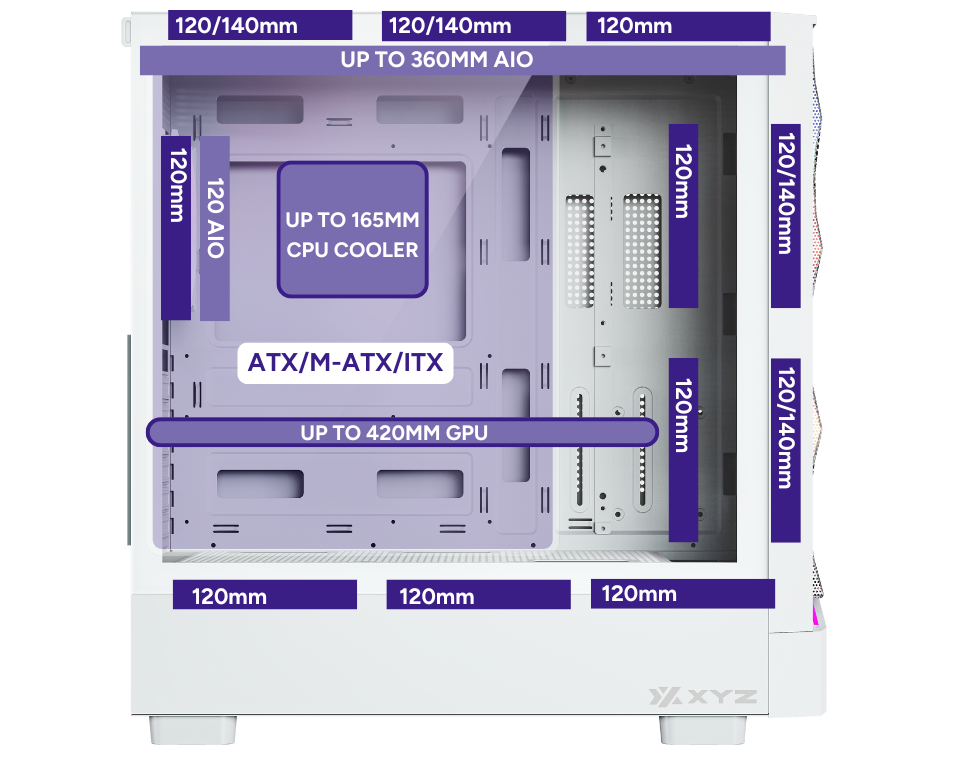

Advanced Cooling Compatibility

Supports up to 8 fans and multiple radiator options, including 360mm on the top and 120mm on the rear for high-performance air or liquid cooling configurations.

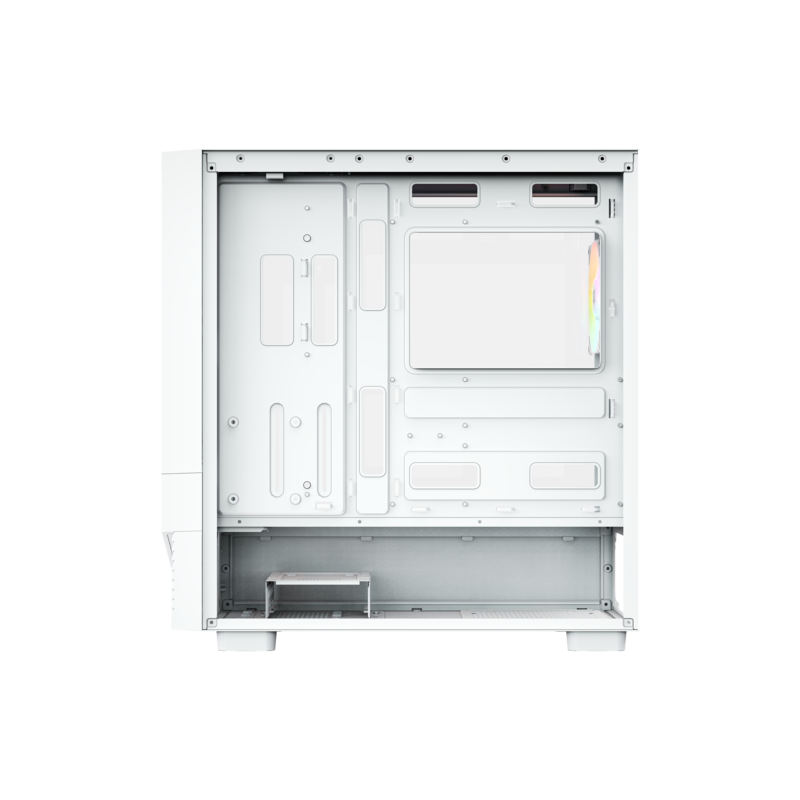

Spacious Interior & Hardware Support

Supports graphics cards up to 420mm (or 380mm with fans installed), CPU coolers up to 165mm, and standard ATX power supplies up to 200mm.

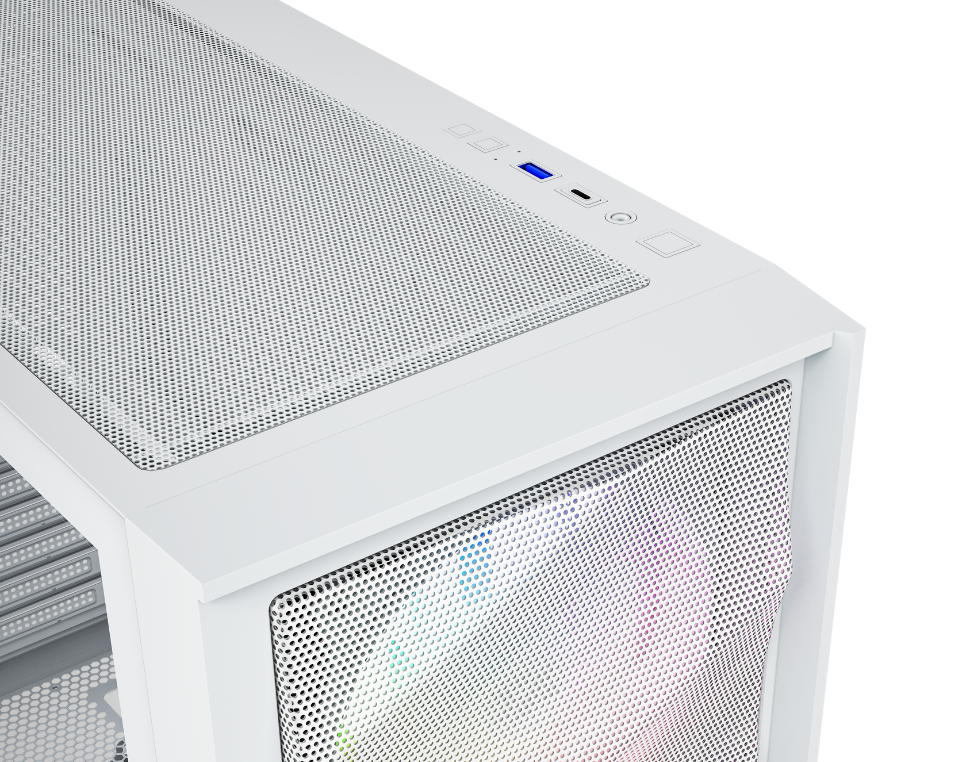

Modern Connectivity with USB Type-C Gen 2

The front I/O panel includes a Type-C Gen 2 port alongside USB 3.0 and audio ports, offering fast data transfer and versatile connectivity for modern peripherals.

Technical Specifications

XYZ AURORAX 100

Model: XYZ AIRWAVE 100
Structure Size: 468 × 215 × 495 mm (L × W × H)
Case Size: 468 × 215 × 495 mm (L × W × H)
Box Size: 550 × 270 × 500 mm (L × W × H)
Material: Steel, Tempered Glass, Mesh
Thickness: SPCC 0.5 mm | 0.6 mm, End Finish
Side Panel: Tempered glass (left side) with sliding design, screwless front
Motherboard Support: ATX / M-ATX / ITX
BTF Support: No
Cable Organizer: Yes, XYZ Velcro
Fan Support:
2 x 120mm (MBO Bracket)
3 x 120mm / 2 x 140mm (Top)
1 x 120mm (Rear)
3 x 120mm (Bottom)

Pre-installed Fans:
Front MB: 2 x AIRPULSE 100 140mm [REGULAR]
Rear: 1 x AIRPULSE 100 120mm [REGULAR]
Controller: Included, PWM + ARGB, MB SYNC
Radiator Support:
Top: 240/280/360mm
Rear: 120mm
Filters: Top / Bottom
Drive Bays: 1 x 3.5” + 2 x 2.5”
Power Supply: Standard ATX, max 200mm
Expansion Slots: 7
I/O Panel:
1 x USB 3.0
0 x USB 1.1
1 x Type-C Gen 2
1 x HD Audio In/Out
1 x Reset / 1 x LED Control
Max GPU Length: 420mm
Max CPU Cooler Height: 165mm

Avaliable Colors:
White
SKU | X-CS-AIRWAVE100-W
EAN | 6978262011567
Black
SKU | X-CS-AIRWAVE100-B
EAN | 6978262011574
