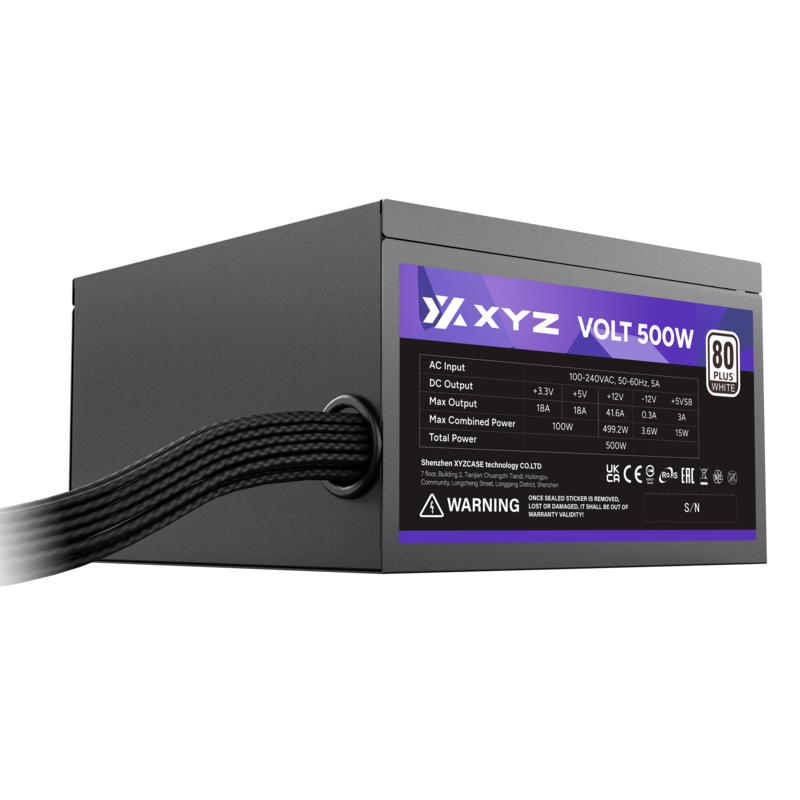

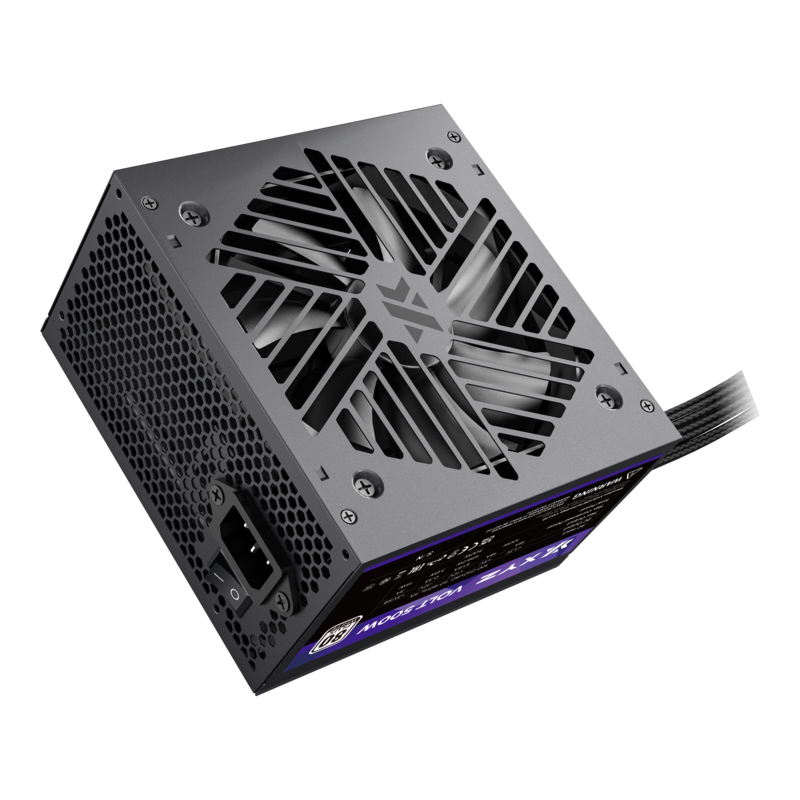

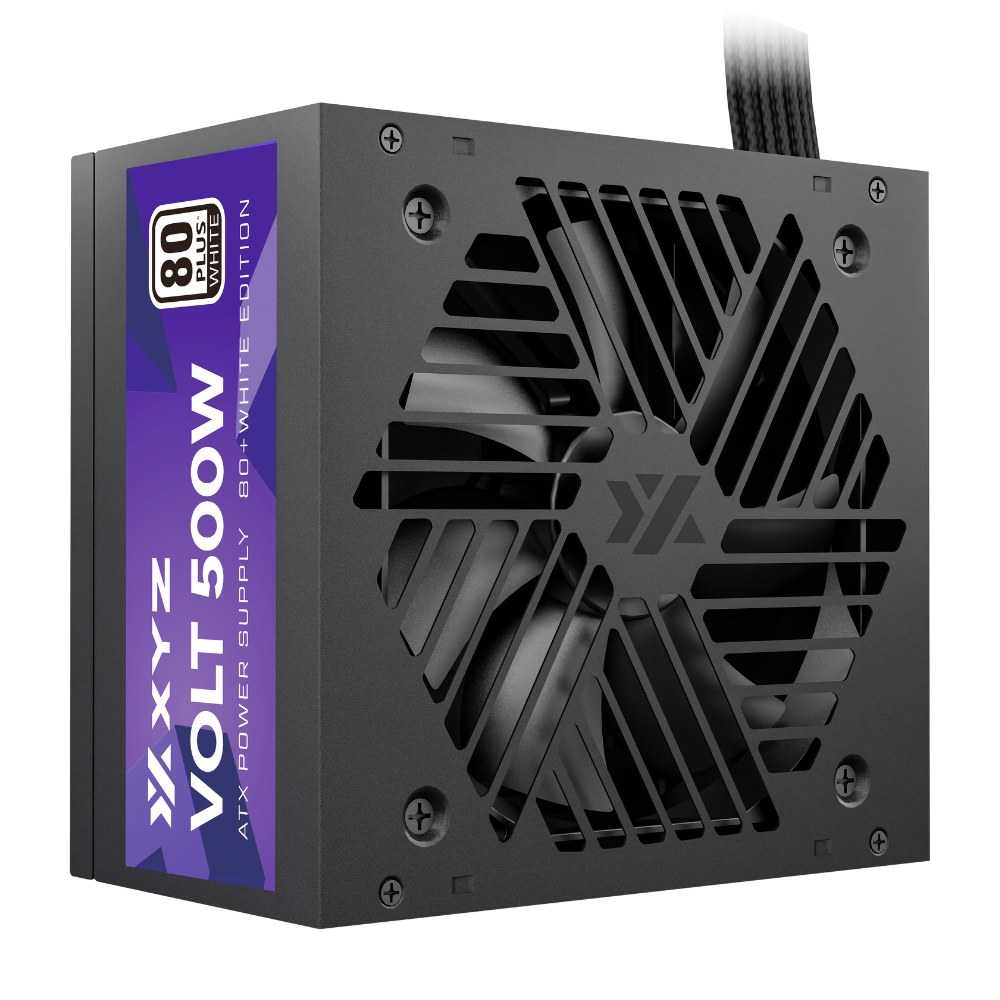

XYZ VOLT 500W 80+ WHITE

High efficiency at the best possible price

Power your system with confidence and efficiency using the XYZ VOLT 500W power supply. This high-quality PSU combines exceptional performance with an 80 PLUS White certification, ensuring reliable operation and low energy consumption. Its intelligent design and silent fan make it the ideal choice for any PC configuration.

  • 80 PLUS White Energy Efficiency: The 80 PLUS White certification The 80 PLUS White certification guarantees up to 80% energy efficiency at 100% load charge, resulting in lower power consumption and reduced heat generation, contributing to a cooler and quieter operation of your system.
  • Flat Cables for Optimal Cable Management: The included flat cables make cable organization and routing easier, improving airflow inside your PC and creating a cleaner and more professional look.
  • Active PFC for Increased Efficiency: The active power factor correction (Active PFC) improves the power supply’s energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.
  • High-Quality Teapo Capacitors: The high-quality Teapo capacitors guarantee a long lifespan and stable performance, even under demanding operating conditions.
  • Silent 120mm Fan: Enjoy quiet operation thanks to the 120mm fan that automatically adapts to the workload, keeping the power supply cool without generating unnecessary noise.

SKU | X-PS-VOLT-PW500
EAN | 6978262010515

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

80 PLUS White Energy Efficiency

The 80 PLUS White certification The 80 PLUS White certification guarantees up to 80% energy efficiency at 100% load charge, resulting in lower power consumption and reduced heat generation, contributing to a cooler and quieter operation of your system.

Flat Cables for Optimal Cable Management

The included flat cables make cable organization and routing easier, improving airflow inside your PC and creating a cleaner and more professional look.

Active PFC for Increased Efficiency

The active power factor correction (Active PFC) improves the power supply’s energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.

High-Quality Teapo Capacitors

The high-quality Teapo capacitors guarantee a long lifespan and stable performance, even under demanding operating conditions.

Silent 120mm Fan

Enjoy quiet operation thanks to the 120mm fan that automatically adapts to the workload, keeping the power supply cool without generating unnecessary noise.

Technical Specifications

Model:XYZ VOLT 500W

Wattage:500W

Certification:80 PLUS White

Form Factor:ATX

Fan:120mm silent fan

Cables:Flat (black)

AC Input:Full range 110V-230V~, 50/60Hz, 6A

DC Outputs:

+3.3V: 20A

+5V: 15A

+12V1: 18A

+12V2: 18A

-12V: 0.3A

+5VSB: 2.5A

Combined Maximum Power:600W

Connectors:

1 x 24(20+4)-pin ATX connector for motherboard (550mm)

1 x 8(4+4)-pin (12V) EPS connector for CPU (600mm)

2 x 6+2 pin PCI-e connectors for graphics cards

5 x SATA connectors for peripheral devices

2 x Molex connectors for peripheral devices

Dimensions:150 mm (L) x 140 mm (W) x 86 mm (H)

Weight:1.63 kg (approx)

Certifications:EAC, CE, CB, FCC

MTBF:100,000 hours

Safety Features:OCP, UVP, OVP, SCP, OPP, OTP

Operating Temperature:0-40°C @ full load, 10-90% RH

Storage Temperature:-20°C to 80°C, 5-90% RH

Operating Altitude:≤5000 meters

Storage Altitude:≤15250 meters

Hi-Pot Test:

AC 1500V input to ground: 1 second

DC 1500V input to output: 1 second

DC 500V output to ground: 1 second

Grounding Resistance:<0.1Ω Insulation Resistance:>50MΩ at DC 500V between AC input and ground
