XYZ PHANTOM 700W A-RGB 80+ BRONZE

Illuminate your system with energy efficiency

Unleash the full potential of your system with the XYZ PHANTOM 700W power supply. This high-performance PSU delivers reliable and efficient power, with a sleek design and a silent ARGB fan that will add a touch of style to your PC.

Efficient Power: The 80 PLUS Bronze certification guarantees up to 82% energy efficiency at 100% load, reducing power consumption and heat generation, contributing to a cooler and quieter operation of your system.
Superior Performance: DC-DC technology provides precise and stable voltage regulation, ensuring reliable operation for your critical components.
Flat Cables: The flat cables make cable management easier and improve airflow inside your PC, keeping everything organized and optimized.
Active PFC: The active power factor correction (Active PFC) improves the power supply’s energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.
Silent 120mm A-RGB Fan: Enjoy quiet operation and customizable lighting with the 120mm ARGB fan. Synchronize the lighting effects with your motherboard and other compatible components to create a unique ambiance.

SKU | X-PS-PHANTOM-PBR700
EAN | 6905290204166

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

Efficient Power

The 80 PLUS Bronze certification guarantees up to 82% energy efficiency at 100% load, reducing power consumption and heat generation, contributing to a cooler and quieter operation of your system.

Flat Cables for Optimal Cable Management

DC-DC technology provides precise and stable voltage regulation, ensuring reliable operation for your critical components.

Active PFC

The active power factor correction (Active PFC) improves the power supply’s energy efficiency, reduces harmonic distortion, and ensures a stable and reliable power supply.

Superior Performance

DC-DC technology provides precise and stable voltage regulation, ensuring reliable operation for your critical components.

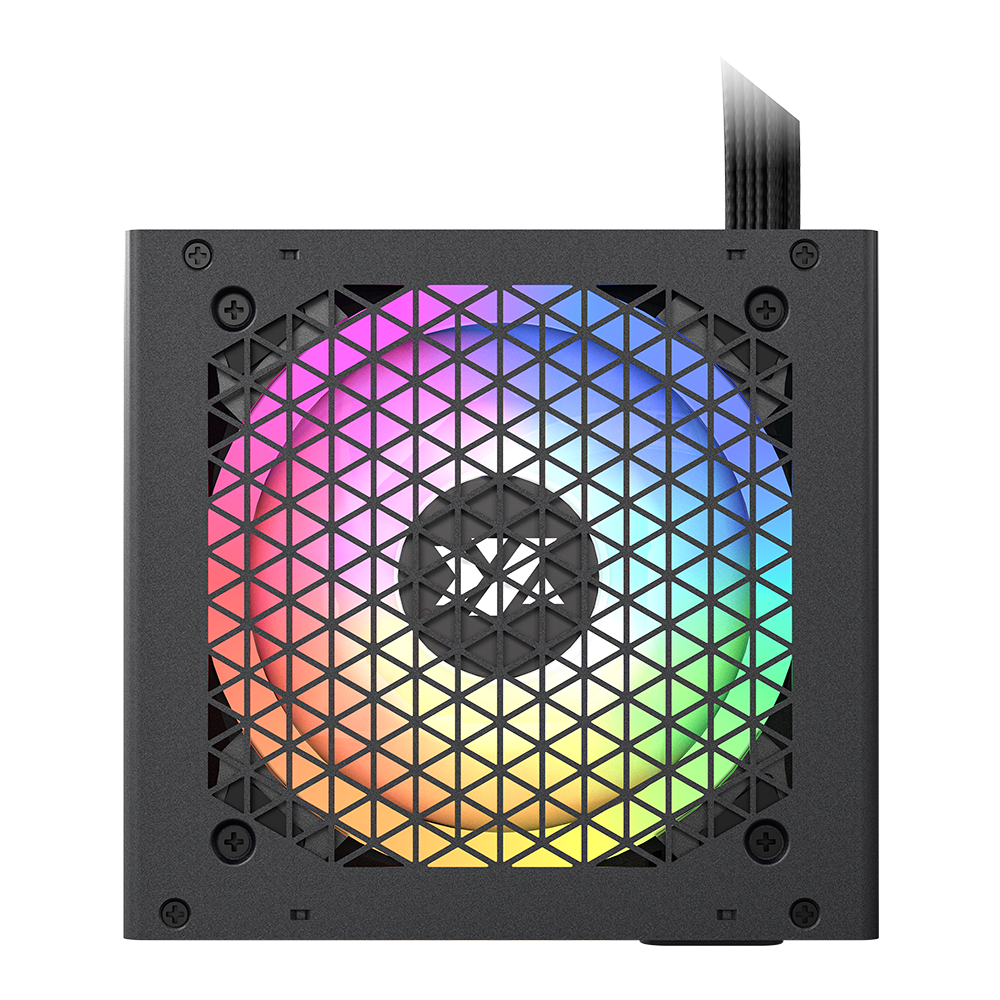

Silent 120mm A-RGB Fan

Enjoy quiet operation thanks to the 120mm fan that automatically adapts to the workload, keeping the power supply cool without generating unnecessary noise.

Technical Specifications

Model: XYZ PHANTOM 700W

Wattage: 700W

Certification: 80 PLUS Bronze (up to 82% efficiency at 100% load)

Technology: DC-DC

Form Factor: ATX

Fan: 120mm silent ARGB fan

Cables: Flat (black)

Dimensions: 150 x 140 x 86 mm (L x W x H)

AC Input: 100-230VAC, 10-5A, 50-60Hz

DC Outputs:

+3.3V: 16A

+5V: 16A

+12V: 54A

-12V: 0.3A

+5VSB: 3A

Combined Maximum Power: 700W

Connectors:

1 x 24-pin (20+4) ATX connector for motherboard (650mm)

1 x 8-pin (4+4) EPS connector for CPU (600mm)

1 x PCI-E (6+2)-pin (650mm)

1 x PCI-E (6+2)-pin (500mm) to (6+2) (150mm)

3 x IDE (550mm)

6 x SATA (550mm)

2 x 4-Pin Peripheral (650mm)

Certifications: EAC, CE, CB, FCC

MTBF: 100,000 hours

Safety Features: OCP, UVP, OVP, SCP, OPP, OTP

Operating Temperature: 0-40°C @ full load, 10-90% RH

Storage Temperature: -20°C to 80°C, 5-90% RH

Operating Altitude: ≤5000 meters

Storage Altitude: ≤15250 meters

Hi-Pot Test:

AC 1500V input to ground: 1 second

DC 1500V input to output: 1 second

DC 500V output to ground: 1 second

Grounding Resistance: <0.1Ω Insulation Resistance: >50MΩ at DC 500V between AC input and ground
