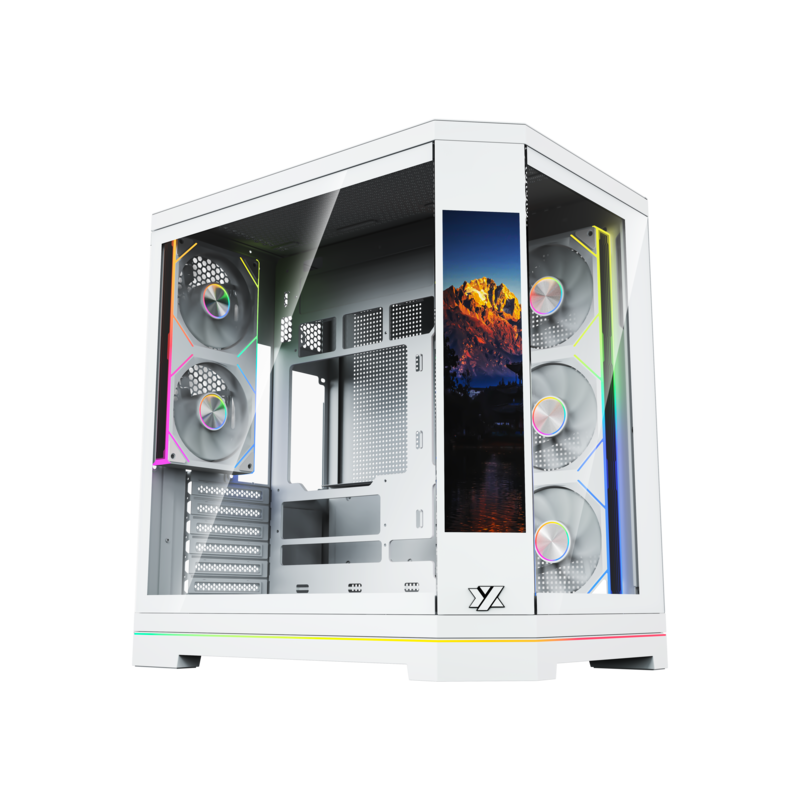

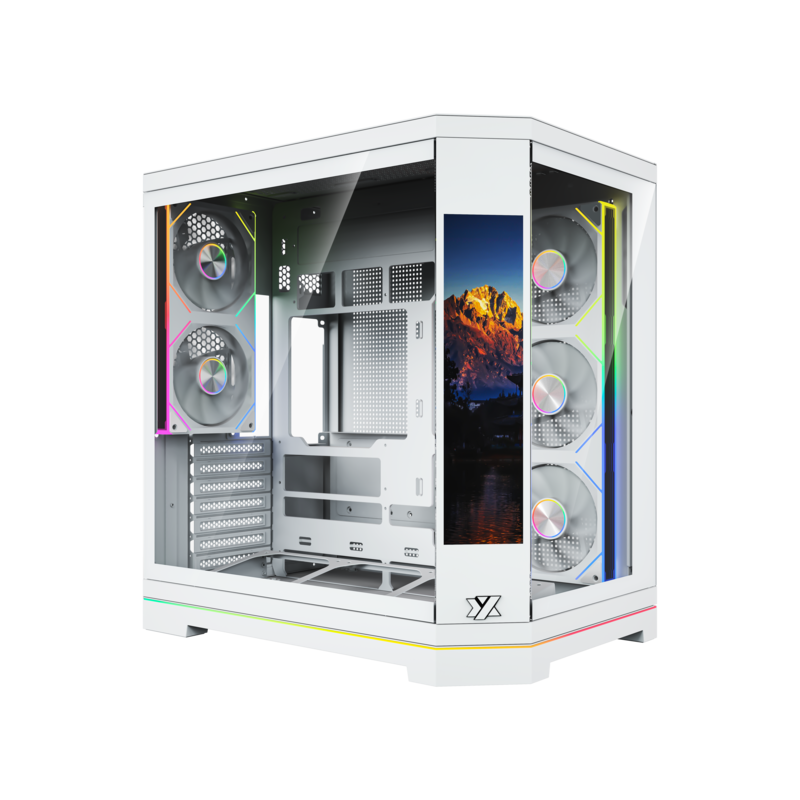

XYZ NEUTRON X PRO

The perfect dual-chamber design combined with cutting-edge technology and a new LCD screen

The XYZ NEUTRON X PRO represents the next level of innovation in PC case design, combining premium aesthetics, intelligent display functionality, and high-performance cooling.
Equipped with a 9.1” smart display powered by XYZ Software, it allows full customization from system monitoring dashboards and animated wallpapers to user-selected videos, GIFs, and personalized visual themes.
With five VORTEX 120mm A-RGB PWM fans, an integrated PWM + ARGB MBSYNC controller, and full BTF motherboard compatibility, the NEUTRON X PRO delivers advanced cooling, perfect cable management, and unmatched visual impact for professional and gaming setups alike.

• 9.1” Smart Screen with XYZ Software
Fully integrated smart display controlled via XYZ Software, allowing total customization of images, videos, animations, widgets, and performance data in real time in addition to the possibility of having your desktop on this same screen thanks to its dual interface
Personalize your case display with dashboards, reactive themes, or live system stats — designed to make your setup truly unique.
• Panoramic Dual-Chamber Structure
Steel frame and dual tempered glass panels provide a wide panoramic view while isolating the PSU and cables in a secondary chamber for maximum airflow and organization.
• Full BTF Motherboard Support
Compatible with rear-connector (BTF) motherboards for a completely clean, cable-free presentation.
• High-Performance Cooling System
Pre-installed with 5 VORTEX 120mm A-RGB PWM fans offering optimized pressure and silent operation (18.5–30.3 dB[A]) with high airflow up to 48.69 CFM.
• Integrated PWM + ARGB Controller
Synchronizes lighting and fan speeds with motherboard ecosystems such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock Polychrome.
• Adjustable GPU Airflow Bracket
Multi-level adjustable bracket at the bottom allows you to direct airflow toward the GPU, improving thermal balance and cooling performance in demanding configurations.

SKU | X-CS-NEUTRONX-P-W
EAN | 6978262012007

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

High-Efficiency Cooling System

Pre-installed with 5 VORTEX 120mm A-RGB PWM fans optimized for pressure and airflow, offering quiet cooling with a noise level between 18.5–30.3 dB(A).

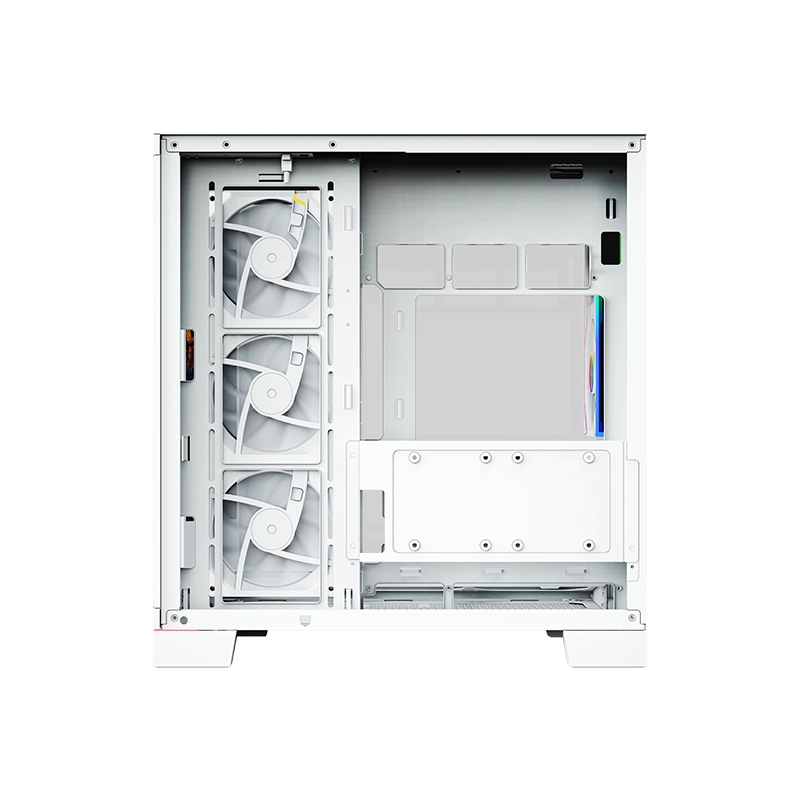

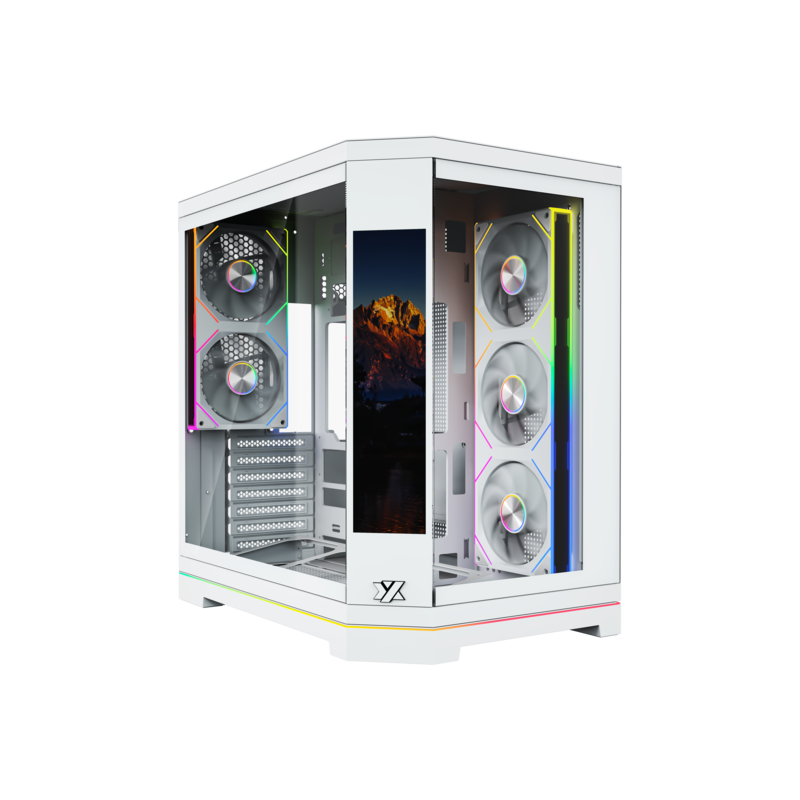

Panoramic Dual-Chamber Design

Tempered glass on the front and side panels provides a full, unobstructed view of internal components, while the dual-chamber layout separates PSU and cables for a cleaner build.

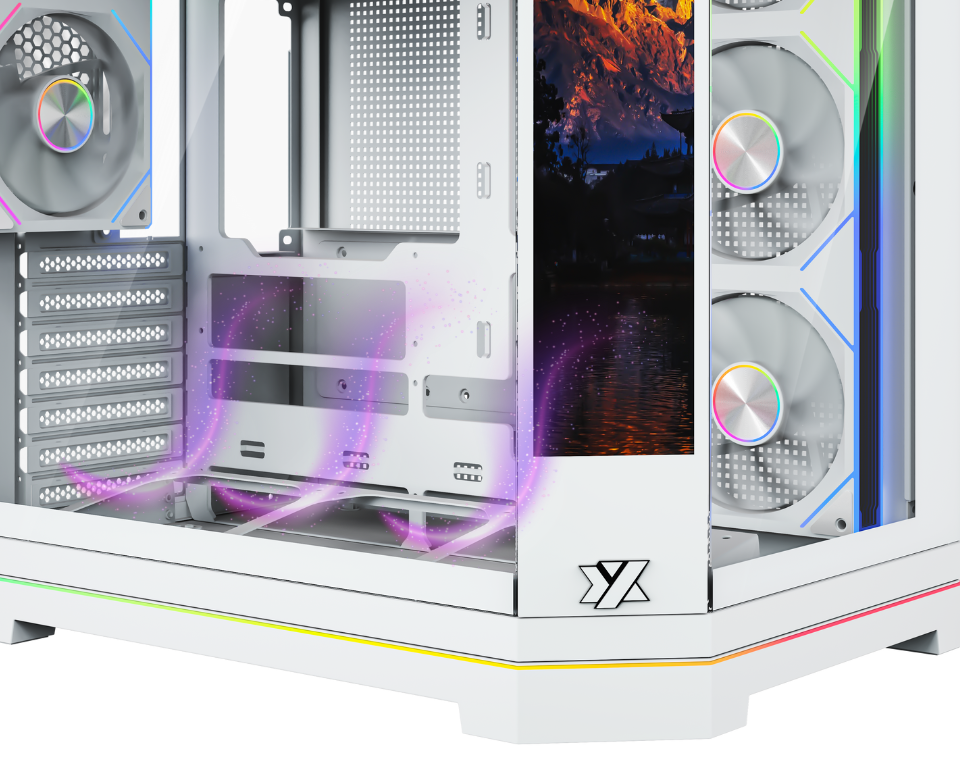

Adjustable GPU Airflow Bracket

Includes a bottom multi-position bracket allowing users to redirect airflow directly toward the GPU for improved temperature balance and cooling performance.

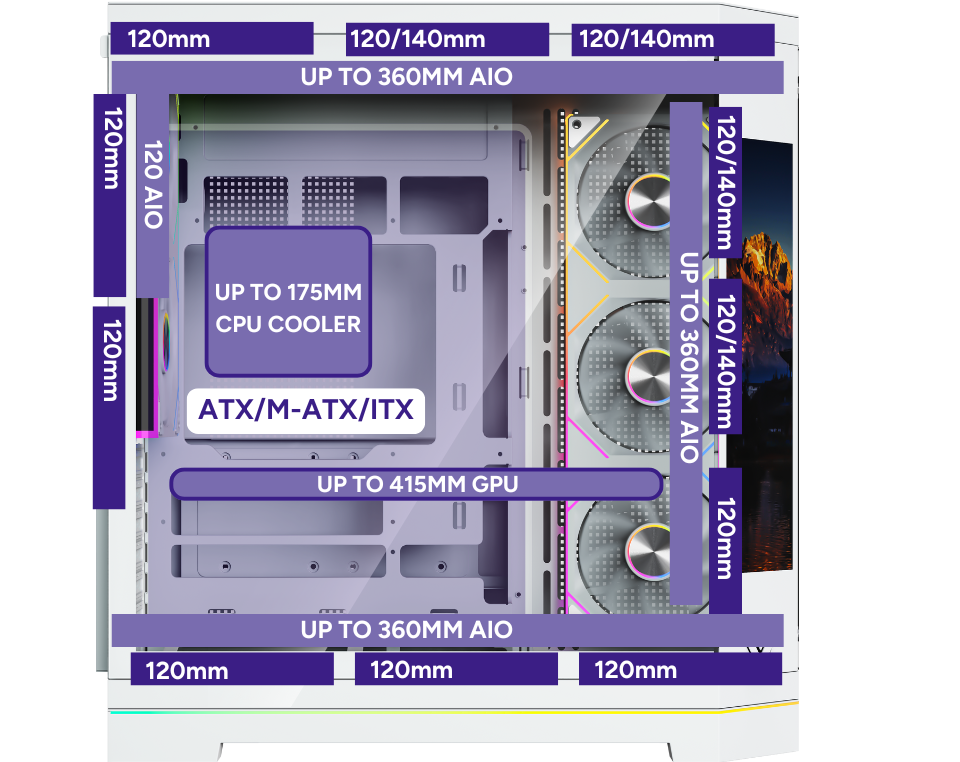

Full BTF Motherboard & Extreme Compatibility

Designed for next-generation rear-connector motherboards, providing seamless cable management and a cable-free front chamber. It also includes compatibility with all types of 360mm radiators in various positions and with extreme GPUs up to 415mm.

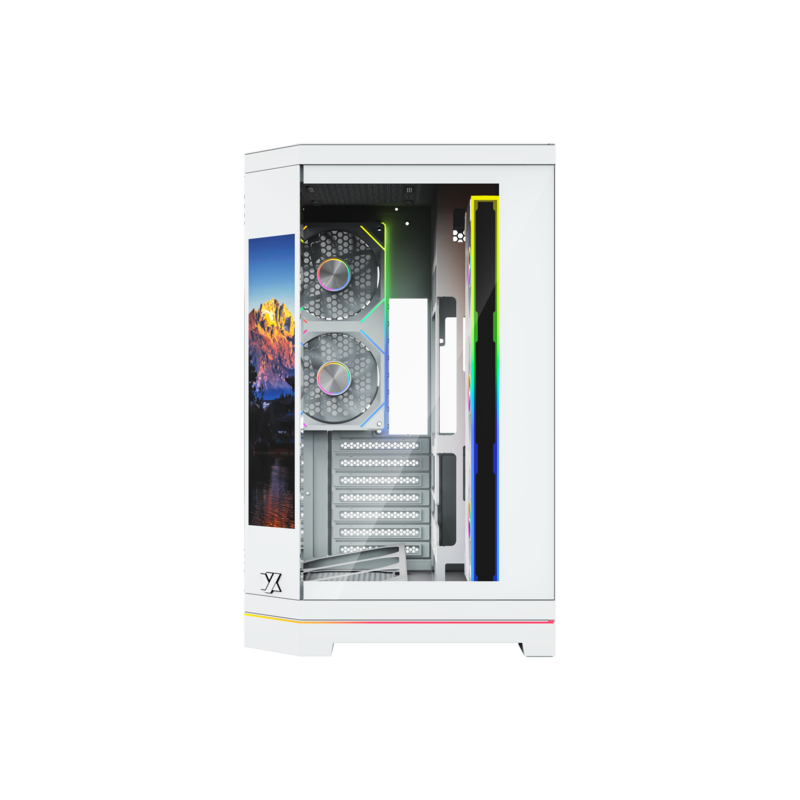

9.1” Smart Screen with XYZ Software

Fully integrated smart display controlled via XYZ Software, allowing total customization of images, videos, animations, widgets, and performance data in real time in addition to the possibility of having your desktop on this same screen thanks to its dual interface
Personalize your case display with dashboards, reactive themes, or live system stats — designed to make your setup truly unique.

Integrated PWM + ARGB Controller

Synchronize lighting and fan speed with popular motherboard ecosystems such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock Polychrome. It also features state-of-the-art Type C GEN2 + USB 3.0 connectivity.

Technical Specifications

XYZ NEUTRON X PRO

Structure Size: 418 × 280 × 410 mm
Dimensions: 424 × 285 × 412 mm
Box Size: 464 × 350 × 512 mm
Material: Steel, Tempered Glass, ABS
Side Panel: Tempered glass + Mesh with Airflow Openings
Motherboard Compatibility: ATX / M-ATX / ITX / BTF
BTF Support: Yes

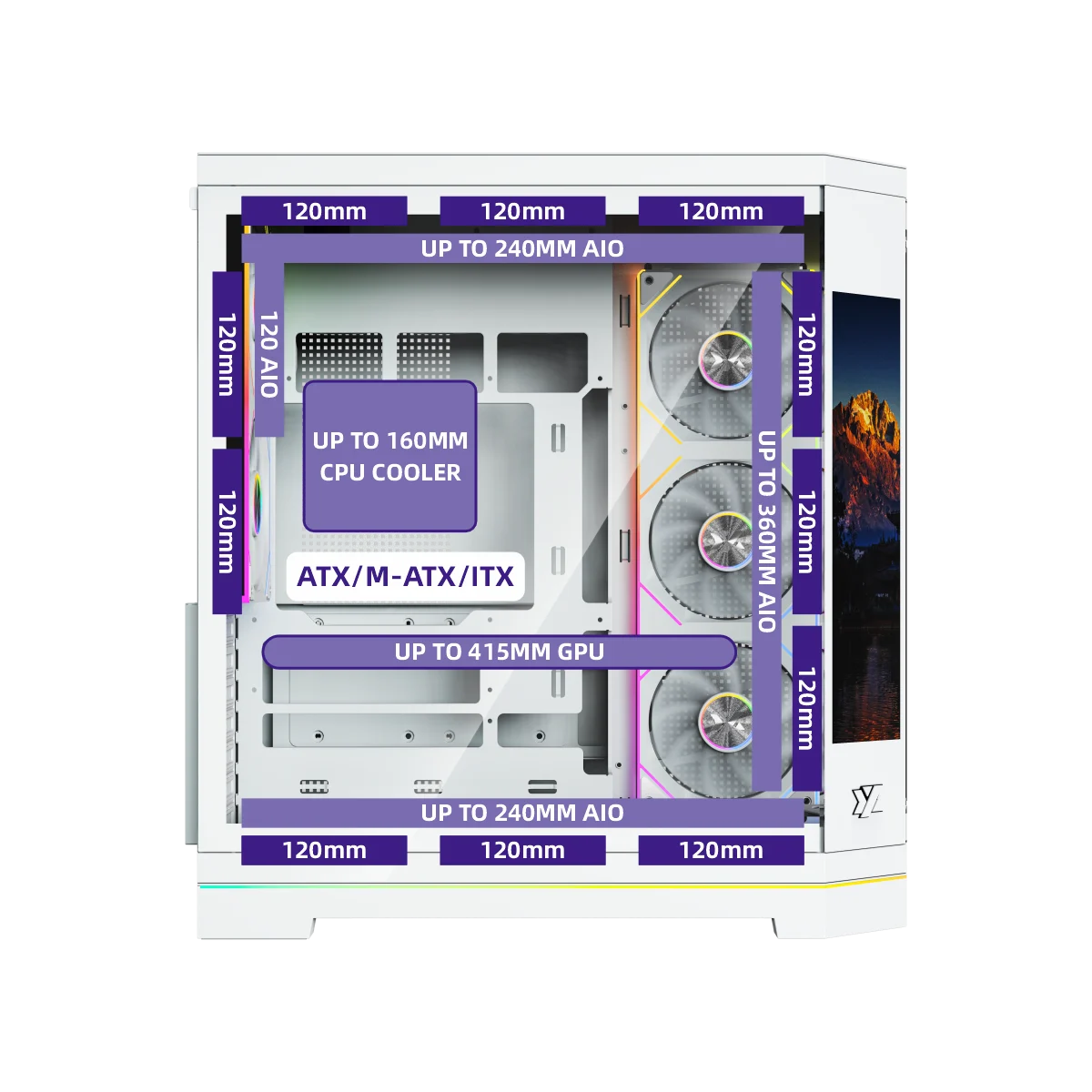

Total Possible Fans:
3 × 120 mm (Bottom)
3 × 120 mm / 2 × 140 mm (Top)
2 × 120 mm / 2 × 140 mm (Front)
2 × 120 mm (Rear)
Pre-installed Fans: 5 × VORTEX 120 mm A-RGB PWM
MBO Bracket: 3 × 120 mm (Reversed)
Rear: 2 × 120 mm (Regular)
Controller: PWM + ARGB MBSYNC

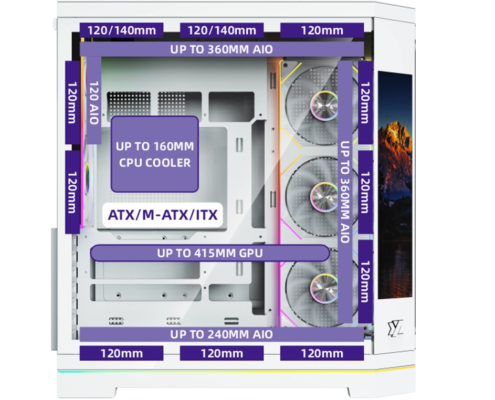

Radiator Compatibility
Top: 1 × 360 / 280 / 240 mm
Front: 1 × 360 / 280 / 240 mm
Bottom: 1 × 360 / 280 / 240 mm (with removable fan bracket)
Rear: 1 × 120 mm

Storage & Expansion
Drive Bays: 1 × 3.5” / 2 × 2.5”
Power Supply: Standard ATX
Horizontal PCI-E Slots: 7
Vertical PCI-E Slots: No

Integrated Smart Display
Size: 9.1”
Connection: USB internal
Software: XYZ Display Software (included)
Features:
Custom wallpapers, videos, GIFs, widgets, and visual themes
Real-time system monitoring (CPU, GPU, RAM, temperature)
Music and media display options
Dual screen software or a new screen directly in your PC

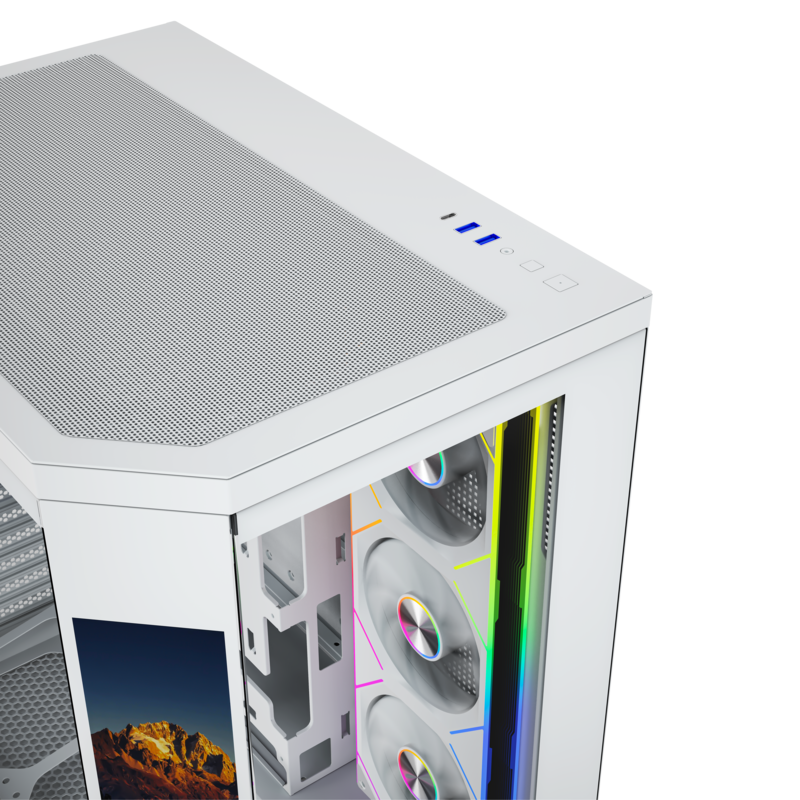

I/O Panel
2 × USB 3.0
1 × USB Type-C
1 × HD Audio In/Out
1 × Reset / RGB Switch

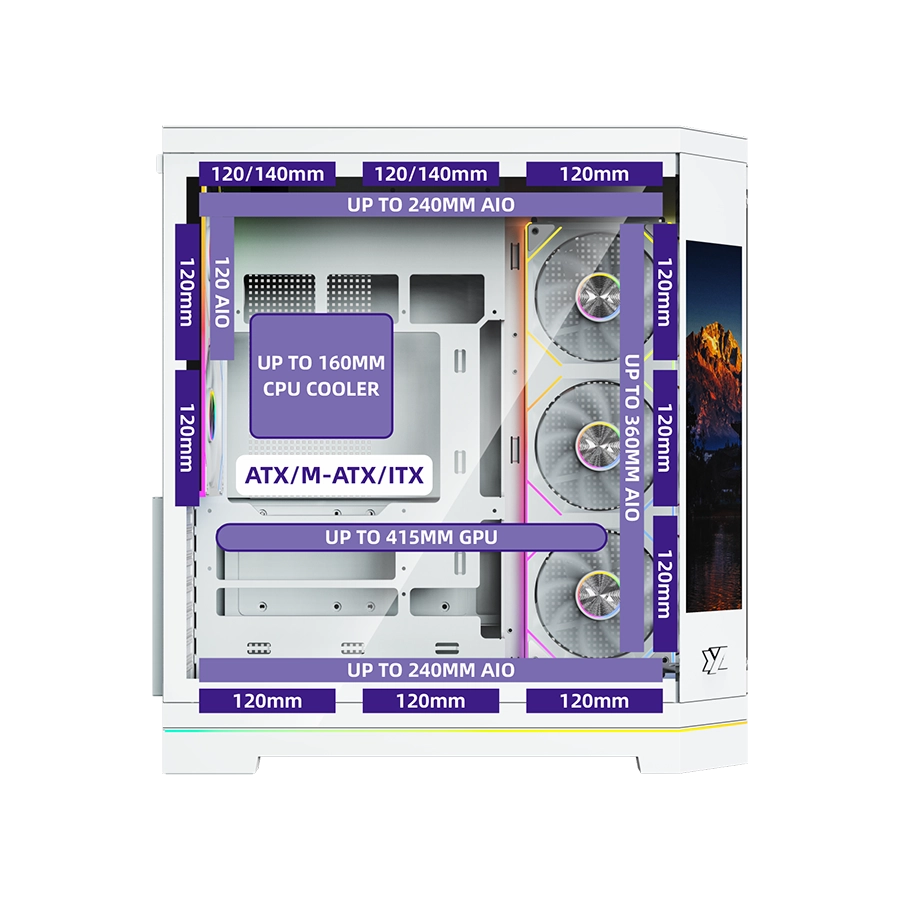

Hardware Compatibility
Max GPU Length: 415 mm
Max CPU Cooler Height: 160 mm
Max PSU Length: 165 mm

Available Colors
Black: X-CS-NEUTRONX-P-B
White: X-CS-NEUTRONX-P-W

VORTEX 100 120mm ARGB PWM

Dimensions: 120 × 120 × 27 mm
Bearing Type: Hydraulic Bearing
Fan Speed: 600–1800 RPM ±10%
Airflow: 17.95–48.69 CFM
Air Pressure: 0.39–1.59 mmH₂O
Noise Level: 18.5–30.3 dB(A)
Connector: 3-pin 21T1
Rated Voltage: 12V DC
Rated Current: 0.22A
Power Consumption (Fan): 2.64W
