XYZ AIRONE 60 MESH

Exceptional value and efficiency at the most cost-effective ratio

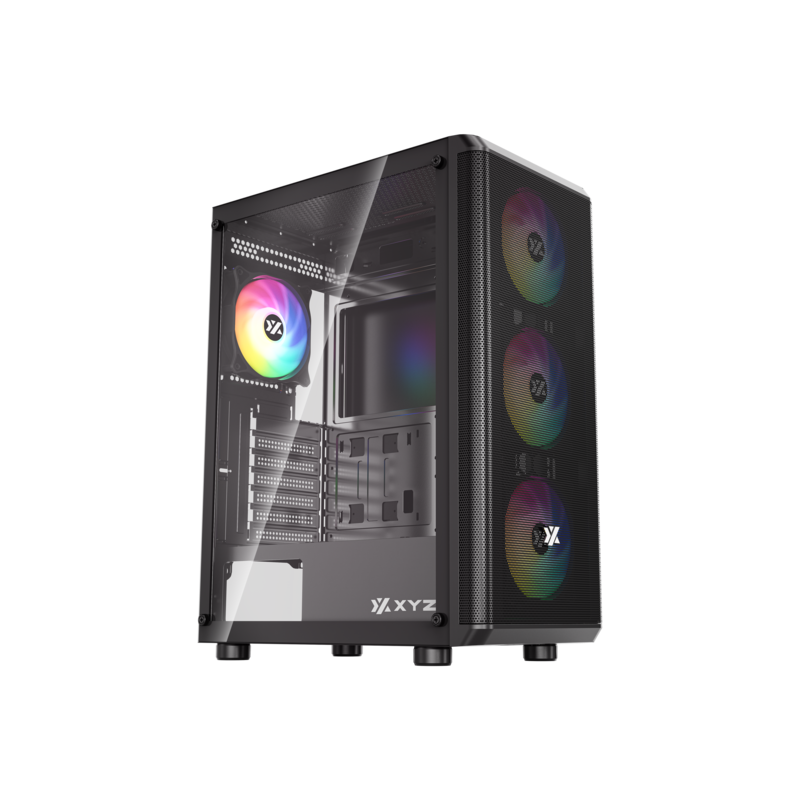

XYZ AIRONE 60 is the ideal choice for those seeking a compact and elegant case with outstanding airflow. Its front mesh design, combined with four pre-installed AIRPULSE 100 A-RGB fans, ensures efficient cooling and a modern aesthetic. Compatible with ATX motherboards and equipped with USB 3.0, it’s ready for both gaming and professional builds with stable and quiet performance.

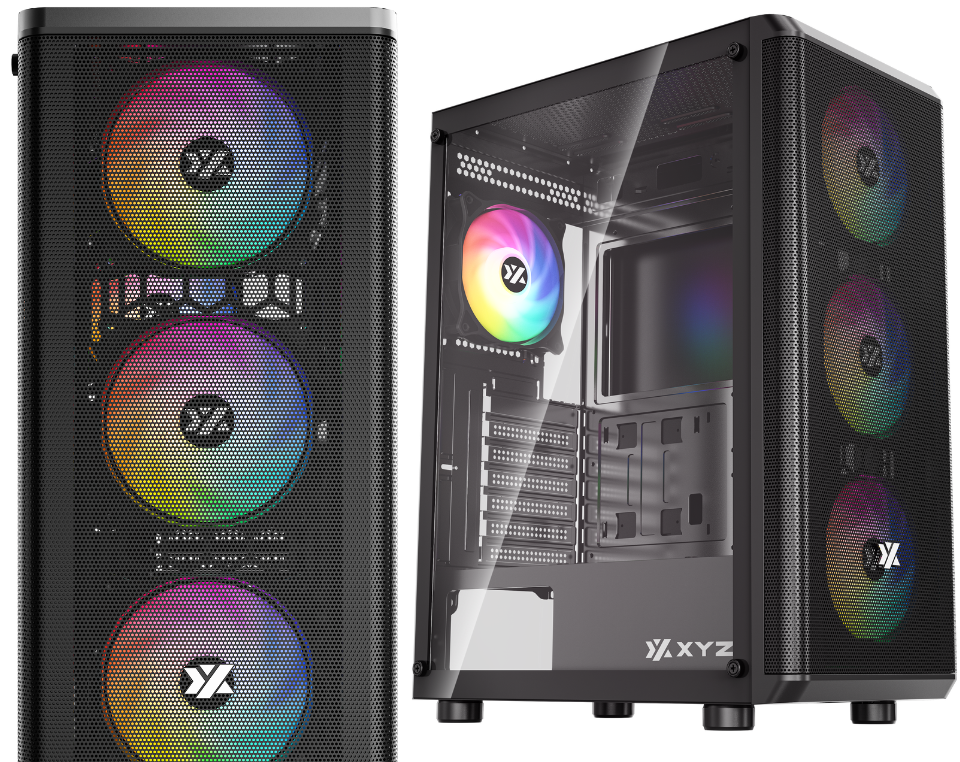

• High-Airflow Front Mesh Design: The full mesh front panel allows for direct and efficient air intake, keeping your system cool under load.
• 4x AIRPULSE 100 A-RGB Fans Included: Three front 120 mm fans and one rear fan deliver vibrant lighting and quiet cooling, with hydraulic bearing technology and optimized air pressure design.
• Compact Format with ATX Support: Despite its reduced footprint, it supports ATX, Micro-ATX, and ITX motherboards, as well as GPUs up to 300 mm in length and CPU coolers up to 165 mm in height.
• Modern Connectivity: Includes one USB 3.0 port, two USB 2.0 ports, HD Audio, and an RGB switch/reset button on the front panel for quick and functional access.
• Liquid Cooling Ready: Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

SKU | X-CS-AIRONE60-M-B
EAN | 6978262011826

Variation

BLACK WHITE
VIEW SPECIFICATIONS FIND RETAILER

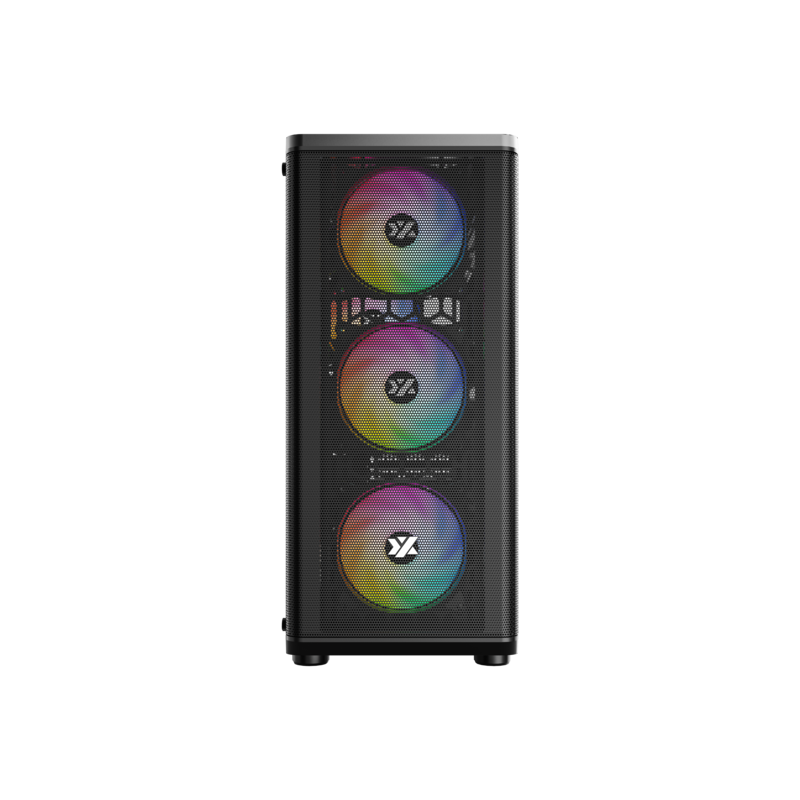

High-Airflow Front Mesh Design

The full mesh front panel allows for direct and efficient air intake, keeping your system cool under load.

Liquid Cooling Ready

Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

4x AIRPULSE 100 A-RGB Fans Included

Three front 120 mm fans and one rear fan deliver vibrant lighting and quiet cooling, with hydraulic bearing technology and optimized air pressure design.

Compact Format with ATX Support

Despite its reduced footprint, it supports ATX, Micro-ATX, and ITX motherboards, as well as GPUs up to 300 mm in length and CPU coolers up to 165 mm in height.

Liquid Cooling Ready

Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

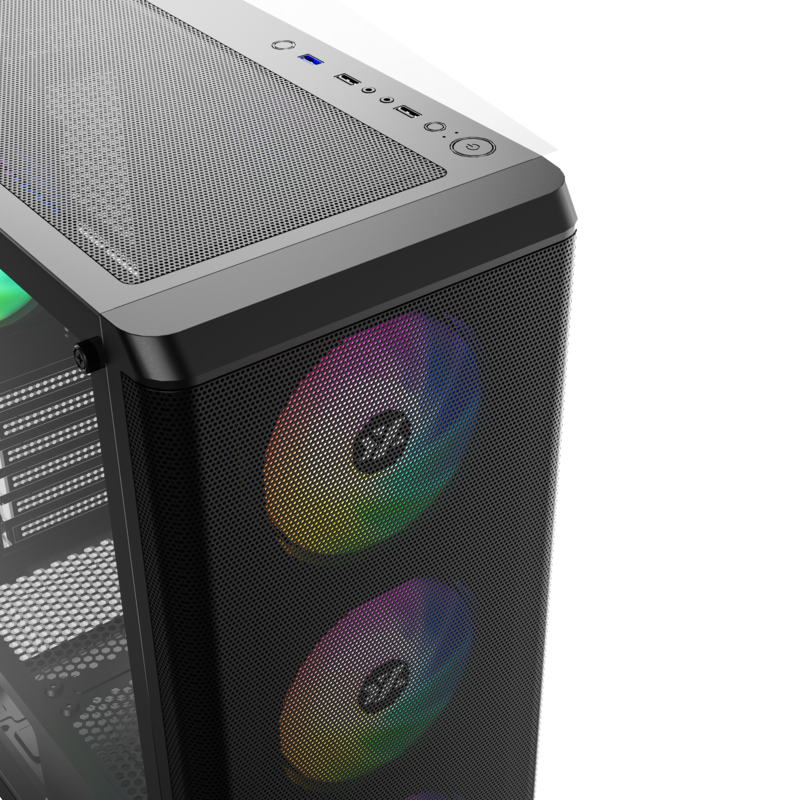

Modern Connectivity

Includes one USB 3.0 port, two USB 2.0 ports, HD Audio, and an RGB switch/reset button on the front panel for quick and 120 mm at the rear allows full cooling flexibility.

Technical Specifications

XYZ AIRONE 60 MESH

Chassis Dimensions: 330 x 212 x 470 mm
Total Dimensions: 365 x 212 x 470 mm
Box Size: 531 x 269 x 440 mm
Material: Steel, tempered glass, ABS (0.6 mm thickness)

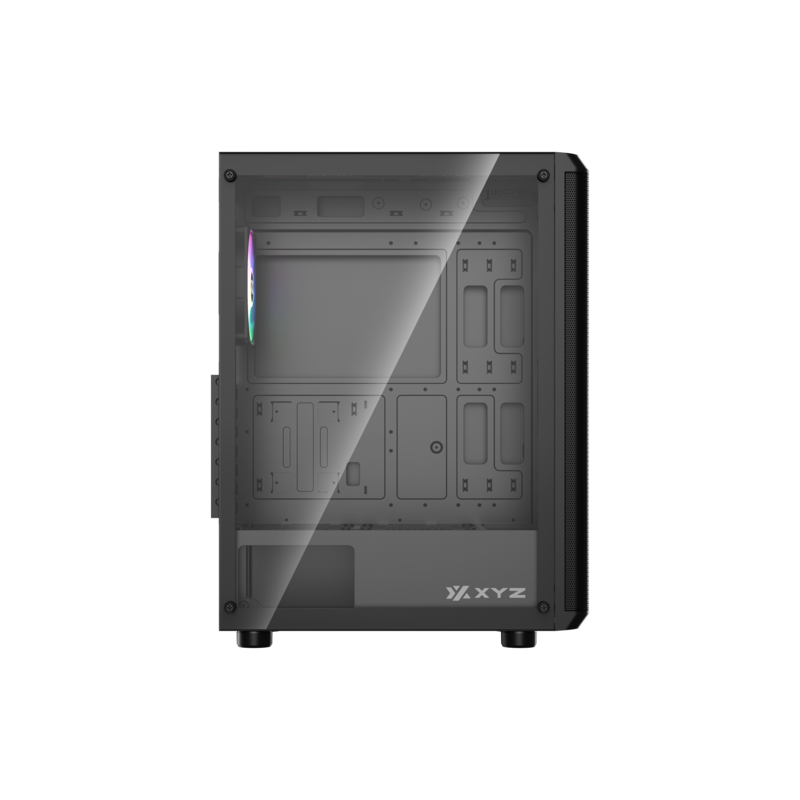

Side Panel: Tempered glass with 4 screws
Color: Black
Motherboard Support: ATX / Micro-ATX / ITX
PCI Expansion Slots: 7 horizontal, 0 vertical
Drive Bays: 1 x 3.5”/2.5”, 2 x 2.5”
Max GPU Length: 300 mm
Max CPU Cooler Height: 165 mm
Power Supply: Standard ATX
Controller Included: No (ARGB switch only, no PWM and includes MB SYNC support)

Pre-installed Fans:
3 x 120 mm front AIRPULSE 100 A-RGB
1 x 120 mm rear AIRPULSE 100 A-RGB
Fan Placement:
Front: 3 x 120 mm
Rear: 1 x 120 mm

Total Fan Support:
Front: 3 x 120 mm or 3 x 140 mm
Top: 2 x 120 mm or 2 x 140 mm
Rear: 1 x 120 mm
Radiator Compatibility:
Front: 1 x 360 mm
Top: 1 x 280/240 mm
Rear: 1 x 120 mm
Dust Filters: Front / Top / Bottom
I/O Pannel:
1 x USB 3.0
2 x USB 2.0
1 x HD Audio In/Out
1 x Reset / RGB Switch Button

Available Colors:

SKU | X-CS-AIRONE60-M-W
SKU | X-CS-AIRONE60-M-B

AIRPULSE 100 A-RGB Fan Specifications

Dimensions: 120 x 120 x 25 mm
Rated Voltage: DC 12V
Rated Current: 141 mA ±10%
Operating Voltage: DC 5–13.8V
Start-up Voltage: ≥5V
Speed: 1100 RPM ±10%
Power Consumption: 1.6W
Bearing Type: Hydraulic
Airflow: 32.5 CFM
Air Pressure: 1.10 mmH₂O
Noise Level: 25.3 dBA
MTTF: ≥40,000 hours (at 25 °C)
